HV Cable Transition Towers: A Collection of Design Possibilities

Transmission Structures

Cable transition transmission towers are usually of special interest since they offer a broad range of different design and equipment possibilities. Since these structures often adjoin public areas, visual impact has taken on growing relevance, especially given that cable terminations are comparatively bulky objects to place in elevated positions. Security against risk of explosive failure is even more important, which has been driving more such installations toward composite-housed terminations. INMR presents a collection of cable transition tower designs to illustrate some of the different solutions adopted worldwide.

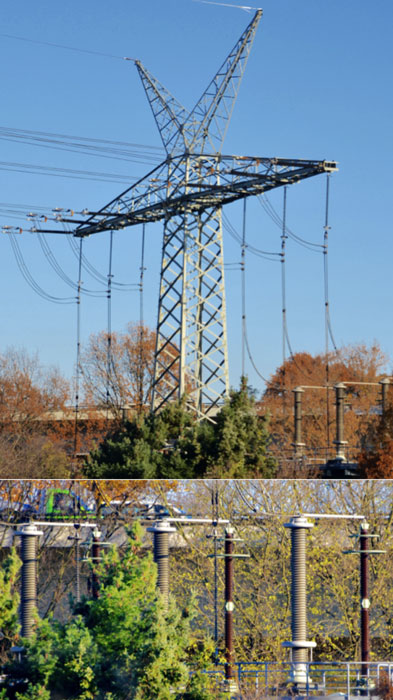

Monumental cable transition structure near Berlin highway overpass.
CLICK TO ENLARGE

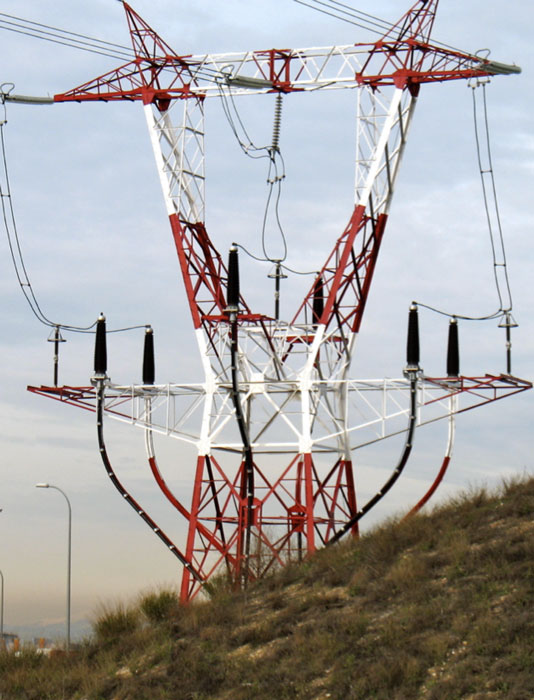

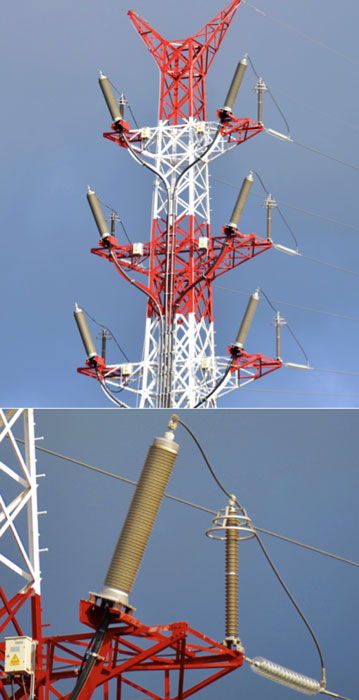

Eye-catching cable transition towers in northern Spain. Past (top) and present solutions.
CLICK TO ENLARGE

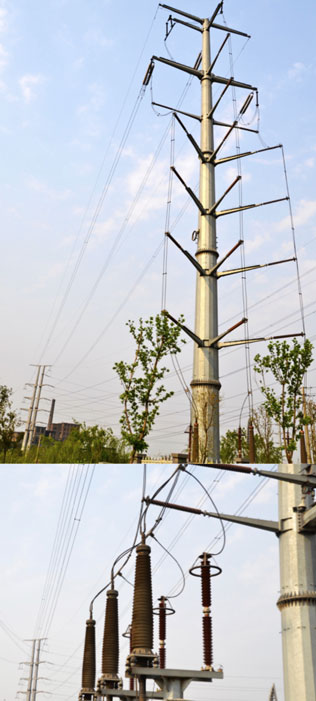

Stylistic cable transition tower in eastern China.
CLICK TO ENLARGE
Minimalistic cable transition tower in southwest United States.
CLICK TO ENLARGE

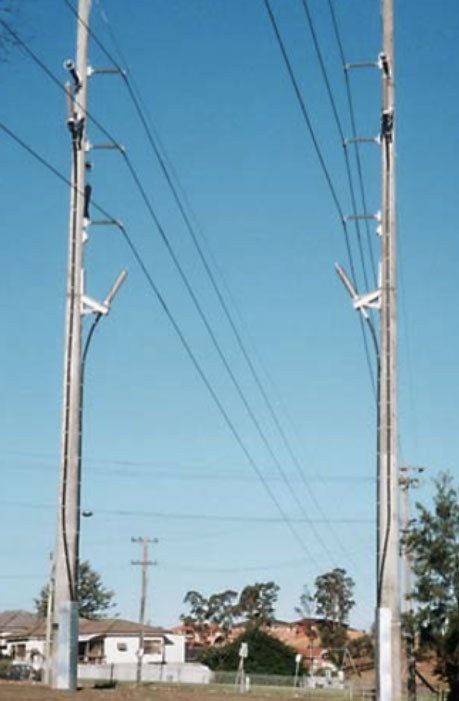

Sensitively located cable transition towers in Australia.
CLICK TO ENLARGE
Discrete cable transition tower in Switzerland.
CLICK TO ENLARGE
Futuristic cable transition tower in South Korea.
CLICK TO ENLARGE
Sleek cable transition tower in north China.
CLICK TO ENLARGE
Compact, highly aesthetic cable transition tower in Switzerland.
CLICK TO ENLARGE
