One-hour west from Kunming, the capital of China’s Yunnan Province, lies an agricultural area of rolling hills and rivers where most homes and buildings feature murals of dinosaurs. The reason for these depictions is that this valley is famous as a rich source of fossils from the Jurassic age. Indeed, through these very hills, once lush with tropical vegetation, walked the largest, most formidable creatures to ever inhabit the earth. Yet, continuing along the winding mountain roads that bypass small rural villages, one soon comes across a facility that is in every way the very antithesis of dinosaurs – a modern converter substation that stretches over a huge plateau and is fed by numerous transmission lines snaking in from every direction. Out of the other side of this facility are two huge towers that mark the exits of two poles of the ± 800 kV DC line that come together on the next tower and start a 1400 km journey across China, carrying some 5000 MW to the energy-hungry industrial cities of Guangdong Province.

Part of a project costing some RMB 17 billion (US $ 2.5 billion), the Chuxiong Converter Station, which lies at 1824 m altitude, was begun in the summer of 2008 and is in many ways the same as the Suidong Converter Station at the other end. There are some notable exceptions, however, due especially to the seismic needs of an area of China where earthquakes are always a threat. In 2009, INMR was given the privilege of a tour of this high-tech marvel as it neared completion. To quote a famous Chinese maxim, the following photos are worth a thousand words and need little further comment.

Advertisement
converter station UHV Converter Station Showcased Latest Equipment & Insulator Technologies CSL Advertisement e1477326535980

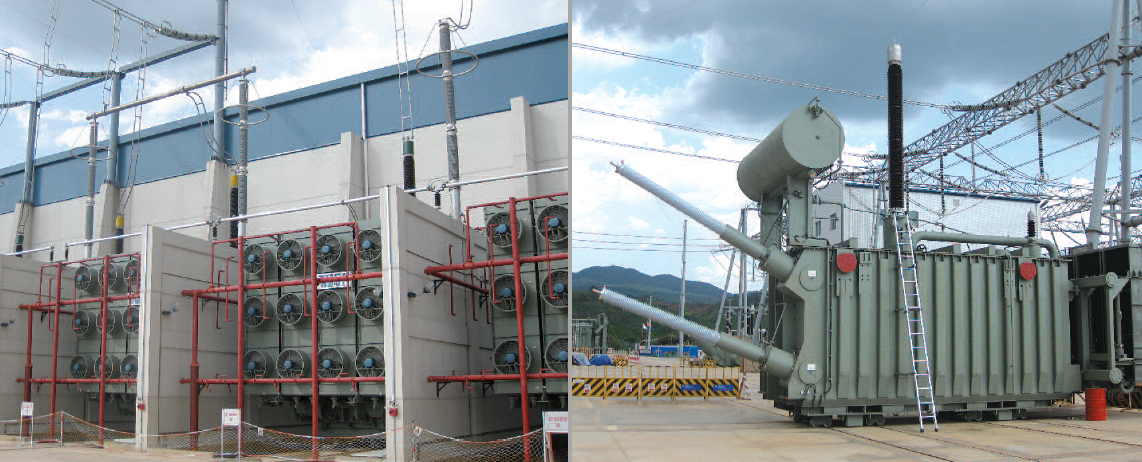

Chuxiong Converter Station is equipped with 28 transformers, of which 4 are spares. The remaining 24 have 12 of each polarity with 3 units at each voltage level: 200, 400 , 600 and 800 kV. converter station UHV Converter Station Showcased Latest Equipment & Insulator Technologies Screen Shot 2016 10 28 at 16
Chuxiong Converter Station is equipped with 28 transformers, of which 4 are spares. The remaining 24 have 12 of each polarity with 3 units at each voltage level: 200, 400 , 600 and 800 kV.
CLICK TO ENLARGE
All bushings on transformers (here 800 kV) are silicone-housed dry types. converter station UHV Converter Station Showcased Latest Equipment & Insulator Technologies Screen Shot 2016 10 28 at 15
All bushings on transformers (here 800 kV) are silicone-housed dry types.
Advertisement
BPG International Advertisement

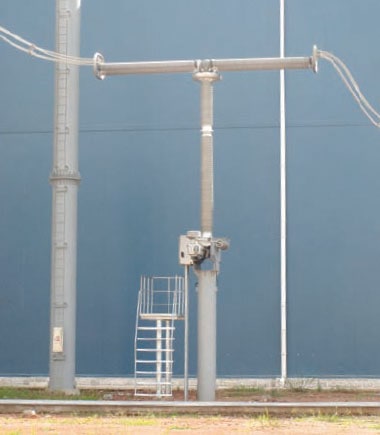

Special design bypass breaker outside valve halls. converter station UHV Converter Station Showcased Latest Equipment & Insulator Technologies Pic427
Special design bypass breaker outside valve halls.
CLICK TO ENLARGE





























Supports for smoothing reactor equipment are all silicone housed and designed for high seismic withstand. converter station UHV Converter Station Showcased Latest Equipment & Insulator Technologies Screen Shot 2016 10 28 at 16
Supports for smoothing reactor equipment are all silicone housed and designed for high seismic withstand.
CLICK TO ENLARGE
converter station UHV Converter Station Showcased Latest Equipment & Insulator Technologies Pic1212
CLICK TO ENLARGE

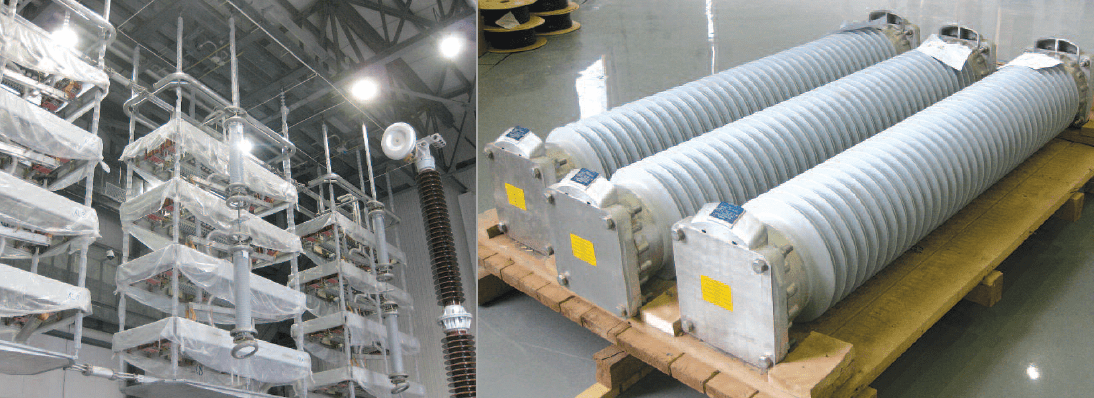

Valve hall features suspended arresters with polymeric housings. converter station UHV Converter Station Showcased Latest Equipment & Insulator Technologies Screen Shot 2016 10 28 at 16
Valve hall features suspended arresters with polymeric housings.
CLICK TO ENLARGE

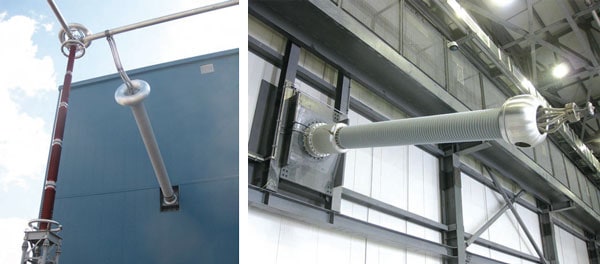

Wall bushings on valve halls are all silicone-housed. converter station UHV Converter Station Showcased Latest Equipment & Insulator Technologies Pic817
Wall bushings on valve halls are all silicone-housed.
CLICK TO ENLARGE



Advertisement
converter station UHV Converter Station Showcased Latest Equipment & Insulator Technologies INTEGRATED Engineering Software Mar 11

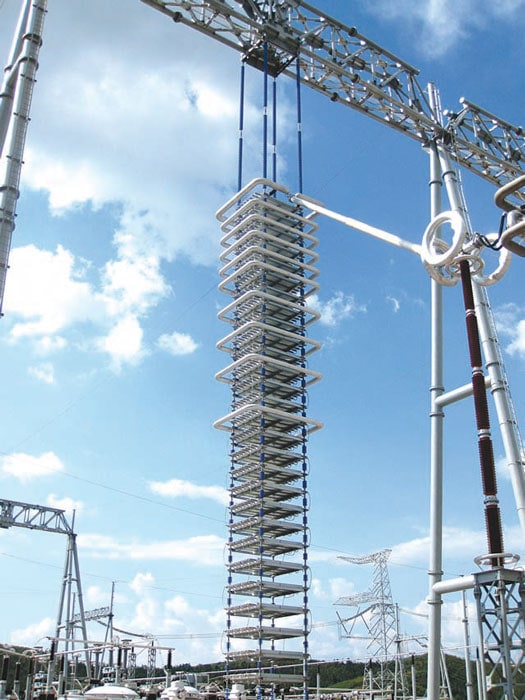

Special design of arrester converter station UHV Converter Station Showcased Latest Equipment & Insulator Technologies Pic914
Special design of arrester
CLICK TO ENLARGE
General views of DC side of Chuxiong. converter station UHV Converter Station Showcased Latest Equipment & Insulator Technologies Screen Shot 2016 10 28 at 16
General views of DC side of Chuxiong.
CLICK TO ENLARGE



Advertisement
converter station UHV Converter Station Showcased Latest Equipment & Insulator Technologies OFIL banner 300X125 July1
Advertisement
Desma Advertisement converter station UHV Converter Station Showcased Latest Equipment & Insulator Technologies Desma banner Apr 26
Advertisement
Yizumi Ad converter station UHV Converter Station Showcased Latest Equipment & Insulator Technologies INMR YIZUMI July edition

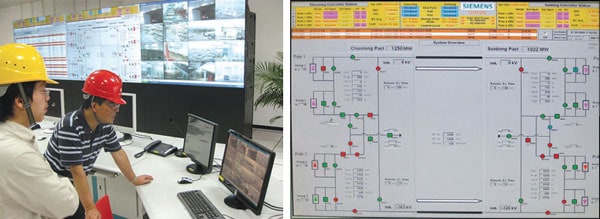

Control room at Chuxiong. converter station UHV Converter Station Showcased Latest Equipment & Insulator Technologies Pic1113
Control room at Chuxiong.

First tower carries one pole of ± 800 kV line. View of towers with both poles (background). converter station UHV Converter Station Showcased Latest Equipment & Insulator Technologies Screen Shot 2016 10 28 at 16
First tower carries one pole of ± 800 kV line. View of towers with both poles (background).
