Silicone elastomers are being used worldwide to produce MV & HV outdoor insulating components such as insulators, bushings, cable terminations, arresters, etc. The growing service population of these components attests to the advantages offered by this polymeric material family. At the same time, more and more of these components are now also being installed for DC applications. Positive service experience has been widely reported in spite of only limited material testing as well as lack of test standards. The edited article by Dr. Jens Lambrecht of Wacker Chemie in Germany presents the view of a material supplier and deals with initial comparative material testing under DC.

Advertisement
testing silicone elastomers for dc Testing Silicone Elastomers for DC CSL Advertisement e1477326535980
Advertisement
DNV ad testing silicone elastomers for dc Testing Silicone Elastomers for DC Banner 530x150 12 12 2017 3 for keywords INMR



Testing Silicone Elastomers for DC  testing silicone elastomers for dc Testing Silicone Elastomers for DC Screen Shot 2016 04 21 at 9

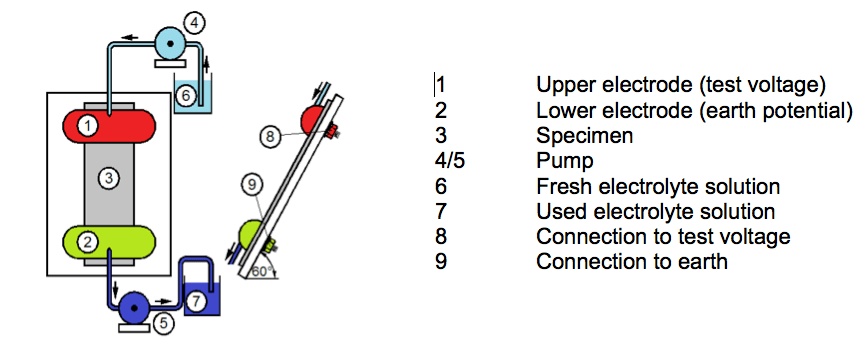

Fig. 1: Dynamic-Drop-Test setup (in principle).
CLICK TO ENLARGE

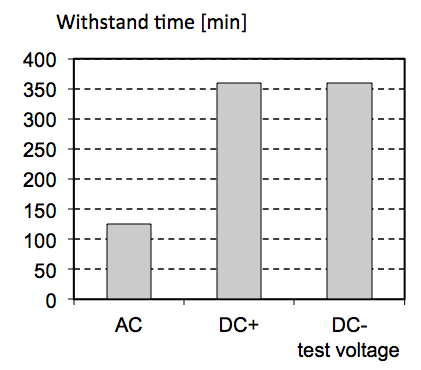

Fig. 2: Dynamic Drop-Test: Withstand time of silicone elastomer for HV-outdoor applications at AC, DC+ and DC- test voltage of 5 kVrms. testing silicone elastomers for dc Testing Silicone Elastomers for DC Screen Shot 2016 04 21 at 9
Fig. 2: Dynamic Drop-Test: Withstand time of silicone elastomer for HV-outdoor applications at AC, DC+ and DC- test voltage of 5 kVrms.
CLICK TO ENLARGE

Dynamic Hydrophobic Properties

Advertisement
BPG International Advertisement testing silicone elastomers for dc Testing Silicone Elastomers for DC BPG Banner

Silicone elastomers, especially those formulated for outdoor HV applications, show advantageous dynamic hydrophobicity properties – as described by retention, recovery and transfer of water repellency. Hydrophobicity leads to suppression of leakage current and a high pollution flashover voltage. The following can be found in IEC/TS 60815-3 Edition 1.0 2008-10: Polymeric insulators present certain advantages over ceramic and glass insulators due to their form and materials. These advantages include a generally improved pollution withstand behavior when compared to similar ceramic or glass insulators of equal creepage distance; this improvement is even more enhanced by use of HTM. In principle and purely from pollution withstand or flashover point of view, it can thus be concluded that a reduced creepage distance may be used for such insulators.

Investigation of material-related hydrophobic properties and their influencing factors can be accomplished by applying accelerated multiple stress wet test procedures as well as transfer tests with artificial pollution layers. The previously used rotating wheel dip test has been modified to the new greater acceleration factor dynamic drop test, which allows evaluation of hydrophobicity retention and recovery at the same time (Fig. 1). The procedure provides rather well reproducible test results with a low deviation of the realizations especially when compared with the experiences from the wheel-test. The device allows a proper material differentiation and is part of the ongoing work in the CIGRE Working Group D1.14.

Advertisement
testing silicone elastomers for dc Testing Silicone Elastomers for DC INTEGRATED Engineering Software Mar 11

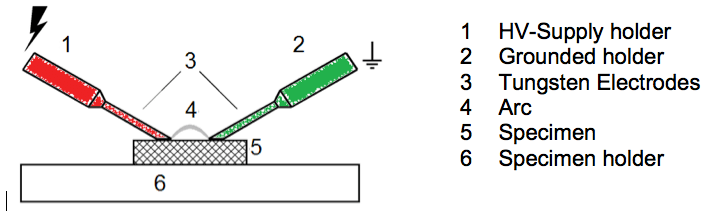

Fig. 3: Arc-test acc. to IEC 61621. testing silicone elastomers for dc Testing Silicone Elastomers for DC Screen Shot 2016 04 21 at 9
Fig. 3: Arc-test acc. to IEC 61621.
CLICK TO ENLARGE

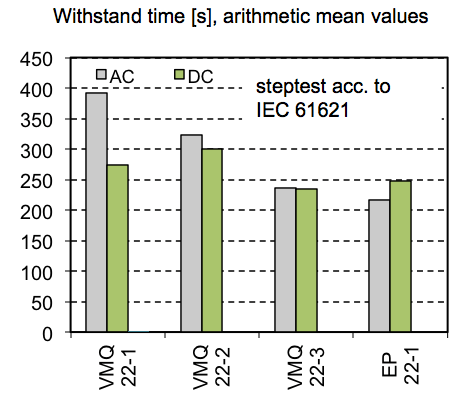

Fig. 4: Withstand time of different insulating materials when tested in arc step test acc. to IEC 61621 under AC & DC voltage. testing silicone elastomers for dc Testing Silicone Elastomers for DC Screen Shot 2016 04 21 at 9
Fig. 4: Withstand time of different insulating materials when tested in arc step test acc. to IEC 61621 under AC & DC voltage.
CLICK TO ENLARGE

When applied to the same material at AC and DC at the same voltage rms-level the retention (stability of hydrophobicity) was found to be significantly higher at both positive and negative DC- when compared to 50 Hz-AC-stress (Figure 2). Major differences of the electro-hydrodynamic behavior of droplets in AC- and DC-field are understood to be the reason for these results that are in line with service experiences.

Advertisement
testing silicone elastomers for dc Testing Silicone Elastomers for DC OFIL banner 300X125 July1
Advertisement
Desma Advertisement testing silicone elastomers for dc Testing Silicone Elastomers for DC Desma banner Apr 26
Advertisement
Yizumi Ad testing silicone elastomers for dc Testing Silicone Elastomers for DC INMR YIZUMI July edition

Application of HV Arc Test for DC Testing

Another direction of work is the application of a modified arc test with DC stress (Fig. 3). This not only allows elimination of the unwanted corrosion effect found in the so-called inclined-plane-test at DC but is also fast and repeatable. If done ‘according to the AC-standard’, i.e. by applying stepwise increasing stress with the clocked current, results (in withstand time) are in line with those for AC testing (Fig. 4). These latest results demonstrate that it is important to look beyond current applications and standards in order to create the knowledge and know-how needed to make additional testing tools available.
