Review of External Insulation for EHV & UHV Bushings

A number of alternatives are available these days when it comes to external insulation of EHV & UHV bushings, including: a porcelain housing, which, if needed can be coated with RTV to improve pollution performance; a hybrid housing consisting of a porcelain core support with an HTM housing; or a composite housing. This edited contribution to INMR by Paolo Cardano and A. Pastore of GE Grid Solutions in Italy in co-operation with consultant Alberto Pigini, examines comparative performance of these insulation alternatives based on design aspects and requirements and in light of tests performed at laboratories worldwide.


Electrical Performance

In regard to electrical performance, the different insulation options for EHV & UHV bushings can be grouped into two main categories:

• HTM (hydrophobicity transfer material) insulators such as RTV silicone coated porcelain, hybrid solutions and composite solutions;
• non-HTM solutions, namely uncoated porcelain insulators.

Advertisement
uhv bushings Review of External Insulation for EHV & UHV Bushings Zibo ad 14

Overvoltage Performance

The most critical condition for external bushing insulation from the overvoltage point of view, although not commonly known, is represented by tests with Switching Impulses (SI) of positive polarity under rain. Examples of such test set-ups are shown in Fig. 1.

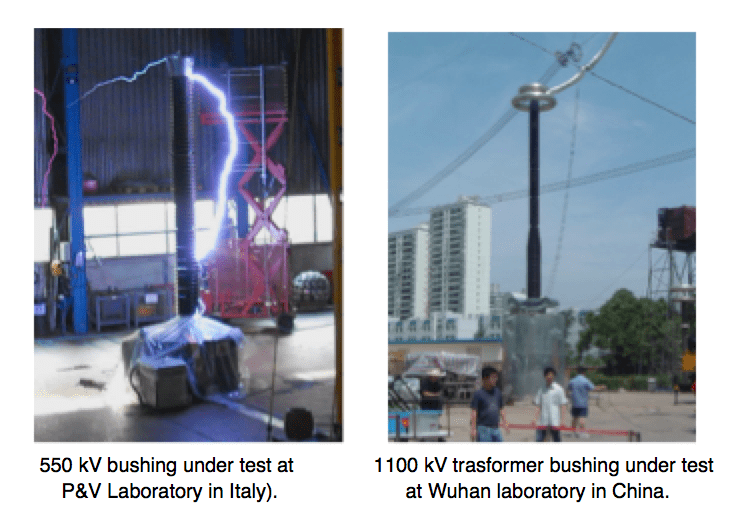

Examples of overvoltage test set-ups. Testing External Insulation for EHV & UHV Bushings uhv bushings Review of External Insulation for EHV & UHV Bushings Examples of overvoltage test set ups
Fig. 1: Examples of overvoltage test set-ups.
CLICK TO ENLARGE

Flashovers under switching impulses develop mainly in air, unless the distance between sheds of the insulators being used is too small. Fig. 2 summarizes some test results obtained over the years. Due to the arc occurring mainly in air, testing found no significant difference between HTM and non-HTM insulation. Based on such broad test experience, design indications have been derived for internal product standardization from the switching performance point of view and bushing arcing distances have therefore been standardized based on SI level.

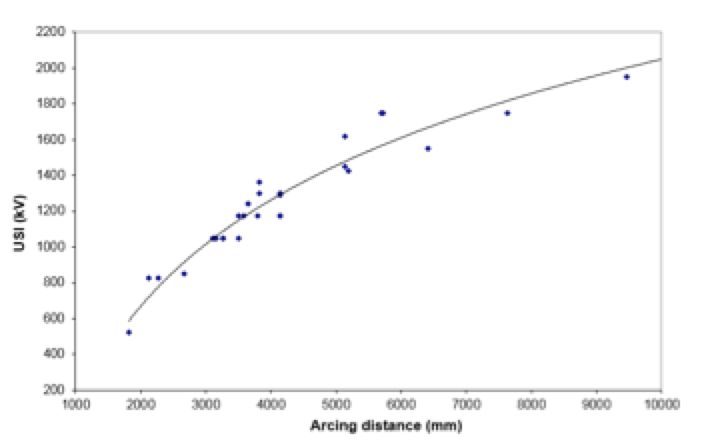

Graph showing successful withstand test voltage versus bushing arcing distance. uhv bushings Review of External Insulation for EHV & UHV Bushings Successful withstand test voltage versus bushing arcing distance
Fig. 2: Successful withstand test voltage versus bushing arcing distance.
CLICK TO ENLARGE

Pollution Performance

Performance Under AC Voltage

IEC 60815 TS Parts 2 & 3 offer guidelines for selection of insulators from the pollution point of view in AC. Basically, the same Unified Specific Creepage Distances (USCD) are indicated for non-HTM (e.g. ceramic) and HTM (e.g. composite) insulators, thereby making any deviations the responsibility of those who write the specification. Moreover, specifications generally assume that the same USCD is applicable to cap & pin insulators or station insulators having average diameter equal to or lower than 300 mm and indicating a correction of USCD only for large station insulator diameters.

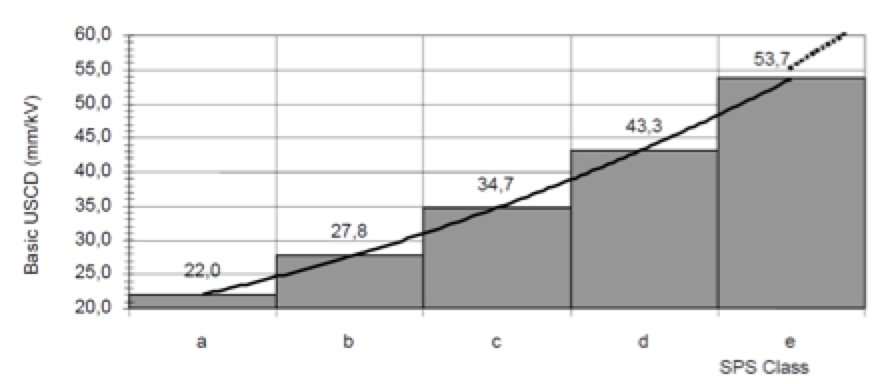

uhv bushings Review of External Insulation for EHV & UHV Bushings Reference USCD as function of pollution classes for HTM and non HTM insulators
Fig. 3: Reference USCD as function of pollution classes for HTM and non HTM insulators.
CLICK TO ENLARGE

Applicability of the above indications in the case of non-HTM porcelain insulator housings was verified by performing ad hoc tests at a HV laboratory using Procedure B of the solid layer method. Fig. 4 provides results for the insulator housings shown in Fig. 5. These results were then compared with those following the indications as per IEC 60815 TS. A discrepancy can be noted, indicating that station insulators may require USCD higher than what is indicated in the standard, something that may need to be considered during its next revision. The same indications, namely a higher USCD is necessary for station insulators than for cap & pin insulators, were also found during related salt fog testing conducted in Italy and Mexico.

uhv bushings Review of External Insulation for EHV & UHV Bushings Results of tests with solid layer method at HV laboratory on porcelain insulator housings from Fig
Fig. 4: Results of tests with solid layer method at HV laboratory on porcelain insulator housings from Fig. 5. Comparison with curve derived from cap & pin insulator data, corrected for influence of diameter influence, as indicated in IEC 60815 TS.
CLICK TO ENLARGE
Porcelain housings tested at laboratory in Czech Republic. External Insulation for EHV & UHV Bushings uhv bushings Review of External Insulation for EHV & UHV Bushings Porcelain housings tested at laboratory in Czech Republic
Fig. 5: Porcelain housings tested at laboratory in Czech Republic.
CLICK TO ENLARGE

Tests to verify pollution performance of HTM insulators, i.e. composite housings, were carried out at a laboratory in Sweden. Given absence of a standardized test in this case, the salt fog method with quick flashover procedure was used. This allowed obtaining an indication of insulator performance after many surface flashovers, thereby conditioning the insulators and leading to an estimate of pollution performance that is closer to what might actually be encountered during long-term service (see Fig. 6).

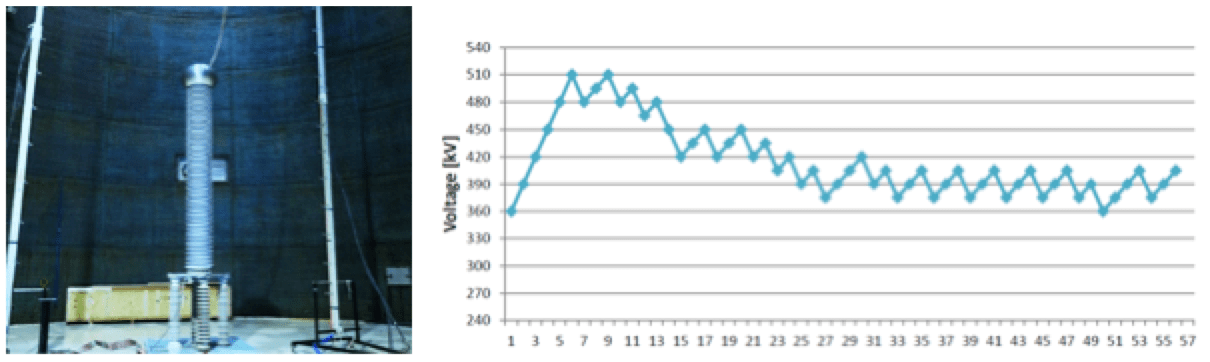

uhv bushings Review of External Insulation for EHV & UHV Bushings Salt fog pollution laboratory testing on composite housings
Fig. 6: Salt fog pollution laboratory testing on composite housings.
CLICK TO ENLARGE

At a salinity of 80 g/l, a USCD of 37 mm/kV was estimated, i.e. about 65% of the value estimated for ceramic housings based on a conservative estimate and considering that ceramic insulators may actually require higher USCD than in IEC 60815.

Advertisement
uhv bushings Review of External Insulation for EHV & UHV Bushings CSL compressed

Performance Under DC Voltage

Guidelines for selecting insulators from the pollution point of view in DC are proposed in IEC 60815 TS Part 4, which gives design curves for both non-HTM and HTM insulators with reference to solid layer and salt fog parameters (shown in Fig. 7). As the case for AC, these curves are again assumed to be applicable both to cap & pin insulators and to station insulators with average diameter equal to or lower than 300 mm, with correction factors to be applied only for insulators of larger diameter.

uhv bushings Review of External Insulation for EHV & UHV Bushings EC Design curves
Fig. 7: IEC Design curves (from IEC 60815 Part 4).
CLICK TO ENLARGE

Fig. 8 compares the performance of line insulators and station insulators for the non-HTM case (i.e. ceramic insulators) using data from a past CIGRE paper and based on tests carried out in Italy and Germany. These indicate that direct application of line insulator data to station insulators has to be made with caution.

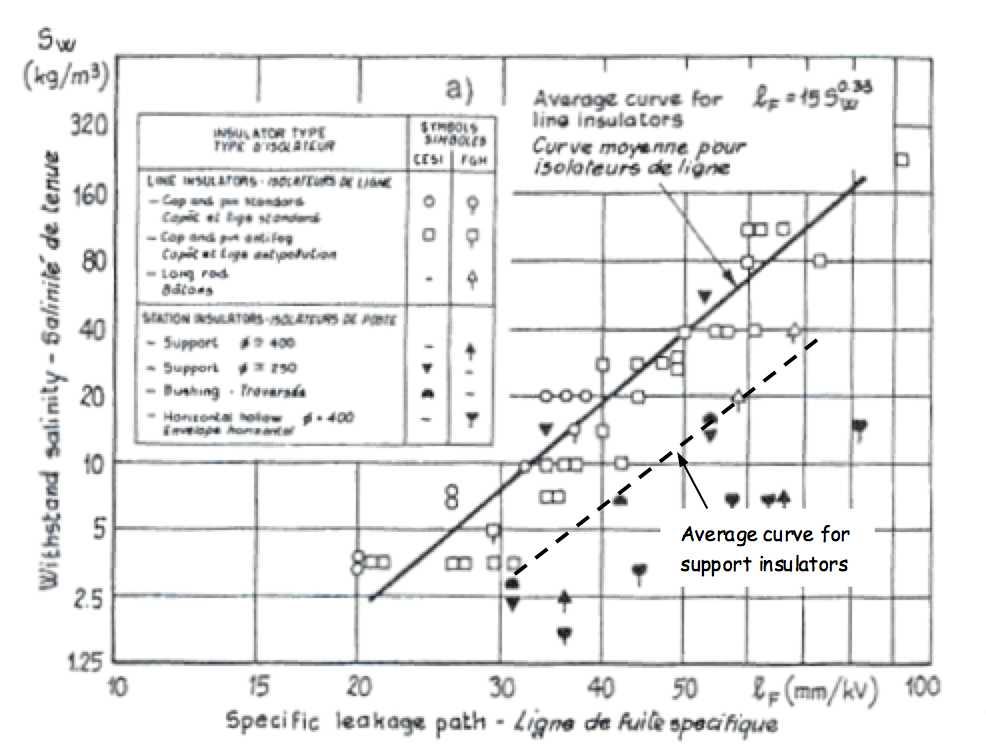

uhv bushings Review of External Insulation for EHV & UHV Bushings Withstand salinity as function specific creepage distance
Fig. 8: Withstand salinity as function specific creepage distance (USCD).
For station insulators, reference is made to maximum insulator diameter.
CLICK TO ENLARGE

More recently, additional tests were made to compare experimental results with indications as per IEC 60815 Part 4 with special attention to HTM insulators. Again, in the absence of standardized testing methods, the quick flashover procedure was used for salt fog and the so-called ‘rapid procedure’ for solid layer. Experimental results of salt fog and solid layer pollution tests performed on composite housings of large diameter from different manufacturers (see Fig. 9 for an example) showed that results are influenced largely by insulator characteristics, as shown in Fig. 10. This however confirms need for a USCD much lower than for porcelain insulators, especially at relatively high contamination levels, with the ratio of USCD for composite versus ceramic insulators being less than 65%. Comparison of test results with IEC specifications therefore suggests that, in general, the IEC approach may be conservative in the case of HTM insulators.

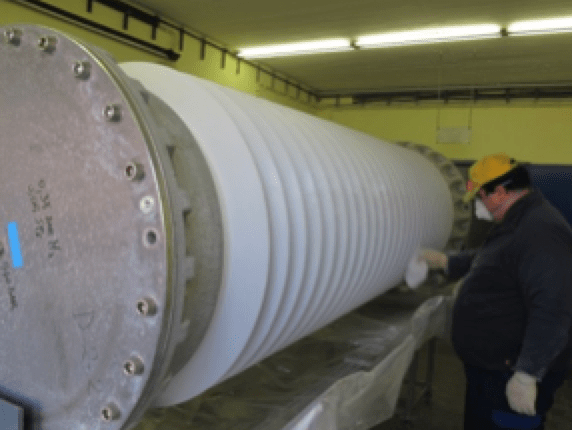

uhv bushings Review of External Insulation for EHV & UHV Bushings Insulator under test in Germany
Fig. 9: Insulator under test in Germany.
CLICK TO ENLARGE

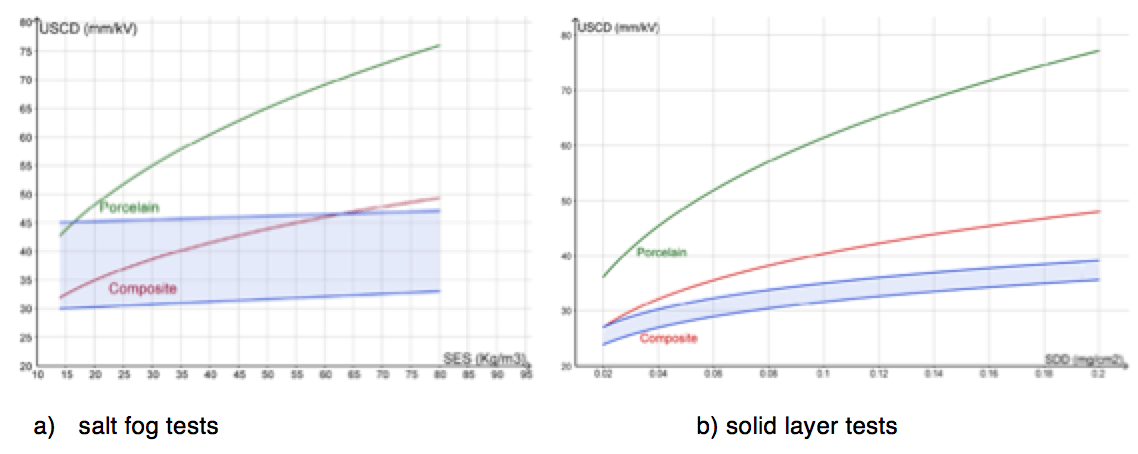

uhv bushings Review of External Insulation for EHV & UHV Bushings USCD as function of pollution severity
Fig. 10: USCD as function of pollution severity.
Blue area: Range of experimental results for composite insulators. Red & green lines: Design curve suggested in IEC 60815 Parts 2 & 3 respectively for composite and porcelain insulators.
CLICK TO ENLARGE

Fig. 11 shows that dependence of USCD on insulator diameter is much lower for HTM insulators than for ceramic insulators. This means the former offer greater advantage, especially for the larger diameter insulators typically required for UHV AC and DC applications.

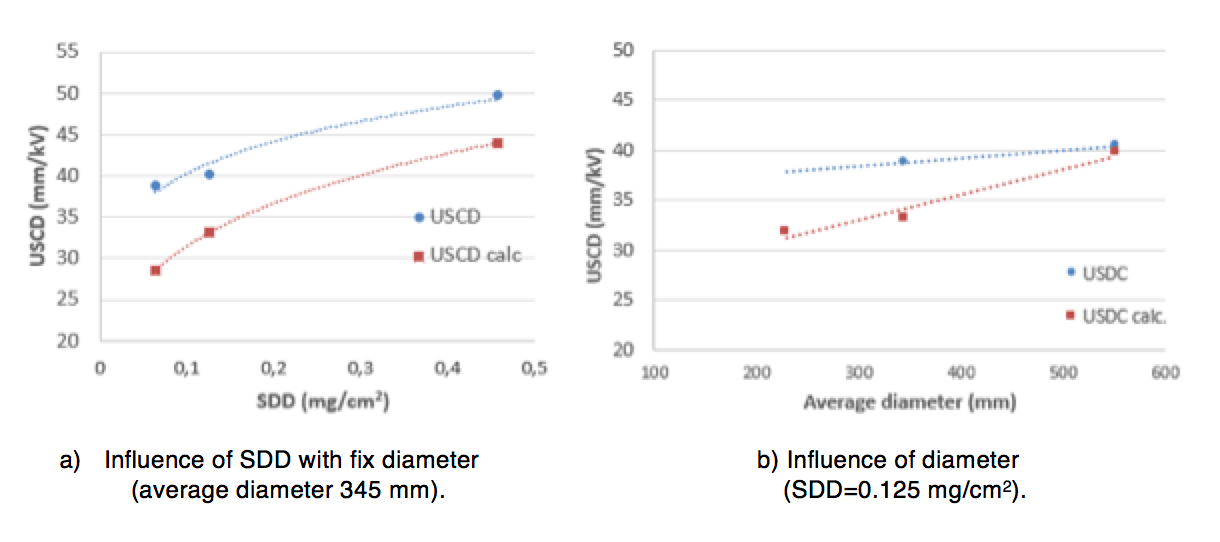

uhv bushings Review of External Insulation for EHV & UHV Bushings Influence of insulator diameter on USCD
Fig. 11: Influence of insulator diameter on USCD. Tests at SES of 80 kg/m3.
Blue area: Range of experimental results for composite insulators.
Red & green lines: Design curve suggested in IEC 60815 Parts 2 & 3 respectively for composite and porcelain insulators.
CLICK TO ENLARGE

Design Indications

The above findings indicate that, looking only to withstand requirement under pollution, HTM insulators (and hybrid ones as well) could potentially be used with USCDs much lower than normally applied for porcelain, even if the final USCD selected for design must take into account the need to comply with long-term performance requirements (i.e. an ageing limitation). The advantages of HTM solutions in terms of pollution performance, especially for large diameter insulators required for the upper range of EHV and UHV, and the possibility with composite insulators to use efficient creepage factors higher than for ceramic equivalents, make the HTM solution (i.e. composite and hybrid insulators) the best candidate for AC applications in harsh environments. This also applies in general for DC applications (i.e. cases where performance under pollution conditions dominates design. Moreover, in the case of DC, hybrid insulator solutions are typically not used since the bushings are frequently placed at angles close to horizontal and a porcelain core is too heavy.

Advertisement
uhv bushings Review of External Insulation for EHV & UHV Bushings INTEGRATED Engineering Software Mar 11

Icing Performance

For some environments, insulator design must comply with expected performance under icing and sometimes under heavy ice conditions, i.e. with the insulator practically short-circuited by ice (i.e. the most critical case). Tests on HTM and non-HTM insulators were performed at three laboratories, with set-ups shown in Fig 11. Performance of HTM and non-HTM insulation was similar in spite of some possible initial advantage for non-HTM insulators during the initial phase of ice formation. Once an ice coating has formed, however, ice dominates insulation performance and fully masks insulator characteristics. Based on experience, a software tool for statistical design of insulators under heavy ice conditions has been developed. As example, Fig. 12 outlines maximum allowable stress for vertical insulators per m of arcing distance in the withstand condition versus ice thickness.

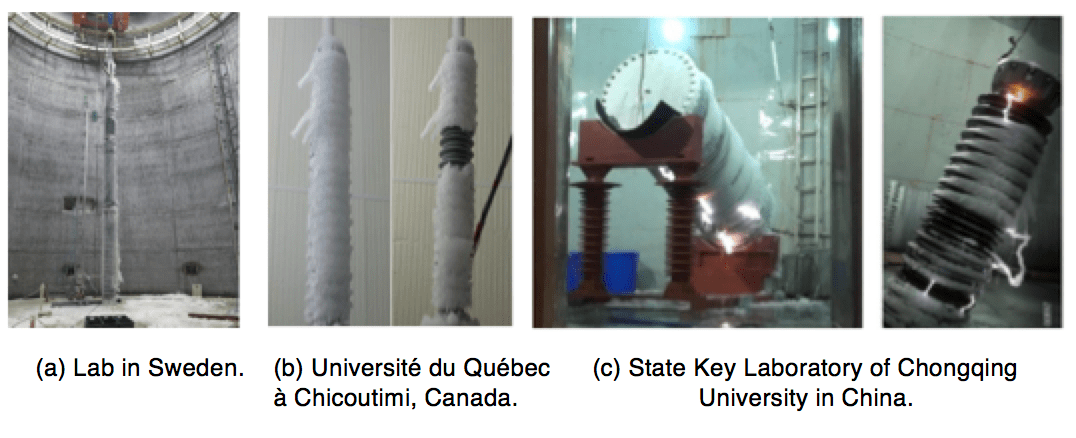

Results of insulators tested under heavy icing conditions. uhv bushings Review of External Insulation for EHV & UHV Bushings Insulators tested under heavy icing conditions
Fig. 11: Insulators tested under heavy icing conditions.
CLICK TO ENLARGE
uhv bushings Review of External Insulation for EHV & UHV Bushings Vertical insulator

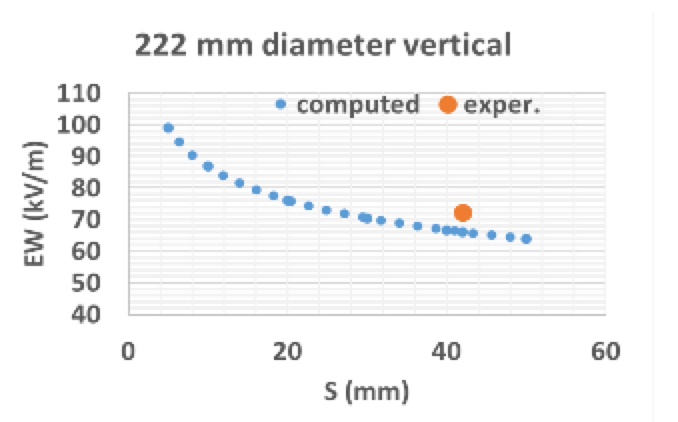

Fig. 12: Vertical insulator. Maximum allowable stress per m as function of ice thickness (water conductivity 30 µS/cm). DC voltage. Comparison of calculations with experimental results.
CLICK TO ENLARGE

Much higher stresses can be allowed for inclined samples, as in applications such as wall bushings. Fig. 13 shows examples of calculations and comparison of experimental results for insulators inclined as per in-service conditions, where influence of insulator diameter is shown as well.

uhv bushings Review of External Insulation for EHV & UHV Bushings Comparison of experimental withstand voltage with computed one for ice thickness of 42 mm

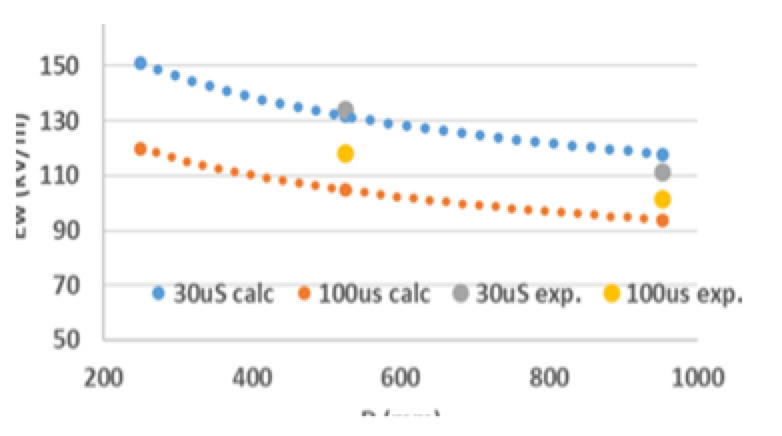

Fig. 13: Comparison of experimental withstand voltage with computed one for ice thickness of 42 mm. Ew values are given as function of insulator external diameter D.
CLICK TO ENLARGE

Seismic Performance

Earthquakes can be disastrous to the integrity of electrical grids and many studies have been carried out and are still in progress to limit these consequences. Bushings mounted on frames (i.e. transformers, reactors, GIS, walls) that amplify ground motion and being thin, high and heavy, are subject to even higher mechanical stresses than other grid components, especially in the EHV (420-550 kV) and UHV (≥800 kV) voltage ranges. As such, the critical components of a bushing are its condenser core and airside insulator. The first links mainly to insulation technology. Oil impregnated paper (OIP) insulation with condenser core made of paper impregnated with a fluid and all the components that hermetically contain the oil becomes more critical than solid resin impregnated paper (RIP) or resin impregnated synthetic (RIS) technologies, where no fluid is present. Second, since OIP technology was the first to have been developed, it is more traditionally associated with use of porcelain insulators. By contrast, the other ‘newer’ technologies are more frequently connected with use of HTM-composite insulators. Porcelain is heavy, rigid and fragile – all characteristics that are negative in terms of seismic withstand. Nonetheless, EHV and UHV bushings are typically OIP insulated and still equipped with porcelain insulators due mainly to the fact that utilities that use such bushings mostly favour traditional porcelain. Therefore, these must be carefully optimized for seismic performance by employing only highest quality materials (e.g. extra high strength porcelain, reinforced flanges, optimized cementing between porcelain and flange) as well as extensive use of FEM analyses along with subsequent seismic testing to verify simulation results.

Advertisement
Desma Advertisement uhv bushings Review of External Insulation for EHV & UHV Bushings DESMA INMR OnlineAd

Fortunately, UHV bushings are normally installed vertically – a condition that helps seismic withstand compared to the inclined position, where relevant dead load plays an important role in considerably increasing seismic stresses (see Fig. 14b). A mechanically optimized OIP UHV bushing (800-1100 kV) can normally withstand seismic acceleration of up to 0.3 g, corresponding to a medium level in IEC’s seismic standard where the lowest level is 0.2 g and the highest is 0.5 g (g being the earth’s acceleration of 9.81 m/s2). EHV OIP bushings can withstand a level of up to 0.5 g if placed vertically. In order to increase seismic withstand, both UHV and EHV bushings should ideally be equipped with composite insulators. In all of the above cases, a hybrid insulator solution would not help in terms of increasing seismic performance due to presence of the heavy porcelain core.

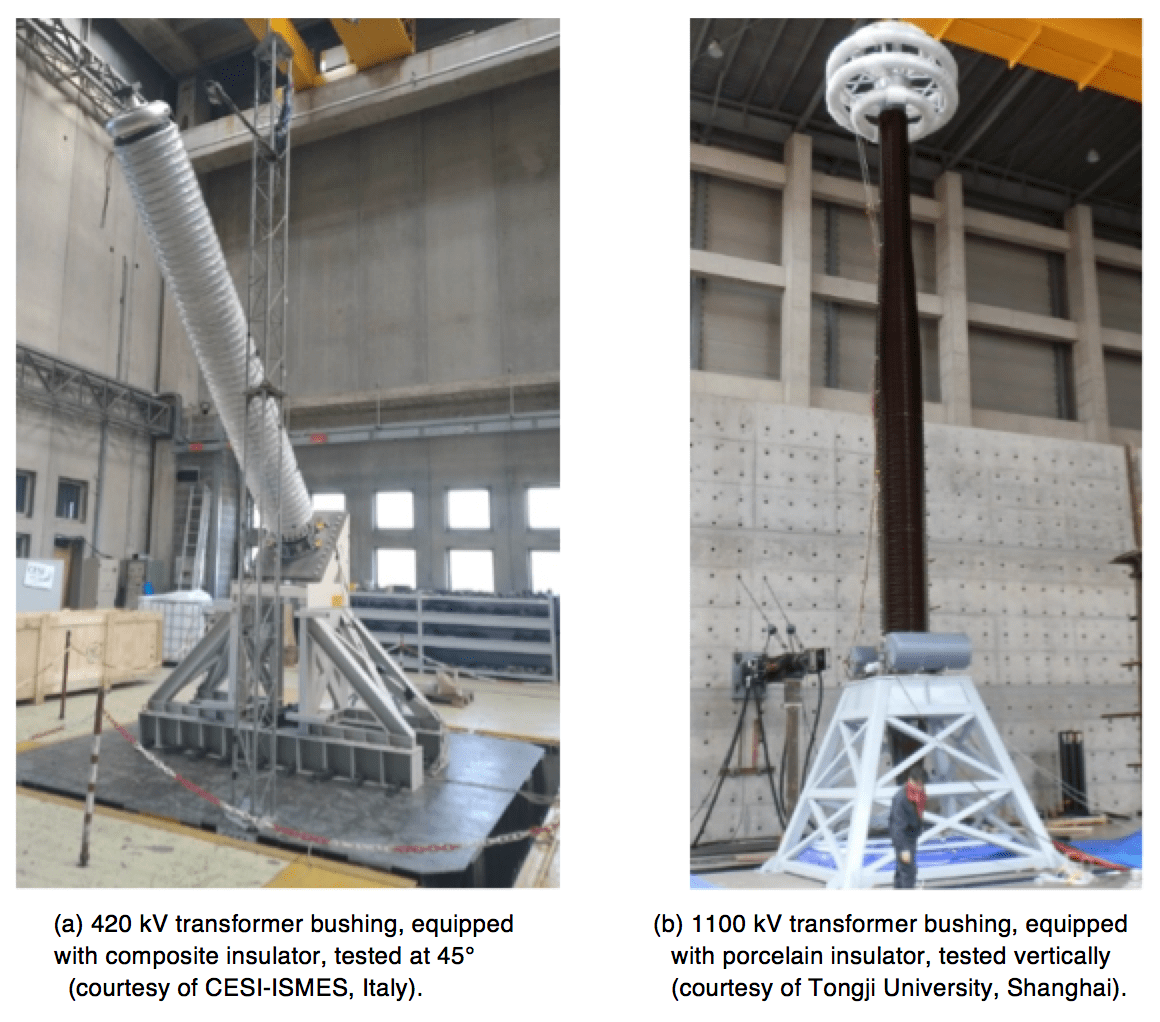

uhv bushings Review of External Insulation for EHV & UHV Bushings Bushings under seismic testing
Fig. 14: Bushings under seismic testing.
CLICK TO ENLARGE

Solid insulation bushings equipped with composite insulators are seismically stronger because, in addition to their solid condenser core:

• the filler between core and insulator is normally dry (i.e. polyurethane foams or high viscosity gels) which act as damper between core and insulator, thereby increasing overall bushing damping;

• a composite insulator is light, elastic and with good mechanical performance, which can be further increased by changing the winding angle of the fiberglass used in its hollow tube (see Fig. 15). While the standard winding angle is normally about 35 to 40° (with respect to insulator axis) this angle can be reduced thus increasing material properties by up to 50%;

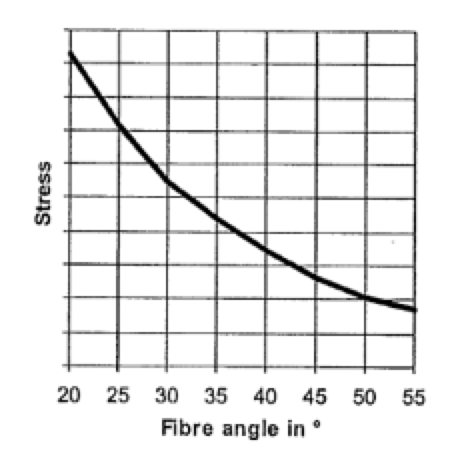

uhv bushings Review of External Insulation for EHV & UHV Bushings Damage limit of fiberglass as function of winding angle
Fig. 15: Damage limit of fiberglass as function of winding angle.
CLICK TO ENLARGE

• the bushing is lighter and consequently seismic acceleration generates a lower force (F = m x a);

• the insulator, in conjunction with filler, is an elastic system and therefore overall damping is lower. This reduces seismic response by decreasing maximum acceleration applied to the bushing;

• on the other hand, these classes of bushings, generally in the EHV range (420-550 kV), are frequently tested in an inclined position (see Fig. 14) where seismic stress is higher due to the dead load.

Dry bushings in the EHV range equipped with composite insulators can withstand the highest seismic level of 0.5 g, even in an inclined position and up to the worst angle of 45° (see Fig. 14a).

A final aspect to consider relates to direct moulding, a process that consists of moulding silicone sheds directly onto the bushing’s condenser core. This eliminates need for a composite insulator as well as the filler needed for the gap between insulator and fiberglass tube. This kind of bushing is structurally less strong and generally made only up to the HV range of 170 kV. Therefore, their mass is relatively small and seismic forces are not so high.

Advertisement
uhv bushings Review of External Insulation for EHV & UHV Bushings OFIL banner 300X125 July1

Safety Aspects

From the safety point of view, porcelain insulators, even if still the main type used worldwide, are critical due to risk of explosion in the event of internal flashover that comes into contact with the body. The thermal shock from the arc generates a dangerous explosion with projection of sharp chunks of porcelain all around and possible serious injury to persons and damage to nearby equipment. This is one of the reasons why porcelain insulators are progressively being substituted with composite insulators that do not suffer this type of violent phenomenon. In case of internal arc, the composite insulator breaks but does not explode. This is another positive characteristic for such insulation, in addition to the pollution and seismic performance advantages outlined above. A hybrid insulator solution is not used when focused on the safety aspect since the drawbacks of porcelain in terms of explosion risk do not change.

One of the latest developments in OIP bushings, traditionally equipped only with porcelain, has been to offer them in the EHV range with composite insulators instead. This avoids the possible drawbacks of porcelain while maintaining known, reliable OIP technology and is a compromise being considered by more and more utilities in recent years. For example, to demonstrate the explosion proof capability of such bushings, Italian TSO Terna recently introduced the internal arc test, typically used for years in the case of current transformers. The goal is to verify that when a 420 kV bushing is run with a current of 63 kA for half a second there is no projection of solid parts outside a radius of 2 m from the bushing’s airside axis. This test has been carried out with success for 420 kV class transformer bushings using both insulating technologies, OIP and RIP (see Fig. 16).

Another important safety aspect relates to the possibility to reduce risk of fire not only of the bushing in case of flashover but also of the transformer itself. An OIP bushing contains a flammable fluid that can burn in case of internal arc. Due to its structure, if a component such as an insulator breaks following flashover, it loses its tightness can allow transformer oil to exit through it, leading to possible worst case burning of the transformer. Use of dry type bushings reduces such risk because the bushing, being a single-piece, acts as a cap on the transformer. Even in case of internal damage, spill of transformer oil is avoided reducing fire risk.

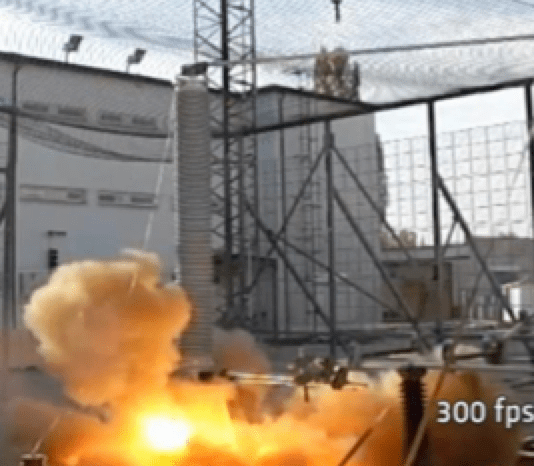

uhv bushings Review of External Insulation for EHV & UHV Bushings Internal arc test on RIP bushing rated 420 kV
