Impact of Biological Growths on Application of Composite Insulators

Insulators

Fingrid, the TSO in Finland, has been using composite insulators at substations and on transmission lines for roughly 20 years and service experience has not shown serious issues. However, biological growths have started to be observed on some of these insulators. Although these have been washed away according to supplier instructions, there is still no clear understanding of potential impact on performance as well as what should be done to ensure the reliable function of these insulators. To address this issue Fingrid took part in an R&D project in cooperation with other European TSOs. The work consisted of a combination of literature review, laboratory testing and field inspections. The aim was to propose good practice and recommendations on how best to manage biological growth on composite insulators from the risk of flashover and ageing points of view. Another objective was to determine whether periodic cleaning is necessary and, if so, to identify the most practical methods for cleaning. Finally, the project sought to identify special material additives that might inhibit or prevent biological growths.

Background

Fingrid owns and operates 400 kV and 220 kV grid including cross border connections to neighboring Estonia, Norway and Sweden. Fingrid also owns and operates about half of the 110 kV grid, the remaining part owned by regional distribution companies and energy-intensive industrial companies. Fig. 1 shows the composition of Fingrid’s grid assets. Due to geography, there are several long south-north transmission links (Fig. 2). On top of the AC grid, there are two HVDC connections to Sweden and two to Estonia. Fingrid also owns and operates emergency reserve power plants. Due to green investments in Finland involving a huge increase in wind power capacity, assets will grow rapidly over the next decade. In fact, some 3000 km of new 400 kV line will be constructed meaning a huge increase in the current number of insulators.

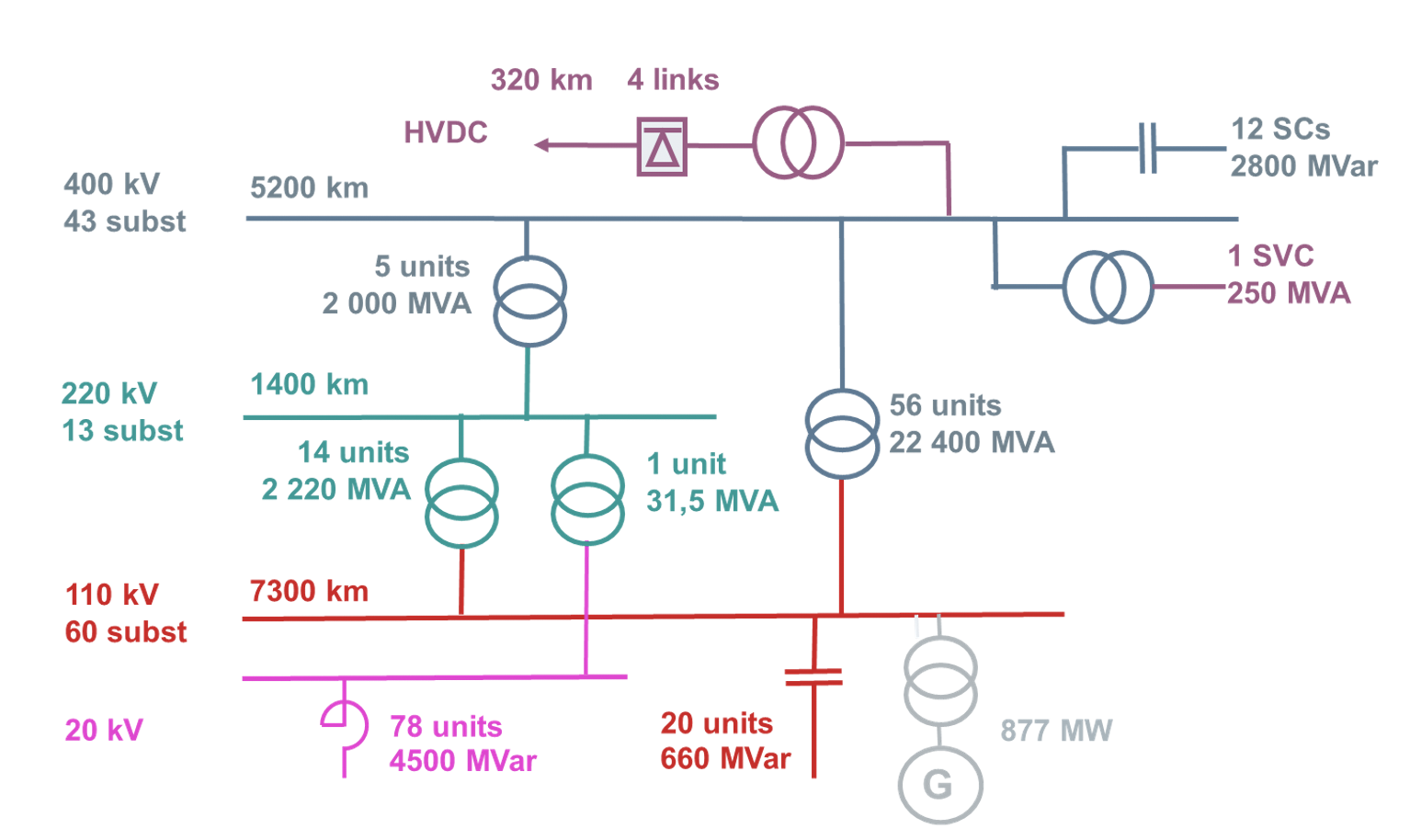

Fig. 1: Fingrid’s assets per type and voltage level (2021).
Fig. 2: Finland’s transmission grid.

Fingrid already has about 1000 composite apparatus insulators, most of these in substations and capacitors banks. About 10,000 composite insulators have been installed on transmission lines. While clearly not the majority among the overall insulator population, this number is increasing. The oldest composite insulators in service are now about 20 years old.

There is a longer history with composite insulators at substations where they offer tangible advantages when it comes to safety. Since the service environment has low contamination, the superior pollution performance of composite insulators is not needed. Although Fingrid’s experience with glass insulators has been positive with no major problems, contractors for transmission line projects these days are encouraged to make alternative offers with composite insulators due to advantages related to greater ease of installation that comes with low weight. Indeed, the majority of new 400 kV transmission lines are equipped with composite insulators and requirements and specifications have been formalized as has qualification of manufacturers and factories.

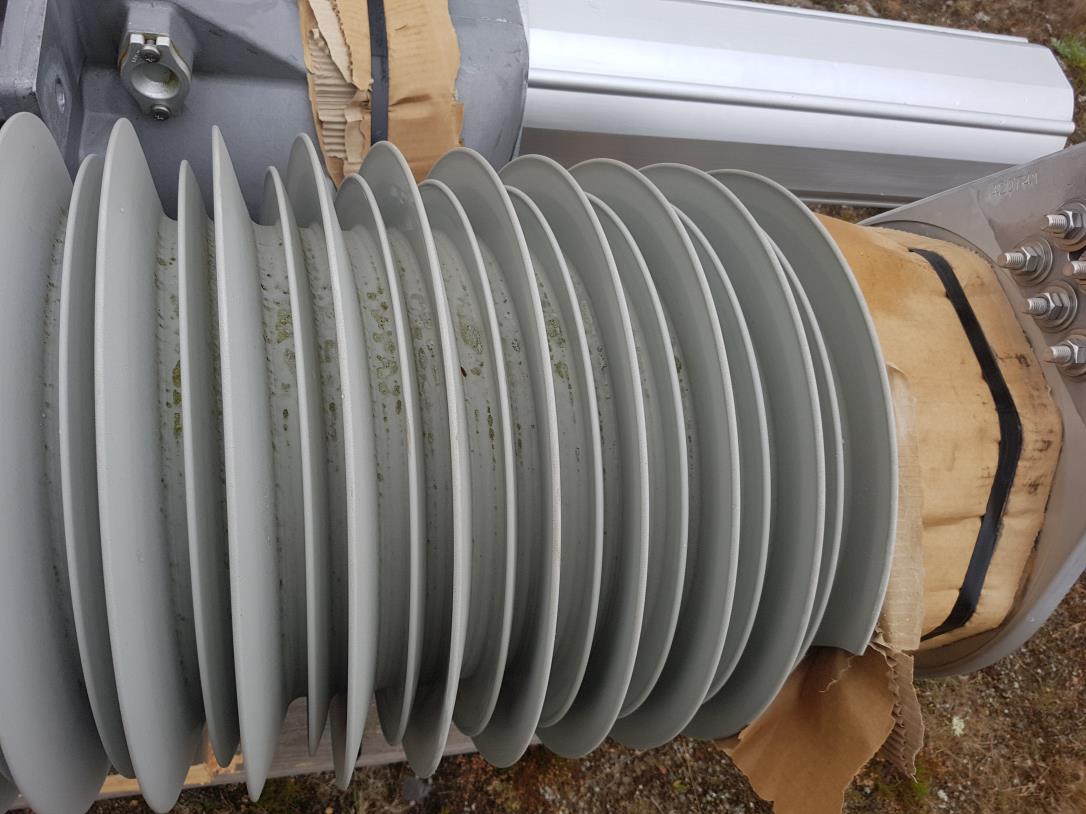

Fig. 3: Biological growth on disconnecting circuit breaker.

Fingrid has observed biological growths on composite insulators on series capacitor banks (i.e. on varistor insulation) in two locations. While these growths have not caused problems and have been washed away, there have nonetheless been related maintenance outages. Growths have also been observed on DC transformer bushings in one location and on a disconnecting circuit breaker (see Fig. 3). Again, no issues have arisen due to these situations.
