Brittle Fracture Failure of 400 kV Polymeric Insulator

In November 2016, a situation occurred with non-ceramic insulators installed on a 400 kV overhead transmission line in Venezuela with 14 years in service. The problem occurred when there was a single-phase fault resulting from the fracture of a polymeric insulator on transposition Tower No. 4 of the Caruachi – Macagua Transmission Line. The rupture occurred in the fiberglass rod as a result of a brittle fracture process as consequence of not installing corona rings during the construction stage. This contribution to INMR by Cristian H. Gutiérrez Aguirre, formerly of Corpoelec, illustrates what can happen on transmission lines once equipment is placed into service. It also highlights the importance of using corona rings at this voltage level as well as the need for proper visual inspection by linemen and technical staff.


Corpoelec’s 400 kV Transmission System consists of 4300 kilometers overhead lines and more than 10,350 towers. The first transmission lines went into commercial operation in early 1969 and were built using glass insulators and porcelain. In Venezuela, use of polymeric insulators at 400 kV began in 1998 and they currently are installed in more than 2,500 towers along of 980 kilometers of lines, representing 23% of the entire transmission system. The failure due to brittle fracture described below documents the factors that contributed to this incident considering: period in service, failures of materials, absence of key accessories such as corona rings as well as external factors and environmental pollution that over time can reduce insulator life expectancy.

Advertisement
GIG Advertisement transmission line Brittle Fracture Failure of 400 kV Polymeric Insulator Coating Global Insulator Group copy

The 400 kV Caruachi – Macagua Transmission Line is located in the Puerto Ordaz area of Venezuela and interconnects the Caruachi and Macagua II Hydroelectric Power Plants. It is 28.6 km long with 69 towers over completely flat land flat between 80 and 90 m above sea level (masl). It has four conductors by phase (model ACAR 1.024.5 MCM 30/7) and was energized in December 2003.

On November 12, 2016 at 10:20 am, substation maintenance personnel reported to the Regional Control Center a loud noise in dead-end tower No. 4. It was also reported that an insulator was broken and detached. Immediately, Transmission Line Maintenance personnel moved to the site and found that an insulator that serves as the retention element between phases A and C was broken and detached at one of its ends. Fortunately, the conductor had not fallen since it was in a double chain arrangement. Initially, the insulator was inspected using binoculars, De-energization of the line was requested because significant damage was detected in the insulator bar that was supporting the mechanical load of the four conductors, as shown below. It can be seen that the failed insulator is supporting, in parallel, the mechanical traction exerted by the conductors of phases A and C. Consequently, the double polymeric insulator arrangement is operating at 400 kV phase-phase.

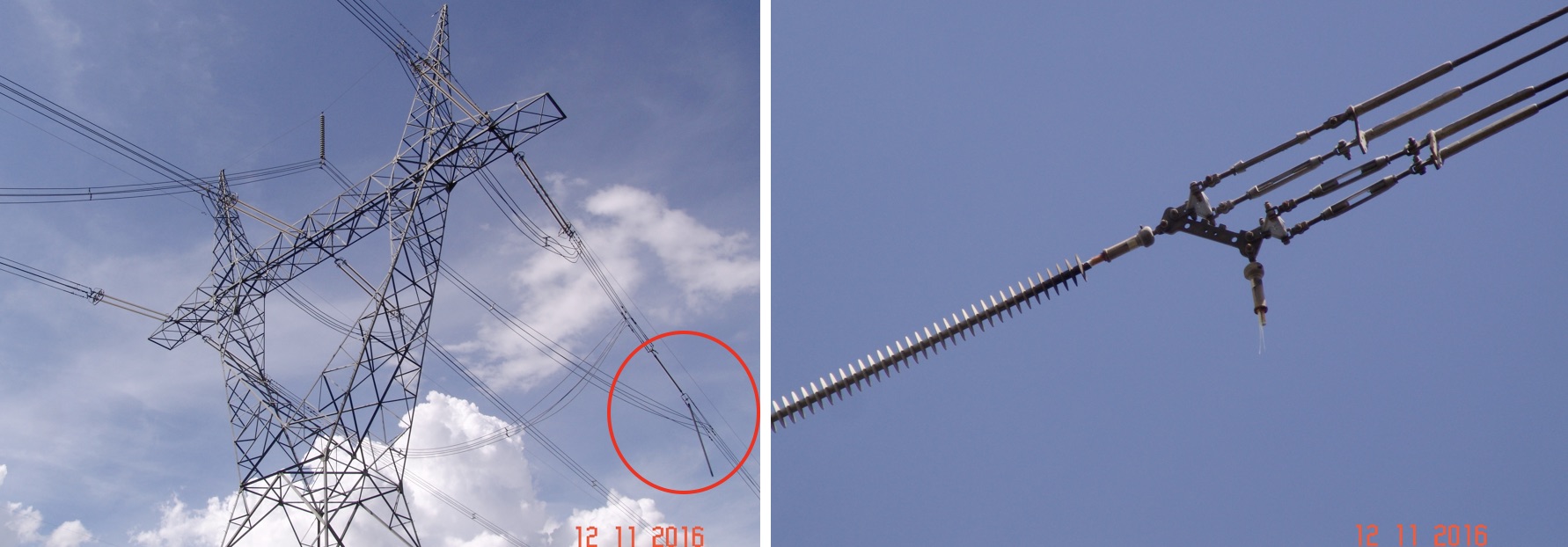

Transmission Line transmission line Brittle Fracture Failure of 400 kV Polymeric Insulator Location of fault on tower no
Location of fault on tower no. 4.
CLICK TO ENLARGE

Tower No. 4 is a special tower where the inversion or rotation of phase A and C is carried out to obtain the correct phase sequence for its entry into the arrival Substation. The following figure shows the arrangement and scheme by which phases are rotated.

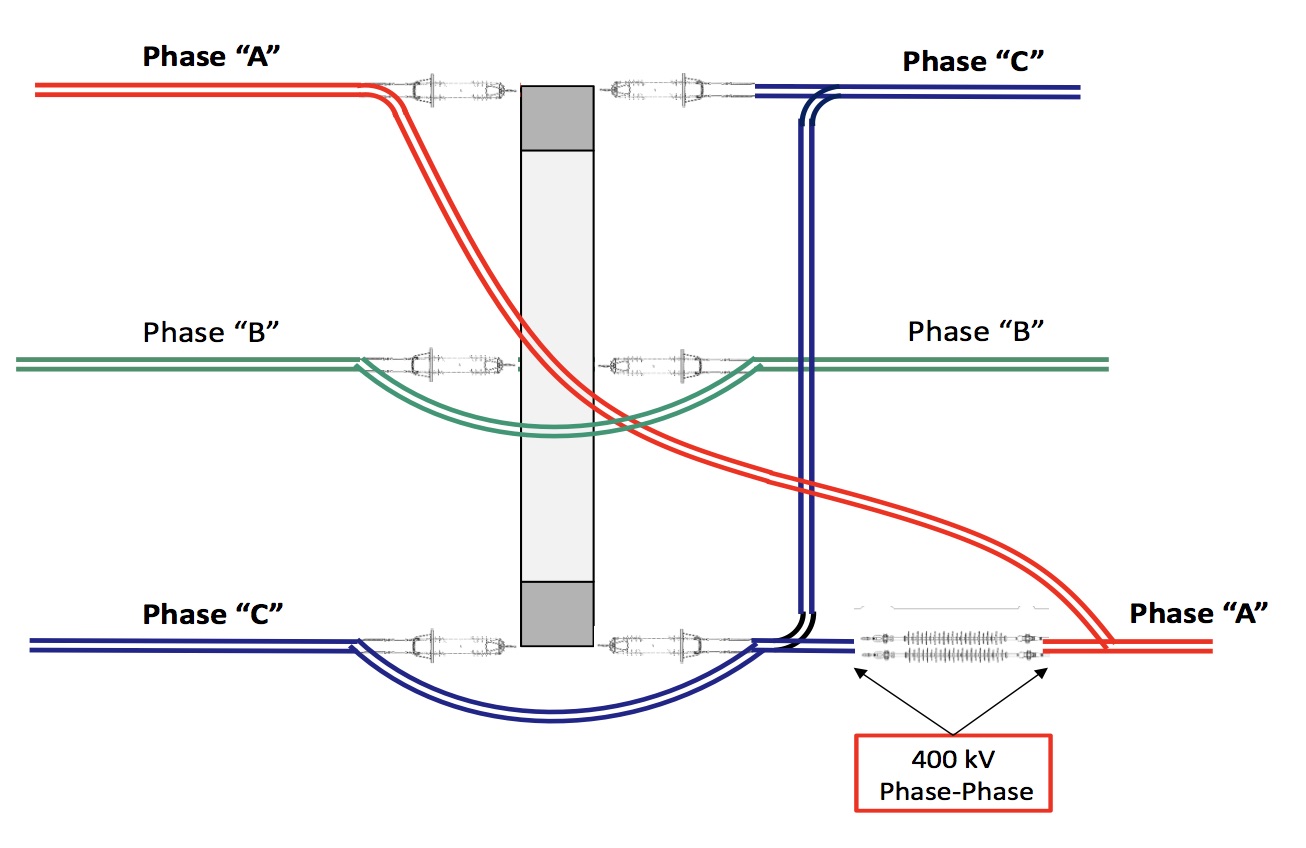

transmission line Brittle Fracture Failure of 400 kV Polymeric Insulator Rotation scheme of Phases A and B on tower no
Rotation scheme of Phases A and B on tower no. 4.
CLICK TO ENLARGE

To assess cause of the failure, a photographic record of the status of each insulator was made:

1. It was determined that all the insulators installed in Tower No. 4 had corona rings installed at both energized end and at tower end, except for the arrangement of double insulators that electrically separates phases A and C;

2. The insulator next to the one that had failed was in a critical state, with considerable loss of its polymeric cover as well as serious damage to the initial part of the fiberglass rod and pitting on the surface of hardware. Nevertheless, this insulator managed to withstand the mechanical tension of the conductors, calculated at 5.2 tons.

3. The insulator that had failed by Brittle Fracture was carefully disassembled and transferred to a laboratory where a scanning electron microscopy test could be performed. Several detached skirts were found on the ground.

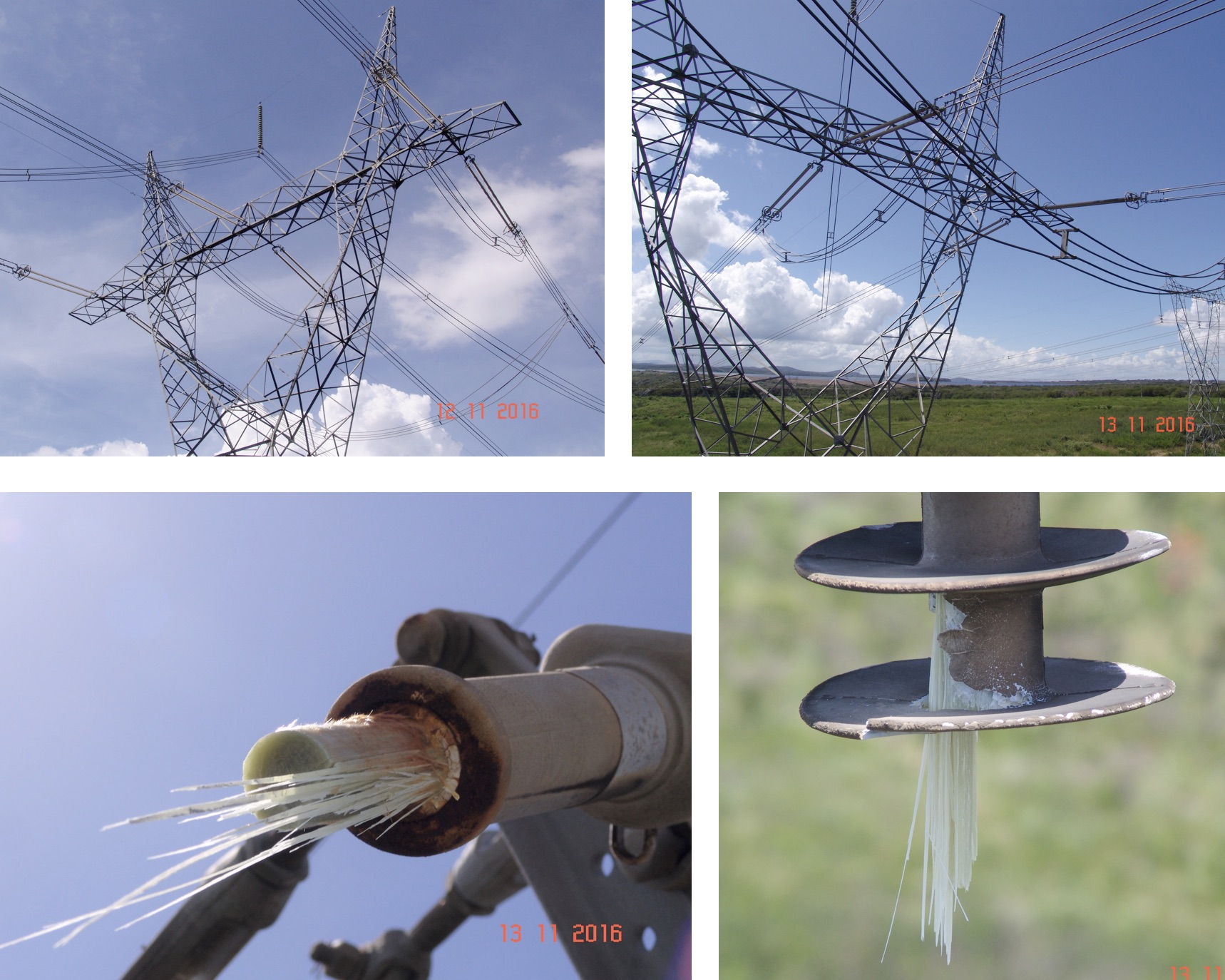

transmission line Brittle Fracture Failure of 400 kV Polymeric Insulator Insulator where brittle fracture occurred
General view of insulator where fracture occurred.
CLICK TO ENLARGE

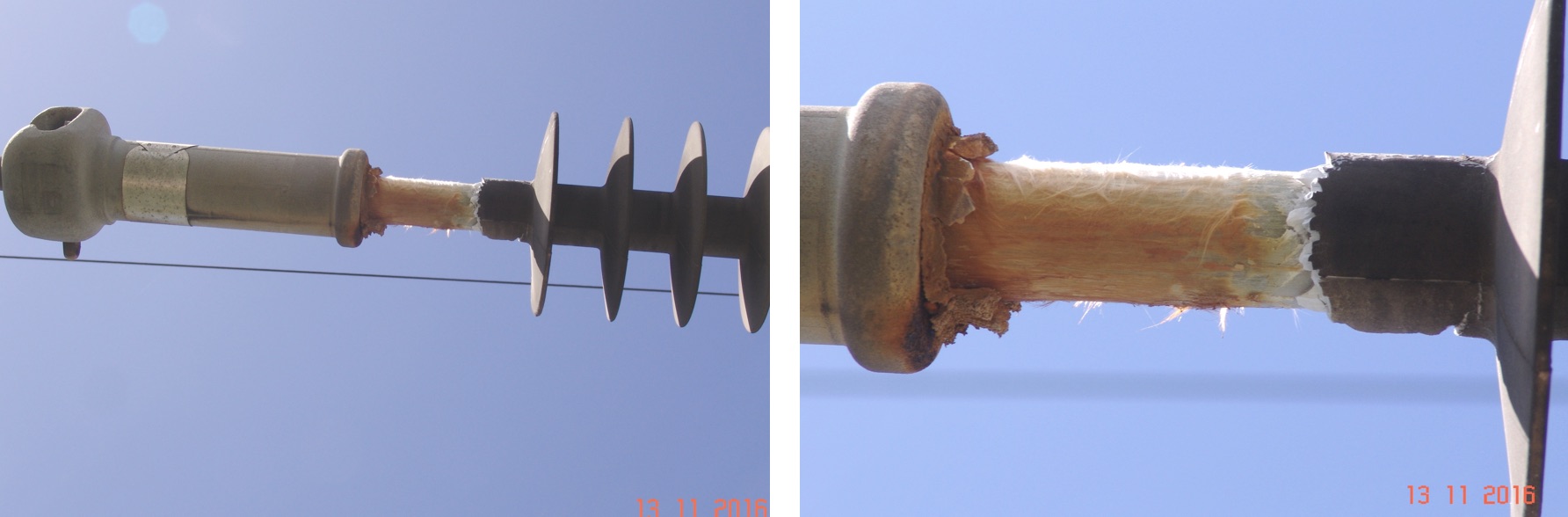

transmission line Brittle Fracture Failure of 400 kV Polymeric Insulator State of insulator core rod as result of loss of polymeric sheath

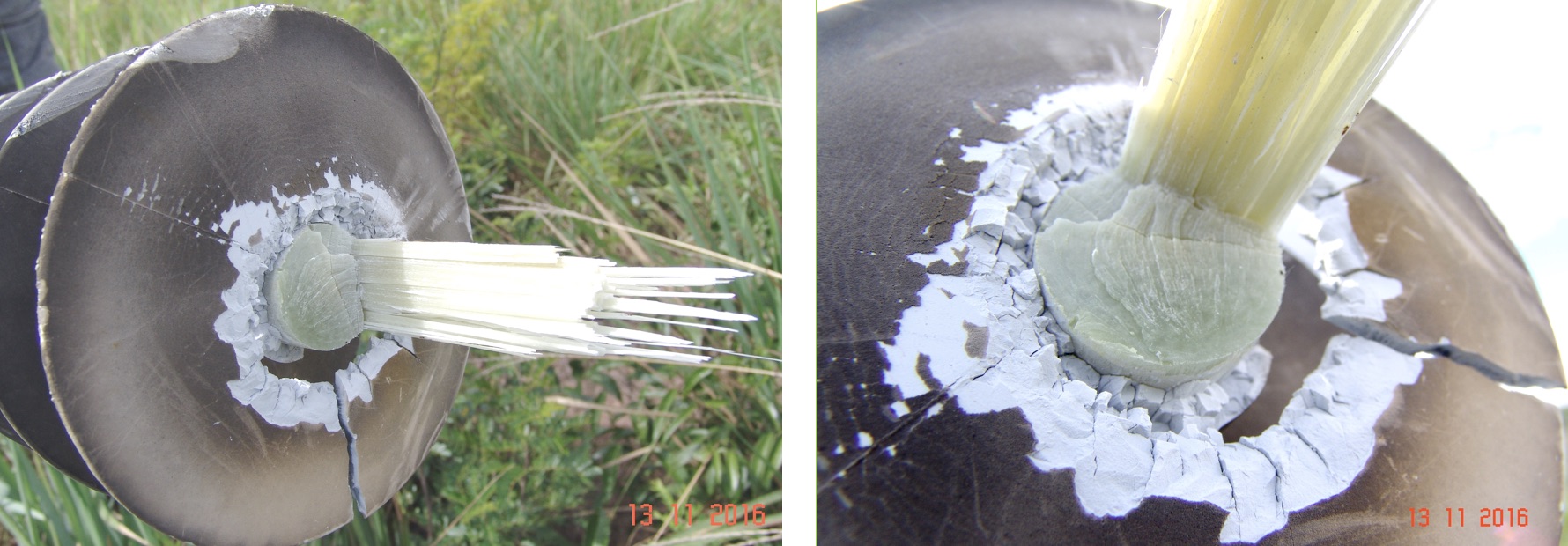

General view of Brittle Fracture cut in failed insulator. Degradation of silicone rubber and loss of hydrophobicity are also observed.
CLICK TO ENLARGE
transmission line Brittle Fracture Failure of 400 kV Polymeric Insulator View of brittle fracture cut in failed insulator
View of brittle fracture cut in failed insulator.
Degradation of silicone rubber and loss of hydrophobicity also observed.
CLICK TO ENLARGE
transmission line Brittle Fracture Failure of 400 kV Polymeric Insulator the complete background of this case and also propose a variety of recommendations resulting from what was investigated during this particular service failure

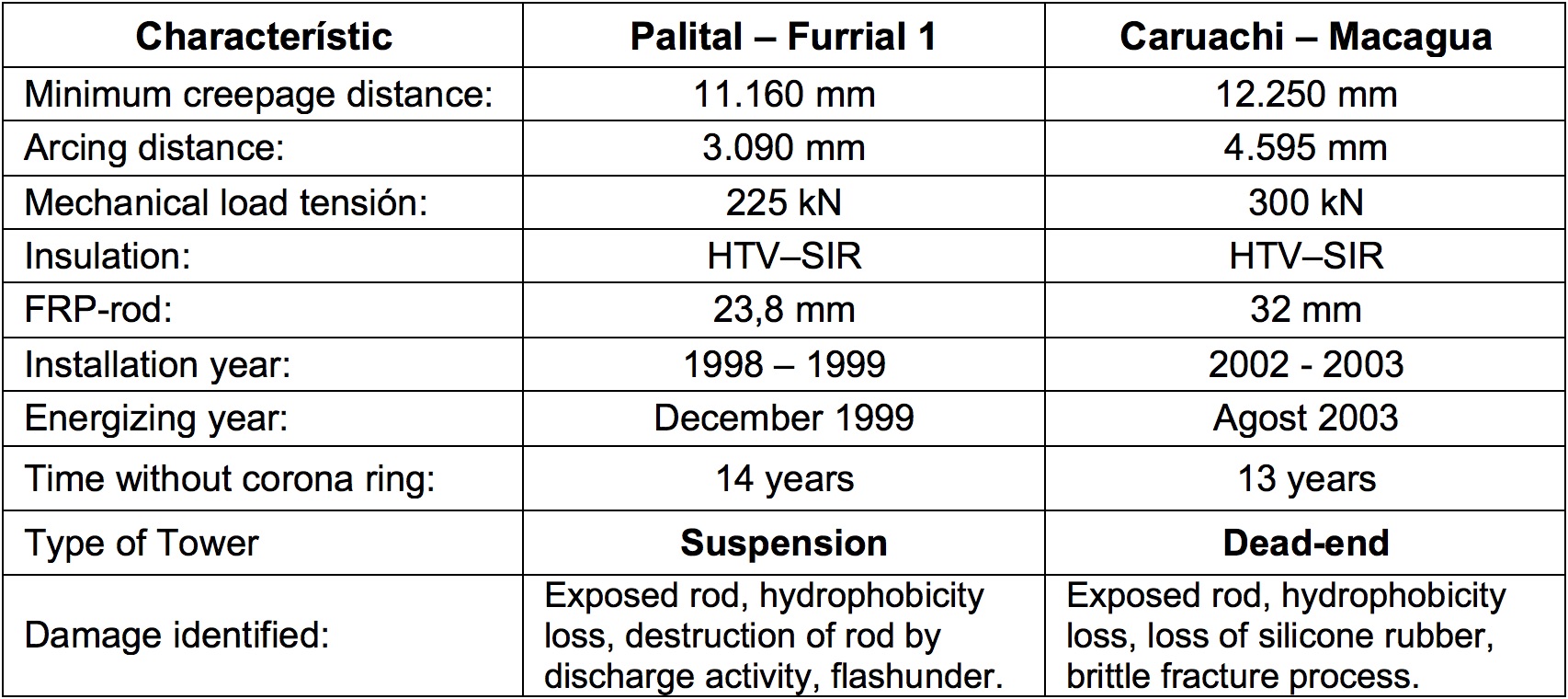

Table: Differences Between Failed Insulators in Venezuala Palital-Furrial Line (2015) versus Caruachi-Macagua Line
