Silicone Elastomers, Gels & Auxiliary Materials for Cable Accessories

March 28, 2019 • ARTICLE ARCHIVE, Cable Accessories
PPC Insulators

The first silicone cable accessories were developed in the late 1960s and appeared together with introduction of extruded XLPE cables. The main focus at the time was on a design with field-grading and insulating parts in a prefabricated body that allowed easy assembly and helped avoid errors in mounting. The first terminations and joints were still rather massive since the excellent electrical behavior of silicone was not yet fully understood. Still, test results and initial service experience compared to the then state-of-the-art polyurethane and other solutions proved encouraging. The basic concept of a prefabricated silicone elastomer body remained and has since been further refined to the point that today users benefit from a broad portfolio of different silicone elastomers and auxiliary materials for both medium and high voltage cable accessories. This edited recent contribution to INMR by Dr. Jens Lambrecht and Dr. Konrad Hindelang of Wacker Chemie in Germany deals with important aspects of this topic.


Types & Tasks for Cable Accessories

The majority of all power cables are extruded XLPE insulated cables. These consist of a conductor, an inner conductive layer, the main insulation layer, an outer conductive layer, an outer conductor and an outer insulation/jacket

Fig. 1: Typical XLPE insulated cable design. cable accessories Silicone Elastomers, Gels & Auxiliary Materials for Cable Accessories Typical XLPE insulated cable design

Fig. 1: Typical XLPE insulated cable design.
CLICK TO ENLARGE

At places where two cable sections are connected, theses layers have to be re-built in the same way by applying a cable joint or splice. At the cable termination, the layers have to be treated such that they can withstand all resulting electrical and environmental stresses. This is done by mounting a cable termination.

Fig. 2: Typical design of silicone elastomer cable joint (principle). cable accessories Silicone Elastomers, Gels & Auxiliary Materials for Cable Accessories Typical design of silicone elastomer cable joint

Fig. 2: Typical design of silicone elastomer cable joint (principle).
CLICK TO ENLARGE

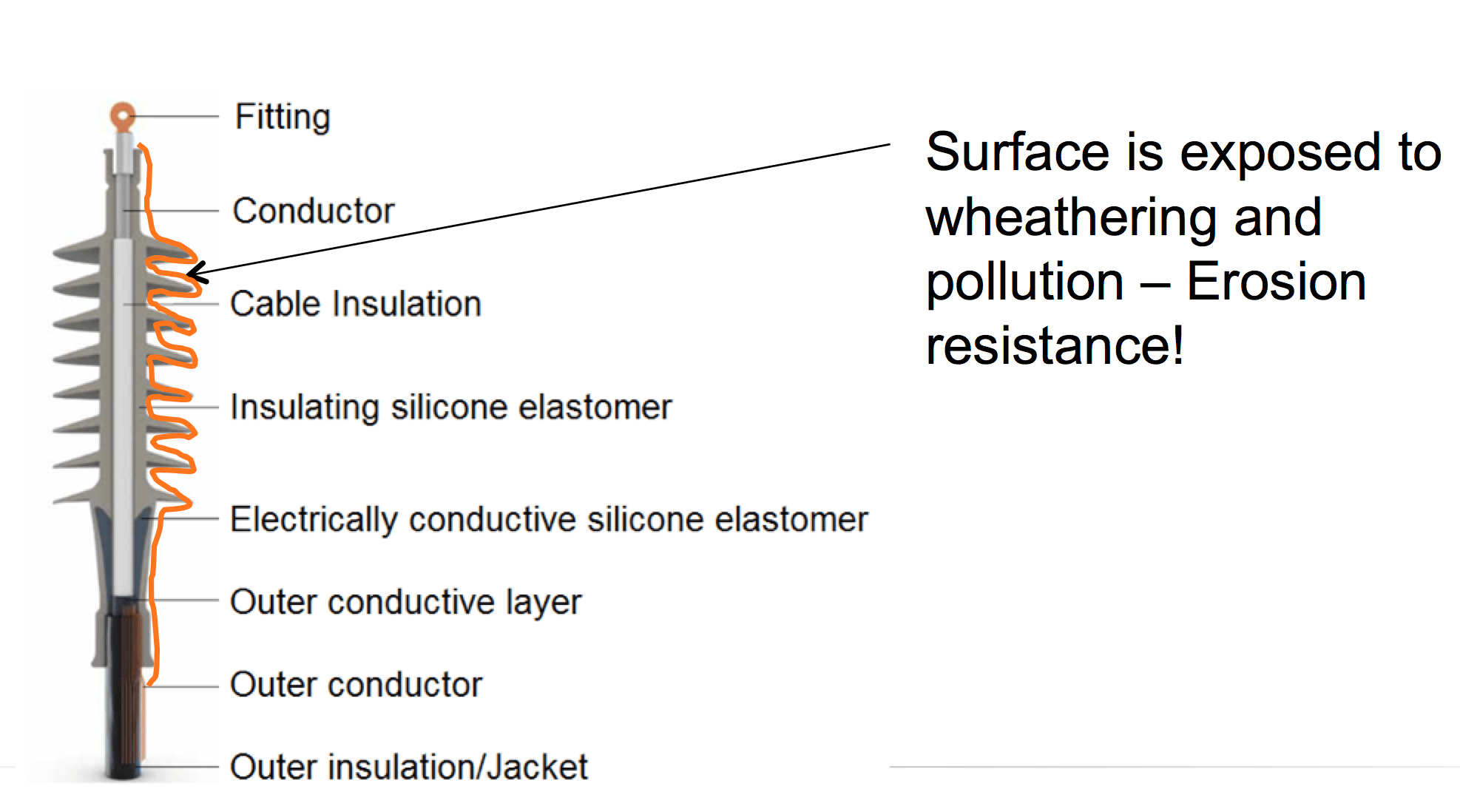

Fig. 3: Typical design of silicone elastomer cable termination (principle). cable accessories Silicone Elastomers, Gels & Auxiliary Materials for Cable Accessories Typical design of silicone elastomer cable termination

Fig. 3: Typical design of silicone elastomer cable termination (principle).
CLICK TO ENLARGE

Besides these main cable accessories, there are several combinations and modifications such as connectors and pluggable systems. The main resulting tasks include:

1. Electrical connection;
2. Field grading;
3. Sealing;
4. Withstanding weathering.

Medium voltage plug-in systems are a good example for the first task. A rather soft silicone elastomer cone is pressed by a metallic spring into the male resin part and provides for a perfect electrically insulated interface. Apart from the low hardness of the silicone elastomer, its high gas permeability is another advantage since any gas trapped in the interface diffuses out shortly after mounting. As mentioned, one of the main goals during early development of silicone accessories was to pre-fabricate a ready-to-use part consisting of all insulating and field grading parts. Fig. 5 shows an example of an older resulting design of joint. All grading parts in this example were made from conductive silicone elastomers. Other solutions applying silicone elastomers with high permittivity are also possible. Silicone elastomers, especially liquid silicone elastomers, have been found to be an ideal material for all necessary step-molding processes since they are low in viscosity and allow for good flow into the mold and towards the triple-points located between mold and pre-inserted conductive parts.

cable accessories Silicone Elastomers, Gels & Auxiliary Materials for Cable Accessories Silicone insulated medium voltage cable plug

Fig. 4: Silicone insulated medium voltage cable plug.
CLICK TO ENLARGE

Fig. 5: Field-grading parts in silicone elastomer joint (left: at cable side, right: covering connector, top: outer conductive layer). cable accessories Silicone Elastomers, Gels & Auxiliary Materials for Cable Accessories Screen Shot 2018 10 26 at 12

Fig. 5: Field-grading parts in silicone elastomer joint (left: at cable side, right: covering connector, top: outer conductive layer).
CLICK TO ENLARGE

Fig. 6: Cold shrink silicone joint widened and sitting at support spiral.  cable accessories Silicone Elastomers, Gels & Auxiliary Materials for Cable Accessories Screen Shot 2018 10 26 at 12

Fig. 6: Cold shrink silicone joint widened and sitting at support spiral.
CLICK TO ENLARGE

Fig. 7: Silicone termination showing perfect hydrophobicity cable accessories Silicone Elastomers, Gels & Auxiliary Materials for Cable Accessories Screen Shot 2018 10 26 at 12

Fig. 7: Silicone termination showing perfect hydrophobicity.
CLICK TO ENLARGE

Proper sealing is another important task of a silicone cable accessory. The outstanding mechanical properties of soft silicone elastomers facilitate slip-on mounting while the perfect and lasting ability to shrink to original dimensions, even after long expansion time, allows for cold-shrink technology. Both mounting technologies also benefit from the high gas permeability of silicones. Proper mounting and sealing are supported as well by special silicone pastes available for T&D applications. Pastes can be modified so as to allow easy dismantling even after long time or of a migrating type that disappears from the interface in a short time. Most important in the case of outdoor applications is the general capability of silicone elastomers to withstand weathering. Nevertheless, silicones for these applications are specially modified to ensure lasting stability against weathering stresses as well as the possibility of resulting electrical and erosive stresses during service. An example, shown in Fig. 7, is a termination that provides perfect hydrophobicity. Experience and formulating know-how allow for silicones that can withstand the rather short-term stresses encountered during type tests (e.g. salt fog) as well as long-term stresses during service. It is important to consider pollution affecting outdoor cable accessories. In this regard, the ability of suitable silicone elastomers not only to remain hydrophobic but also to show good hydrophobicity transfer to the pollution layer is important.

Types of Silicone Materials

The principal materials used in silicone cable accessories are silicone elastomers. The early years of their production were characterized by 2-component, low viscosity elastomers designed to cure at low temperatures and parts were mainly cast or vacuum cast. Production output at the time was low compared to the sophisticated technologies available today. Nevertheless, these materials are still available, e.g. for prototyping or for manufacturing of small series of products. State-of-the-art materials for cable accessories are either low hardness, high-consistency silicone rubber (HCR), available as peroxide curing types or as 1- or 2-component addition curing materials for fast and very fast injection molding applications or extrusion respectively. Press molding is not recommended since state-of-the-art accessories require a high accuracy of molds. The other option is using liquid silicone rubbers (LSR) that usually come as 1 to 1 two component systems. These materials are now used to manufacture all types of cable accessories. LSRs with 30 … 50 Shore are typically applied for high-throughput injection molding. Modified versions of HCR and LSR with low electrical volume resistivity or high permittivity are also available.

Fig. 8: High consistency silicone rubber (HCR) being packed in automated machine. cable accessories Silicone Elastomers, Gels & Auxiliary Materials for Cable Accessories Screen Shot 2018 10 26 at 12

Fig. 8: High consistency silicone rubber (HCR) being packed in automated machine.
CLICK TO ENLARGE

Fig. 9: Liquid silicone rubber (LSR) ready to be shipped.  cable accessories Silicone Elastomers, Gels & Auxiliary Materials for Cable Accessories Screen Shot 2018 10 26 at 12

Fig. 9: Liquid silicone rubber (LSR) ready to be shipped.
CLICK TO ENLARGE

Fig. 10: Different silicone pastes used as auxiliary materials for mounting silicone cable accessories. cable accessories Silicone Elastomers, Gels & Auxiliary Materials for Cable Accessories Screen Shot 2018 10 26 at 12

Fig. 10: Different silicone pastes used as auxiliary materials for mounting silicone cable accessories.
CLICK TO ENLARGE

Fig. 11: Silicone gels, especially modified types, are starting to be applied for medium voltage cable accessories. cable accessories Silicone Elastomers, Gels & Auxiliary Materials for Cable Accessories Screen Shot 2018 10 26 at 12

Fig. 11: Silicone gels, especially modified types, are starting to be applied for medium voltage cable accessories.
CLICK TO ENLARGE
