Pre-Coating RTV Silicone onto Glass Cap & Pin Insulators

Advertisement
PPC Insulators cap & pin Pre-Coating RTV Silicone onto Glass Cap & Pin Insulators banner530x150 modified

Traditionally, application of RTV silicone material has been a remedial measure to mitigate pollution-related flashovers of porcelain substation insulators suffering poor service performance. Indeed, coatings have been viewed mainly as a maintenance product applied at substations in polluted areas in place of alternatives such as greasing or washing. By contrast, in situ application of RTV material to cap & pin strings on overhead lines has always been perceived as problematic due not only to the working height but also the difficulty in applying the coating evenly to the underside of each disc. Recently, there has been growing interest to coat toughened glass cap & pin insulators at the time of their manufacture so as to give them a uniform, highly adherent hydrophobic surface before being put into service. This solution is now being applied with good results.

Advertisement
cap & pin Pre-Coating RTV Silicone onto Glass Cap & Pin Insulators CSL Advertisement e1477326535980
Advertisement
GIG Advertisement cap & pin Pre-Coating RTV Silicone onto Glass Cap & Pin Insulators GIG Jun 28

It is estimated that several million RTV coated cap & pin insulators are already in service. Of these, more than a million are factory pre-coated glass discs – of which some 600,000 alone are installed on AC HV and EHV lines belonging to the Italian grid operator, Terna. In addition, some 2000 such insulators are part of a field trial on HVDC lines. Service experience has been positive and regular washing is no longer deemed necessary at sites where pre-coated insulators replaced conventional glass strings. Similar experience has been reported in the Americas, the Middle East and China, where these insulators are installed in heavily polluted areas.

The growth of such installations worldwide appears exponential, confirming positive market response and positioning pre-coated glass insulators as an alternative to silicone composite types. It should be noted, however, that the number of strings corresponding to about a million pre-coated cap & pin discs is still less than 100,000. This is still significantly lower than the market for composite insulators.

Advertisement
BPG International Advertisement cap & pin Pre-Coating RTV Silicone onto Glass Cap & Pin Insulators BPG Banner

Up to now, pre-coated ceramic insulators have been used mainly as a remedial measure for refurbishing existing lines with unsatisfactory pollution performance. Expanding their application to new projects will therefore require comparing life cycle costs of insulator alternatives and listing the pros and cons of each in terms of acquisition cost, maintenance costs (including diagnostics and live-line work) and replacement cost at end of life.

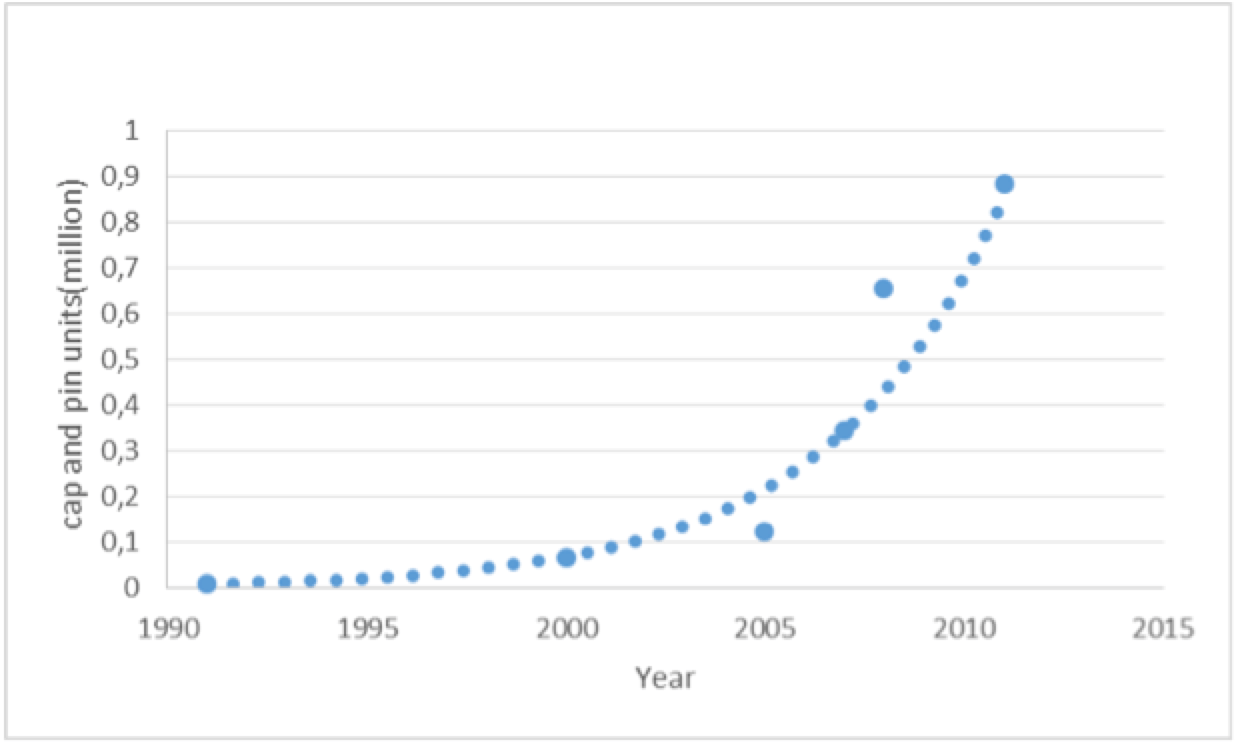

Fig. 1: Estimated market growth for pre-coated cap & pin insulator units (excludes Chinese data). cap & pin Pre-Coating RTV Silicone onto Glass Cap & Pin Insulators Screen Shot 2016 06 10 at 14
Fig. 1: Estimated market growth for pre-coated cap & pin insulator units (excludes Chinese data).

As emphasized in recent IEEE papers, coating quality is critical to assure good service performance. This means that the formulation must assure good tracking and erosion resistance while also maintaining long-term hydrophobicity. Final quality is also determined during the production phase since every glass disc must be perfectly clean before applying the RTV material. Moreover, the coating should be sufficient as well as uniform in thickness, i.e. more than 280 μm at the bottom of each glass disc and more than 350 μm on the upper surface. Post-application curing of the layer must also be conducted under proper temperature and humidity.

Advertisement
cap & pin Pre-Coating RTV Silicone onto Glass Cap & Pin Insulators INTEGRATED Engineering Software Mar 11

Lastly, quality should be verified by suitable tests based on available guidelines. In particular, in 2002 IEEE issued Standard 1523 “IEEE Guide for the Application, Maintenance and Evaluation of Room Temperature Vulcanizing (RTV) Silicone Rubber Coatings for Outdoor Ceramic Insulators”). Similarly, CIGRE issued Brochure 478-2011 dealing with “Important Material Properties of RTV Silicone Rubber Insulator Coatings”. The above Guidelines, however, are not directly applicable to pre-coated insulators and there is no internationally agreed specification yet available for qualifying such insulators. IEC 62896 Technical Specification “Hybrid Insulators”, dealing with an insulating mechanical load-bearing core protected by a defined polymeric housing geometry explicitly excludes RTV coated ceramics. Still, useful indications for specifying pre-coated insulators are given in past IEEE papers (published by the DEIS Outdoor Insulation Technical Committee and by Committee members on DEIS IEEE Transactions). These include visual inspection as well as tests to verify adhesion and thickness of the coating and also tracking and erosion properties. Guidelines are also provided for suitable packing, shipping, installation and subsequent maintenance. But reproducible and representative pollution tests have yet to be defined for coated insulators, as is still also the case for polymeric insulators. Tests are still being looked at that best simulate real service environments since different results can be obtained depending on test conditions (see Fig. 2).

Advertisement
Yizumi Ad cap & pin Pre-Coating RTV Silicone onto Glass Cap & Pin Insulators INMR YIZUMI July edition

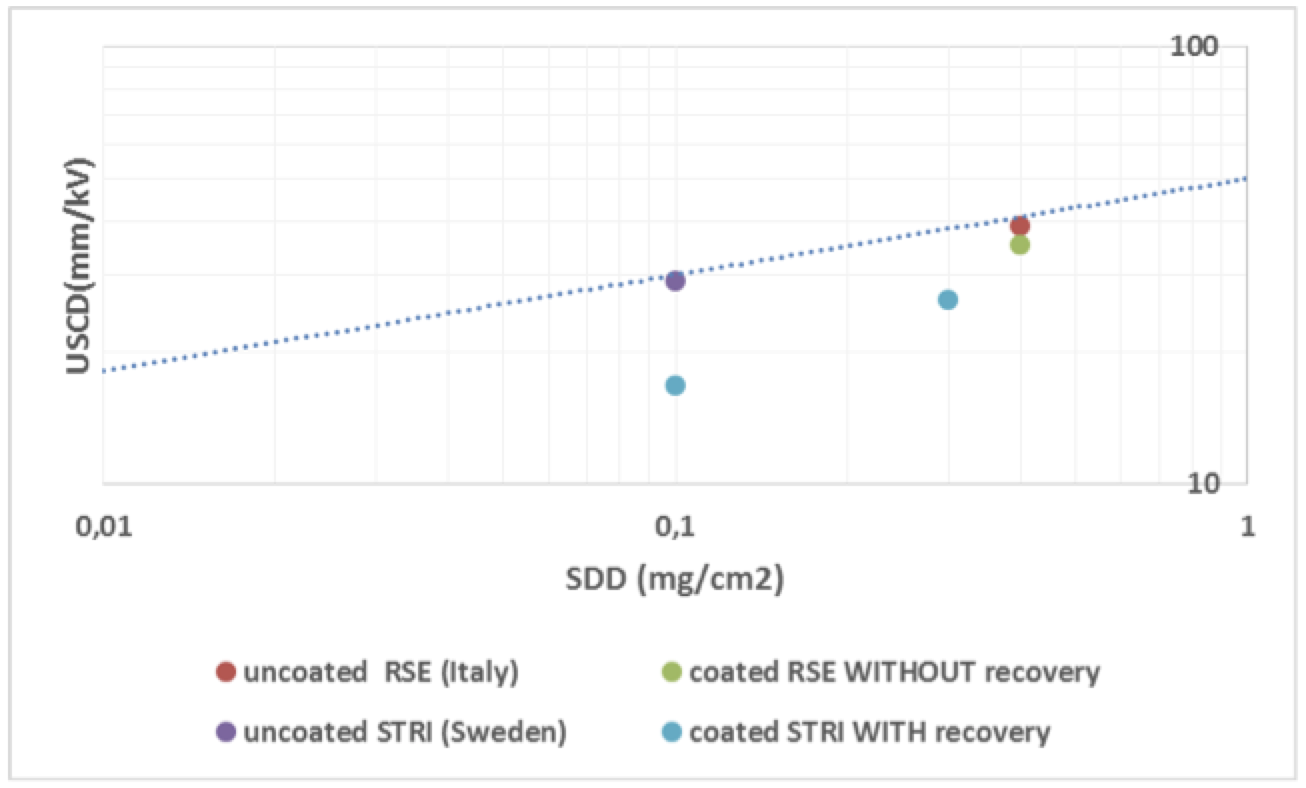

Fig. 2: USCD as function of SDD (RSE data from ISH 2013). cap & pin Pre-Coating RTV Silicone onto Glass Cap & Pin Insulators Screen Shot 2016 06 10 at 14
Fig. 2: USCD as function of SDD (RSE data from ISH 2013).

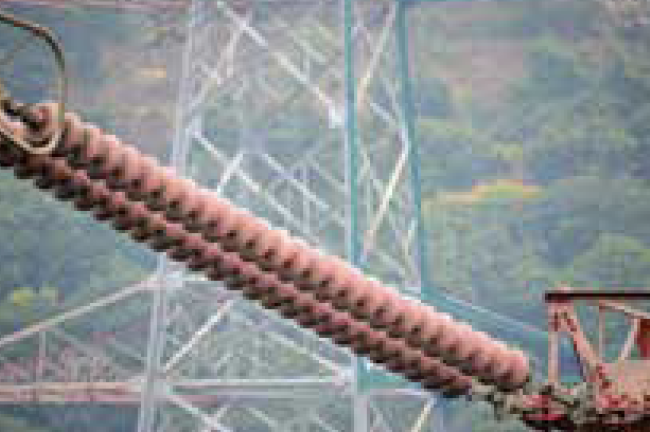

Coated glass string on 500 kV line near industrial and coastal pollution. cap & pin Pre-Coating RTV Silicone onto Glass Cap & Pin Insulators Screen Shot 2016 06 10 at 14
Coated glass string on 500 kV line near
industrial and coastal pollution.



Advertisement
cap & pin Pre-Coating RTV Silicone onto Glass Cap & Pin Insulators OFIL banner 300X125 July1
Advertisement
Desma Advertisement cap & pin Pre-Coating RTV Silicone onto Glass Cap & Pin Insulators Desma banner Apr 26



















Alberto Pigini
