Fault Current Withstand Capability

February 2, 2019 • Arresters, ARTICLE ARCHIVE, Woodworth on Arresters
PPC Insulators

There are two types of fault currents that can appear on power systems: ground and phase-to-phase. More important with regard to arresters is the former, which is basically the current that flows through the circuit when there is a short to ground. The maximum available fault current during such an event will vary along the length of the circuit, with more current available when the short occurs closer to the source. As far as arresters are concerned, the fault current of real consequence is that which flows through a shorted or failed arrester. Ground fault current that flows past the terminals of a functioning arrester to a short somewhere down the line will have no affect on that arrester.

When ground fault current is triggered by a failing or failed arrester, available fault current will flow initially through and around its internal components. But if that current flow is not diverted to the outside in less than a full cycle, the probability of an explosive event will increase significantly. Rapidly providing an external path for the fault current around the arrester is the basic scheme used by arrester manufacturers to achieve good short circuit withstand capability.

Rapid arc transfer for those arrester designs that contain substantial internal air volume, such as porcelain-housed or polymeric tube type, is achieved using well-developed vents on the ends of the unit. Under a perfect arc transfer scenario, these vents open rapidly and expel the evolving hot ionized gas, forming a lower impedance path. For solid core arrester designs, such as the wrap type, the gases generated from the event burst through the sides of the polymeric housing and form an external pathway. Both systems have been in use for many years.

Presently, in North America, 65 kA of available fault current at a substation is not uncommon. However 80 kA is now becoming more common and 90 kA seems around the corner. Not all arresters suppliers can offer 80 kA withstand capability and, as yet, no suppliers offer 90 kA. Clearly changes will be necessary. For an arrester design to be certified at higher short circuit withstand capabilities, it will have to pass a series of short circuit tests, as specified in IEC 60099-4 as well as IEEE C62.11. (Fortunately, these test specifications are identical through co-operation between the working groups that created them and which were unified between 2006 and 2009).

The short circuit test series is the most onerous of all tests to be performed on arresters. Basically, each arrester must be tested at two or three current levels and the fault current must flow through the arrester from 0.2 to several seconds. At the end, no parts are permitted to fall outside a circle whose radius is the height of the arrester. Moreover, no fire can be sustained for more than a few minutes.

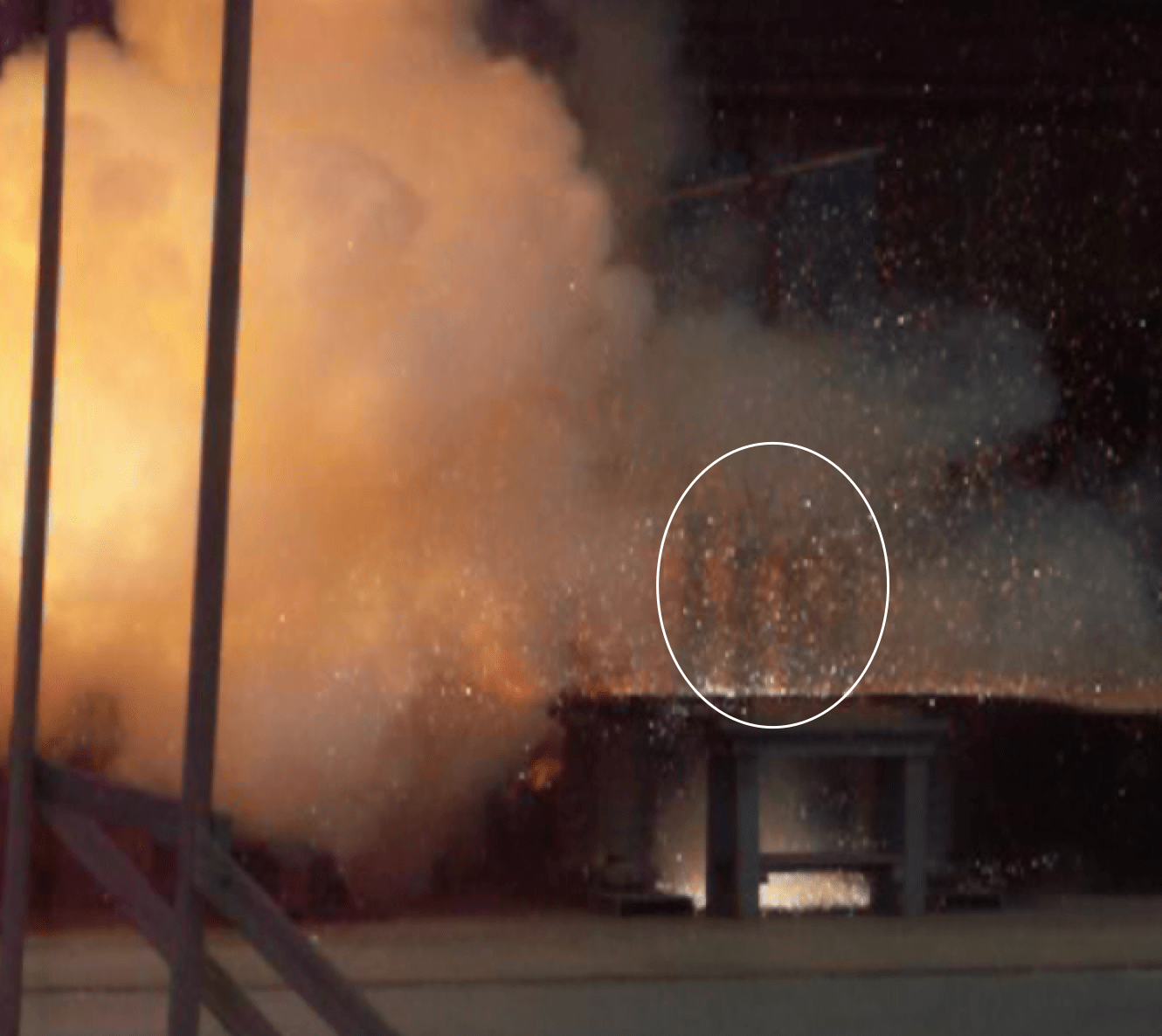

Testing four 70 kV MCOV polymer-housed arresters side by side at 40kA. The arc rapidly exited the arrester and found a home elsewhere in the lab circuit. (Fault Current Withstand Capability) Fault Current Fault Current Withstand Capability Testing four 70 kV MCOV polymer housed arresters side by side at 40kA

Testing four 70 kV MCOV polymer-housed arresters side by side at 40kA. The arc rapidly exited the arrester and found a home elsewhere in the lab circuit.
CLICK TO ENLARGE

There are three aspects of this test that make it challenging: first, the test currents are either hard to attain or hard to maintain; secondly, set-up is laborious; and thirdly, simulating an overloaded arrester is as much ‘art’ as science. Only the largest high power laboratories are able to perform this test and, when the test is applied to higher voltage rated samples, that number becomes even more limited.

When the short circuit tests were unified, there were two major improvements. The first was that a third current level was added in the case of the test for porcelain-housed arresters. It was hoped that testing at this intermediate current level would reduce the number of reported violent failures of certified porcelain-housed arrester designs.

The second improvement was that the first half-cycle fault-current asymmetry was no longer required in the case of polymeric housings with no appreciable internal gas volume. This improvement was predicated on results of tests reported in 2004 by INMR columnist Dr. René Smeets. It was found at that time that the rate of energy input into the arc, still internal to the arrester just after short-circuit initiation, was much faster with symmetrical current than with asymmetric current. It was felt that testing with the symmetrical current and higher rate of energy input therefore imposed more severe duty on polymeric arresters with the solid core design than with asymmetric current. Fortunately, this test is easier to run than the standard asymmetric test still required for porcelain arresters.

Because fault current tests can only be run at voltages well below the rating of most arresters, special failure schemes had to be devised. The arrester failure sequence and the short circuit event are completed one after the other, sometimes in separate labs. While there are upper and lower limits on test parameters, these are quite broad and the final pass/fail results of the test can be modified significantly if the transition from one sequence to the other is not performed consistently or correctly. When these parameters are more constrained and the sequence more standardized, the result will be more consistent testing from laboratory to laboratory and from one design to another.

Jonathan Woodworth
