Comparing UV & IR Diagnostic Inspection of Lines & Substations

One of the issues in maintenance of overhead lines and substations relates to better understanding what is being revealed during ultraviolet or infrared inspections of equipment and hardware. Do these two technologies highlight the same problem or are they complementary, each revealing a different aspect of that problem? Moreover, is it correct to assume that each different type of potential defect carries some unique ‘signature’ and therefore requires its own specific inspection technology? This 2014 INMR article, contributed by Roel Stolper, an expert researcher in diagnostics with CSIR in South Africa, addressed these questions.


Typical Problems on Lines

Electric utilities and research organizations worldwide have launched programs to investigate and classify all the typical faults that occur on overhead lines. A past Working Group within CIGRE, for example, has been dedicated to better understanding the behaviour of polymeric insulators under different environmental conditions

An ultraviolet and infrared recoding of the same phenomena show presence of corona but with no heat dissipation inspection line Comparing UV & IR Diagnostic Inspection of Lines & Substations An ultraviolet and infrared recoding of the same phenomena show presence of corona but with no heat dissipation
Fig. 1: An ultraviolet and infrared recoding of the same phenomena show presence of corona but with no heat dissipation
CLICK TO ENLARGE
Infrared recording of capacitor bank.Bus bar clamp with corona discharges. inspection line Comparing UV & IR Diagnostic Inspection of Lines & Substations Infrared recording of capacitor bank
(Left) Fig. 2: Infrared recording of capacitor bank. (Right) Fig. 3: Bus bar clamp with corona discharges.
CLICK TO ENLARGE
Corona recording.Infrared recording of same object. inspection line Comparing UV & IR Diagnostic Inspection of Lines & Substations Corona recording
(Left) Fig. 4a: Corona recording. (Right) Fig. 4b: Infrared recording of same object.
CLICK TO ENLARGE
Acoustic inspection (Photo: Courtesy ndb Technologie).Ultraviolet corona camera inspection. inspection line Comparing UV & IR Diagnostic Inspection of Lines & Substations Acoustic inspection
(Left) Fig. 5: Acoustic inspection (Photo: Courtesy ndb Technologie).(Right) Fig. 6: Ultraviolet corona camera inspection.
CLICK TO ENLARGE

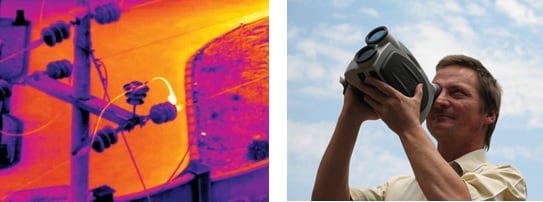

Infrared camera inspection (Photo: Courtesy FLIR). Combined ultraviolet, infrared and visible camera inspection. inspection line Comparing UV & IR Diagnostic Inspection of Lines & Substations Infrared camera inspection
(Left) Fig. 7: Infrared camera inspection (Photo: Courtesy FLIR).(Right) Fig. 8: Combined ultraviolet, infrared and visible camera inspection.
CLICK TO ENLARGE
Overview of Different Line Components as well as Potential Associated Problems & Required Spectrum of Detection inspection line Comparing UV & IR Diagnostic Inspection of Lines & Substations Different Line Components
* Based on interviews with system operators across South Africa.
CLICK TO ENLARGE

Current Inspection Technologies

Years of experience in line inspection have indicated that there is still no single best technology that meets every need, i.e. there is no diagnostic sensor that will detect and locate all the possible different faults that can appear on a line. Given this, it is probably correct to state that the ideal inspection tool is one that integrates different types of sensors into a single instrument

Advertisement
inspection line Comparing UV & IR Diagnostic Inspection of Lines & Substations CSL Advertisement e1477326535980
Advertisement
Ofil Systems inspection line Comparing UV & IR Diagnostic Inspection of Lines & Substations OFIL banner 300X125 July1
Principles of ultrasound and camera detectors. inspection line Comparing UV & IR Diagnostic Inspection of Lines & Substations princeple 1024x1024
Fig. 9: Principles of ultrasound and camera detectors.
CLICK TO ENLARGE

Generally speaking, modern inspection technology can be classified into two main groups: ultrasound radio telescopes and camera detectors. Both make use of the basic phenomenon that every defect emits radiation (energy in the electromagnetic spectrum) that can then be detected and recorded by an inspection device.

Basic Principle of Ultrasound Detectors

A round dish focuses ultrasound radio waves onto an RF detector (microphone) that amplifies and presents any weak signal detected to the operator by means of sound produced by an earphone.

Basic Principle of Camera Detectors

Light from a source is collected by a lens, projected through a filter onto a detector that converts the light energy into electric signals. The signals are electronically manipulated into a raster image and displayed to the operator.

Principles of ultrasound and camera detectors. Multi-spectral camera system. inspection line Comparing UV & IR Diagnostic Inspection of Lines & Substations Ultrasound disk camera
(Left) Fig. 10:Ultrasound disk.(Right) Fig. 11: Multi-spectral camera system.
CLICK TO ENLARGE
Fig. 12: UVc overlaid onto visible image showing two corona sources: dry band and discharge from a protrusion. Discharge is offset to left due to wind. Fig. 13: Thermal image showing slight heat source. inspection line Comparing UV & IR Diagnostic Inspection of Lines & Substations UVc overlaid onto visible image
(Left) Fig. 12: UVc overlaid onto visible image showing two corona sources: dry band and discharge from a protrusion. Discharge is offset to left due to wind.(Right) Fig. 13: Thermal image showing slight heat source.
CLICK TO ENLARGE

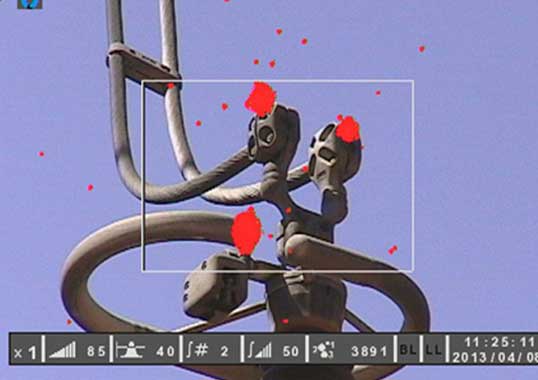

Fig. 14: Conductor termination with only corona discharges present due to protrusion. inspection line Comparing UV & IR Diagnostic Inspection of Lines & Substations Conductor termination with only corona
Fig. 14: Conductor termination with only corona discharges present due to protrusion.
CLICK TO ENLARGE
Polymeric insulator with corona surface discharge and severe internally generated infrared heat. inspection line Comparing UV & IR Diagnostic Inspection of Lines & Substations Polymeric insulator with corona surface
Fig. 15: Polymeric insulator with corona surface discharge and severe internally generated infrared heat.
CLICK TO ENLARGE
Ultraviolet and infrared red recording of discharge activity at corona ring. inspection line Comparing UV & IR Diagnostic Inspection of Lines & Substations Ultraviolet and infrared red recording
Fig. 16: Ultraviolet and infrared red recording of discharge activity at corona ring.
CLICK TO ENLARGE
Glass insulator string with dry band activity (left corona and right infrared recording). inspection line Comparing UV & IR Diagnostic Inspection of Lines & Substations Glass insulator string with dry band activity
Fig. 17: Glass insulator string with dry band activity (left corona and right infrared recording).
CLICK TO ENLARGE
Polymeric insulator, corona and infrared activities at dead end of insulator. inspection line Comparing UV & IR Diagnostic Inspection of Lines & Substations Polymeric insulator corona and infrared
Fig. 18: Polymeric insulator, corona and infrared activities at dead end of insulator.
CLICK TO ENLARGE
Polymeric insulator, live end with corona and infrared hotspot. inspection line Comparing UV & IR Diagnostic Inspection of Lines & Substations Polymeric insulator live end
Fig. 19: Polymeric insulator, live end with corona and infrared hotspot.
CLICK TO ENLARGE
Link with hot spot (middle) at contact surfaces and corona at disks (left hand). inspection line Comparing UV & IR Diagnostic Inspection of Lines & Substations Link with hot spot
Fig. 20: Link with hot spot (middle) at contact surfaces and corona at disks (left hand).
CLICK TO ENLARGE

The images shown in Figs. 12 to 20 are from various ultraviolet and infrared camera recordings of electromagnetic radiation related to unique defects occurring in line components. For example, a simple structural defect (e.g. a cut in a silicone insulator housing or a damaged ceramic disc) generates corona activity due to distortion of as well as increase in electric field. Similarly, an internal defect in a composite insulator can result in leakage current along the FRP core rod, causing heat dissipation. Viewed this way, it is clear that corona and thermal cameras are essentially complementary and that no single inspection technology is inherently superior. One can therefore also conclude that, ideally, IR and UV inspection should be conducted simultaneously.

Advertisement
BPG International Advertisement inspection line Comparing UV & IR Diagnostic Inspection of Lines & Substations BPG Banner

To demonstrate: Fig. 14 shows ultraviolet and infrared recordings of the same object. There is only corona activity present due in this case to sharp edges on the clamps. But there is no heat dissipation, suggesting that corona does not necessarily generate heat. Fig. 15 shows a defective polymeric insulator with corona activity at the sheds as well as internal defects that produce heat.

Ultraviolet/Infrared Inspection with Single Device

Corona discharges are detected using an ultraviolet detector that converts ultraviolet radiation to the wavelengths that can be seen by the human eye. This same principle applies to infrared heat radiation detected by the IR uncooled micro-bolometer and subsequently converted to wavelengths in the visible spectrum.

In simple physical terms, corona is plasma discharge whenever ambient gases are ionized. During the subsequent de-ionization phase, photons are emitted with emission lines related to the spectral properties of these gases. Air is made up of about 80% nitrogen, which has its dominant spectral lines in the UVA and UVB spectrum and minor lines in the UVC spectrum. The spectrum where corona radiation appears is shown in Fig. 21.

Spectral lines of corona radiation with peaks at 340 and 360nm. inspection line Comparing UV & IR Diagnostic Inspection of Lines & Substations Spectral lines of corona radiation
Fig. 21: Spectral lines of corona radiation with peaks at 340 and 360nm.
CLICK TO ENLARGE
Illustration of Planck’s law. inspection line Comparing UV & IR Diagnostic Inspection of Lines & Substations Illustration of Plancks law
Fig. 22: Illustration of Planck’s law.
CLICK TO ENLARGE



Advertisement
inspection line Comparing UV & IR Diagnostic Inspection of Lines & Substations INTEGRATED Engineering Software Mar 11

















In regard to heat radiation, any material emits at a wavelength that depends on body temperature, its so-called kinetic surface energy. According to Wien’s displacement law, peak wavelength, λmax, is at 2898/T, where λ is expressed in micrometers (1.10-6) and T is temperature in degrees Kelvin. Simple calculation reveals that a body at 27°C emits peak radiation at 10.55 μm such that, for example, a clamp at 100°C will have maximum radiation at 7.76 μm.

Calculation shows that, for any line inspection application where there are only low temperature sources, a heat detector is required that converts radiation at 8 -10 μm wavelengths into the visible spectrum. There are a number of heat detectors available on the market and these are classified according to spectral sensitivity as determined by material composition of the detector.

Example of response curves. inspection line Comparing UV & IR Diagnostic Inspection of Lines & Substations response curves
Fig. 23: Example of response curves.
CLICK TO ENLARGE

The mercury cadmium telluride (MCT) and Quantum Well (QWIP) detectors, for example, are relatively expensive since Sterling engines are required to cool them to -70° C. The micro-bolometer detector, by contrast, is used by many camera manufacturers for industrial infrared inspections. This type of detector does not need cooling and works at room temperature. It is also compact with high pixel resolution, low cost and easy availability.

Fig. 25 depicts the operating principle of a multi-camera, combining all inspection technologies, i.e. visible, infrared and ultraviolet and Fig 24 shows the spectra where it will operate.

UV and IR inspection inspection line Comparing UV & IR Diagnostic Inspection of Lines & Substations Portions of electromagnetic spectrum
Fig. 24: Portions of electromagnetic spectrum where a multi-camera operates
CLICK TO ENLARGE
Functional block diagram of radiometric ‘multi-camera’. inspection line Comparing UV & IR Diagnostic Inspection of Lines & Substations Functional block diagram of radiometric
Fig. 25: Functional block diagram of radiometric ‘multi-camera’.
CLICK TO ENLARGE

Conclusions

UV and IR inspection are not simply two alternative ways to look at the same problem. Instead, each inspection technology records a particular defect or abnormality within the component or equipment being inspected. In general, it can be said that ultraviolet recordings indicate the presence of corona activity while infrared recordings highlight heat phenomena. Moreover, UV corona recordings have to do with surface discharges and indicate the presence of high electric field. In contrast, infrared measurements highlight the presence of leakage current. The first phenomenon depends on surface condition while the second depends on an internally generated heat source.

Advertisement
inspection line Comparing UV & IR Diagnostic Inspection of Lines & Substations OFIL banner 300X125 July1
Advertisement
Desma Advertisement inspection line Comparing UV & IR Diagnostic Inspection of Lines & Substations Desma banner Apr 26
Advertisement
Yizumi Ad inspection line Comparing UV & IR Diagnostic Inspection of Lines & Substations INMR YIZUMI July edition

The latest developed multi-spectral camera will enable the power industry to simultaneously inspect electrical equipment for corona discharges and infrared hotspots. A specialized software program will assist the camera user to record, process, store and retrieve these recordings.
