Case Study of Thermal Inspection to Prioritize Maintenance Needs at Substation

Among the best known technologies to assess the condition of power network assets are infrared and ultraviolet imaging. Both have been used now for decades and rely on specialized cameras that have evolved considerably over the years. The common direction of the latest generations of these cameras are towards more portability, improved data storage and sharing and greater ease for the user to assess the severity of any problem identified. The continuing existence of both imaging technologies has made some power engineers wonder whether they are complementary and must always be used together or whether they are rather alternatives that detect the same incipient problems. The answer might vary depending on which expert is being asked. But what is clear is that each inspection technology offers its own specific benefits when it comes to locating particular types of defect. In general, it can be said that infrared (IR) imaging records presence of internal heat due to elevated leakage current while ultraviolet imaging detects presence of corona due to high electric field near surfaces. The first phenomenon depends on an internally-generated heat source and the second on surface condition. Both situations represent a potential hazard to continued safe operation of a line component or piece of equipment in a substation and both are a reason for either closer future scrutiny or immediate remedial maintenance. In 2016, INMR accompanied IR imaging expert, Bill Hoth, on an infrared inspection of a 138 kV substation located near the Gulf Coast of Florida and discussed with him specifics of the IR inspection process.


Bill Hoth recalls the day when the infrared equipment he took with him for inspections was so cumbersome that it required him to also tote nitrogen coolant. These days, as head of Clearwaterbased Universal Thermography, he relies mainly on a camera with four times the pixels of the one it replaced yet that’s also light and portable.
Hoth says he has maintained his focus only on infrared imaging – in large part because he found corona inspection too arbitrary and, in his view, unable to clearly identify whether a component was in good working order or not. By contrast, in the case of IR, the definitive factor in condition assessment is not absolute temperature but rather how temperature of the item being inspected compares to the reference temperature of similar nearby items. Says Hoth, “today, most engineers do not care that much about the temperature of any particular item but rather whether or not it is significantly different from similar objects located next to it.”

Hoth inspects distribution switches, a common area for ‘hot spots’. CLICK TO ENLARGE substation Case Study of Thermal Inspection to Prioritize Maintenance Needs at Substation Screen Shot 2016 11 18 at 13
Hoth inspects distribution switches, a common area for ‘hot spots’.
CLICK TO ENLARGE

Hoth points out that IR imaging requires the inspector to be aware of key meteorological parameters since it is affected by humidity as well as wind conditions. For example, higher relative humidity makes any ‘hot spot’ appear cooler than it actually is. In the case of high wind, there is no specific camera adjustment however a trained operator has to be aware of it and take it into account when preparing the inspection report. Hoth also notes that the key to all infrared imaging is emissivity since each item being inspected will emit at the same radiation as it absorbs. That means infrared imaging of each object has to be adjusted based on its known emissivity.

Advertisement
substation Case Study of Thermal Inspection to Prioritize Maintenance Needs at Substation CSL Advertisement e1477326535980
Thermal Inspections Help Florida Utility Prioritize Maintenance at Substations substation Case Study of Thermal Inspection to Prioritize Maintenance Needs at Substation Screen Shot 2016 03 17 at 10

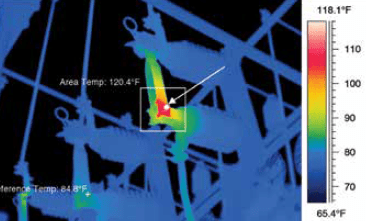

Infrared image of 500 kV substation switch with hot spot in receiver of switch. Repair involved tightening and adjusting receiver.

Thermal Inspections Help Florida Utility Prioritize Maintenance at Substations substation Case Study of Thermal Inspection to Prioritize Maintenance Needs at Substation Screen Shot 2016 03 17 at 10

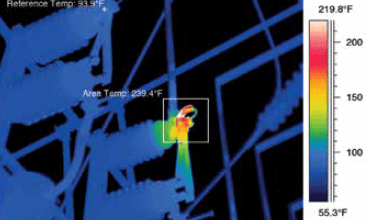

23 kV substation switch with hot spot. Hinge had to be adjusted and cleaned.

During thermal inspection of the 138 kV Immokalee Substation near Fort Myers – one of about 25 operated by local power utility Lee County Electric Co-operative – Hoth discovered a hot spot on the blade of a transmission switch. He says that this is something that could have been caused by corrosion between the fingers and blade and therefore it will probably require cleaning. “In a typical report,” he notes, “I will pinpoint the location of any hot spot such as this, indicating the device number and also the phase where it was detected.”

Thermal Inspections Help Florida Utility Prioritize Maintenance at Substations substation Case Study of Thermal Inspection to Prioritize Maintenance Needs at Substation Screen Shot 2016 03 17 at 10
23 kV substation switch with hot spot in receiver that needed to be cleaned and adjusted.

Thermal Inspections Help Florida Utility Prioritize Maintenance at Substations substation Case Study of Thermal Inspection to Prioritize Maintenance Needs at Substation Screen Shot 2016 03 17 at 10

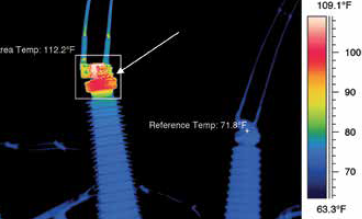

240 kV breaker bushing connection with connector hot spot. Maintenance needs include cleaning grease & tightening connector.

Advertisement
BPG International Advertisement substation Case Study of Thermal Inspection to Prioritize Maintenance Needs at Substation BPG Banner

Hoth explains that findings of any inspection can have different consequences depending on the specific customer. “Every utility has its own thoughts on how to prioritize maintenance problems, whether urgent, serious or moderate,” he remarks. “Sometimes it’s a question of availability and what’s happening elsewhere in their grid. Still, if I ever see a temperature differential of 150°F (66°C) between phases of the same load and at the same location this is almost always regarded as ‘critical’. By contrast, localized temperature rises of up to 20°F can be due solely to increasing load or even just to changes in ambient conditions.” He also notes that it is not unusual for him to identify from 10 to 15 hot spots per inspection, with larger utilities often having 3 to 4 times this number. Typical locations of hot spots include distribution switches, where he estimates about half of these are registered during any inspection. “Switches tend to have the most hot spots,” he observes, “mainly because they are a moving part. Another common area for hot spots is bushings, generally due to loose or dirty connections.”
Advertisement
substation Case Study of Thermal Inspection to Prioritize Maintenance Needs at Substation INTEGRATED Engineering Software Mar 11
Thermal Inspections Help Florida Utility Prioritize Maintenance at Substations substation Case Study of Thermal Inspection to Prioritize Maintenance Needs at Substation Screen Shot 2016 03 17 at 10
Seldom does any surge arrester become 15°C hotter compared to nearby units and survive much longer.
CLICK TO ENLARGE
Thermal Inspections Help Florida Utility Prioritize Maintenance at Substations substation Case Study of Thermal Inspection to Prioritize Maintenance Needs at Substation Untitled 221
Hoth scans transmission switch and detects hot spots that may signal need for future maintenance.
CLICK TO ENLARGE



Hoth goes on to explain that thermal imaging can also be useful in assessing the condition of surge arresters. According to experts, the reason IR imaging is so useful is because arresters normally dissipate very little energy during steady state operation and therefore seldom exhibit a temperature much above ambient. For example, even some of the largest MOV arresters up to 4 or 5 meters in height dissipate less than 50 watts and therefore do not create any discernable temperature rise. This makes the effort to measure temperature gradients more challenging.

Thermal Inspections Help Florida Utility Prioritize Maintenance at Substations substation Case Study of Thermal Inspection to Prioritize Maintenance Needs at Substation Screen Shot 2016 03 17 at 10
Infrared image of low side transformer arresters with one faulty unit that had to be replaced.

Thermal Inspections Help Florida Utility Prioritize Maintenance at Substations substation Case Study of Thermal Inspection to Prioritize Maintenance Needs at Substation Screen Shot 2016 03 17 at 10

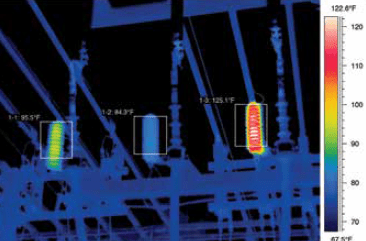

Image of 2 faulty distribution arresters inside substation, both of which were replaced.

Through experience, Hoth has found that he can achieve better assessment of arrester temperature in an environment without sunlight, allowing him to better see even less than a degree difference from ambient. It is a step-by-step process such that, if an arrester displays even a slight difference from similar nearby units, it is placed on a watch list. If the arrester displays a difference of from 4 to 6°C, then it is marked to be re-checked in a few weeks. If the temperature gradient is greater than 7-10°C, the arrester is placed on an emergency change-out list. This approach is common among power utilities across the United States and in Canada as well.

Thermal Inspections Help Florida Utility Prioritize Maintenance at Substations substation Case Study of Thermal Inspection to Prioritize Maintenance Needs at Substation Untitled 2
Images of faulty high side transformer arrester that was replaced.
CLICK TO ENLARGE
Thermal Inspections Help Florida Utility Prioritize Maintenance at Substations substation Case Study of Thermal Inspection to Prioritize Maintenance Needs at Substation Untitled 3

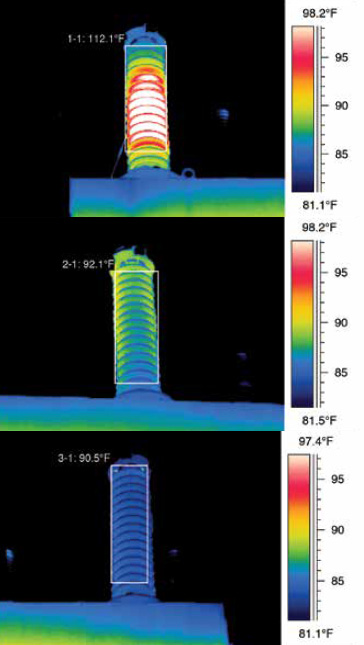

IR image of faulty transformer arrester needing replacement.
CLICK TO ENLARGE

One point that is almost certain is that seldom does any surge arrester become 15°C hotter in comparison to nearby units. Once temperature starts to rise that much, leakage currents will also increase which in turn causes even faster heating. That means it will likely not survive much longer. Partial discharge does not itself generate enough of a heat signature to be detectable with thermal imaging.
There are several benefits of applying thermal imaging to arresters, starting with speed of data collection. Indeed, Hoth says that there is no faster way to tell if an arrester is near end-of-life than a scan of its temperature. Accuracy from a distance is also excellent, especially with a long-range lens. The risk that an arrester is in the process of failing without also generating heat is low. At the same time, if an arrester is damaged by lightning strike or switching surge only days after its last thermal scan, it may well fail before the next scheduled scan.

Advertisement
Yizumi Ad substation Case Study of Thermal Inspection to Prioritize Maintenance Needs at Substation INMR YIZUMI July edition

The potential for failure between successive scans is among the only drawbacks to thermal imaging of arresters. Another is that there are currently no IR devices on the market that can yet transmit data remotely. As such, obtaining a thermal profile for an arrester requires someone to go on-site, often at night, and collect the data. Still, in spite of this, thermal imaging remains one of best options to monitor the health of an energized surge arrester.
Apart from substations, Hoth also spends much of his time applying thermal imaging to overhead lines. While much of the power industry is looking to increase use of fly-by techniques to monitor lines, he points out that, where possible, driving a line route at around 20 mph (30 km/h) is often preferable – especially for distribution lines. One of the advantages, he explains, is that accuracy of measurements tends to be greater from the ground. Says Hoth, “the sky is a perfect cool background compared to the alternative of looking down from a helicopter to what could be numerous other sources of heat on the ground.”
Advertisement
substation Case Study of Thermal Inspection to Prioritize Maintenance Needs at Substation OFIL banner 300X125 July1
Advertisement
Desma Advertisement substation Case Study of Thermal Inspection to Prioritize Maintenance Needs at Substation Desma banner Apr 26
Thermal Inspections Help Florida Utility Prioritize Maintenance at Substations substation Case Study of Thermal Inspection to Prioritize Maintenance Needs at Substation Screen Shot 2016 03 17 at 11
Arrester at center is about 9°F (4°C) hotter than that at far left and will be checked again.
CLICK TO ENLARGE
Thermal Inspections Help Florida Utility Prioritize Maintenance at Substations substation Case Study of Thermal Inspection to Prioritize Maintenance Needs at Substation Screen Shot 2016 03 17 at 11
Camera mounted on passenger side of truck offers cost-effective way to perform IR inspection of distribution lines.
CLICK TO ENLARGE
