Bushings are devices that allow conductors to pass through the earthed walls of transformers, switchgear and substation structures. An integral part of this function involves meeting all the electrical, thermal and mechanical requirements of the application.
For example, bushings must provide reliable electrical insulation both internally (against breakdown) and externally (against flashover) of the conductor exposed to the rated voltage and also to periodic service overvoltages – even under contaminated conditions. Another key requirement is providing the mechanical strength needed to support the conductor as well as all external connections, including under short circuit and possible seismic forces. Moreover, a bushing must have the proper thermal design to avoid overheating of any of its elements and to prevent onset of ageing phenomena inside its insulation – both at rated current and during short circuit events. Several years ago, Prof. Stanislaw Gubanki of Chalmers University of Technology in Sweden, contributed this overview of bushing applications and technologies.


Introduction
A bushing is similar to a surge arrester in the sense that it is a relatively low cost component ensuring the safe operation of a comparatively high value asset. For example, while bushings typically account for less than 5 percent of the cost of a power transformer, their catastrophic failure can lead to total loss of the transformer and possibly other expensive equipment as well. Certain types of bushings can also pose a threat not only to substation personnel but also to nearby communities. An industry executive once remarked: “the bushing accounts for only a small fraction of the total cost of a power transformer. But if you have any problems caused by the bushing, you can multiply this amount by at least 100.”

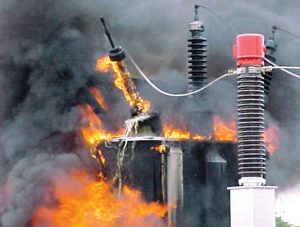

Fires triggered by explosions of oil bushings have been a serious problem in some countries, as in this photo from Brazil. bushings Bushing Technology Review Pic414 300x226
Catastrophic bushing failure means expensive repairs or total loss of transformer.
CLICK TO ENLARGE
bushings Bushing Technology Review Pic514

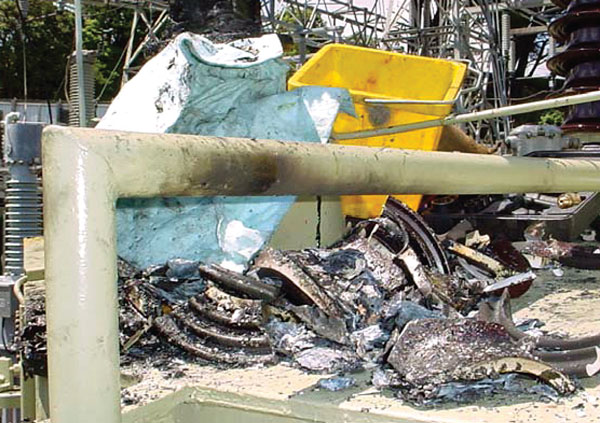

Explosion of bushing at this substation in New Zealand saw shards of porcelain pierce the roofs of nearby homes.
CLICK TO ENLARGE

In their early years, bushings were little more than hollow porcelains lled with transformer oil or solid resin surrounding the conductor. Such simple bulk and solid type bushings are in fact still applied these days at medium voltage levels. But as networks became more sophisticated, the need was recognized to better distribute the electric eld generated across a bushing – especially at high voltages. This resulted in development of designs that were capacitance-graded. The basic principle was to distribute the natural eld between conductor and earthed ange by employing intermediate conductive layers radially – to lower the eld at the conductor and better utilize the insulation material – and also axially – to allow for higher ashover voltage values for a given arcing distance. Originally, the materials used in the cylinders wound around the conductor included resin-bonded paper and carbon materials. These were later successively modied to designs involving less conductive grades of paper along with aluminum foil. One of the motivations behind development of eld-graded bushings was reducing the diameters required for the porcelain housings. On ungraded bushings, electric eld tends to be concentrated around the anges and therefore risk of breakdown becomes high. On ne-graded bushings, stress is linearized and spread over a greater distance. This results in greater safety margin. For example, the porcelain housing diameter on a simple 110 kV eld-graded bushing is about 240 mm measured across the sheds; but to handle the same stress, the identical ungraded bushing would need a housing of almost double that diameter. The benets of narrower external diameter translate into lower cost for the housing, reduced weight, less oil and less clearance diameter of the embedded shielding in the lower part.

--- Porcelain shrapnel caused damage inside this area? Hole punctured in roof? Bushing which failed bushings Bushing Technology Review Pic613
CLICK TO ENLARGE
bushings Bushing Technology Review Screen Shot 2019 05 10 at 16
CLICK TO ENLARGE

The basic principle in bushing design is straightforward and consists of a conductor surrounded by an insulating solid cylinder that is mechanically xed to the earthed barrier. As discussed, distribution of electric eld inside such a construction, is highly non-uniform in terms of both axial and radial components. The highest stress concentration appears at the so-called ‘triple junction’ between the earthed wall, the insulating cylinder and the gaseous or liquid medium outside the bushing body. This localized high concentration of stress can trigger the onset of partial discharges – often referred to as ‘gliding discharges’ since they have a strong capacitive coupling to the bushing’s internal conductor and therefore proceed along the insulating cylinder’s surface. They can lead to tracking along the bushing and even result in ashover. Initiation of gliding discharges as well as their subsequent development becomes easier when the unit capacitance of the insulation (i.e. across its thickness) is greater. Therefore, the voltage level for their ignition and propagation (virtually equal to flashover voltage) is determined by this parameter. This stands in contrast to other types of discharges, where the typical controlling parameter is electrode separation distance. Because of such considerations, the best way to increase a bushing’s flashover withstand voltage is by improving electric field distribution along its surface. This can be achieved in a number of ways. In the case of higher voltages, the most effective means is through capacitive control for AC applications and resistive control for DC applications. Capacitive control is based on inserting metallic screens into the solid insulation of the bushing, essentially forming a system of in-series connected capacitors whose magnitude depends on geometrical arrangement. Perhaps the most frequently used and effective solution is when series capacitances are maintained at equal levels. The impact of modifying field distribution this way is illustrated in Fig. 1.

Advertisement
Recotec Ad bushings Bushing Technology Review Reinhausen
bushings Bushing Technology Review Comparative electric field distribution in bushing without left and with field controlling capacitive screens

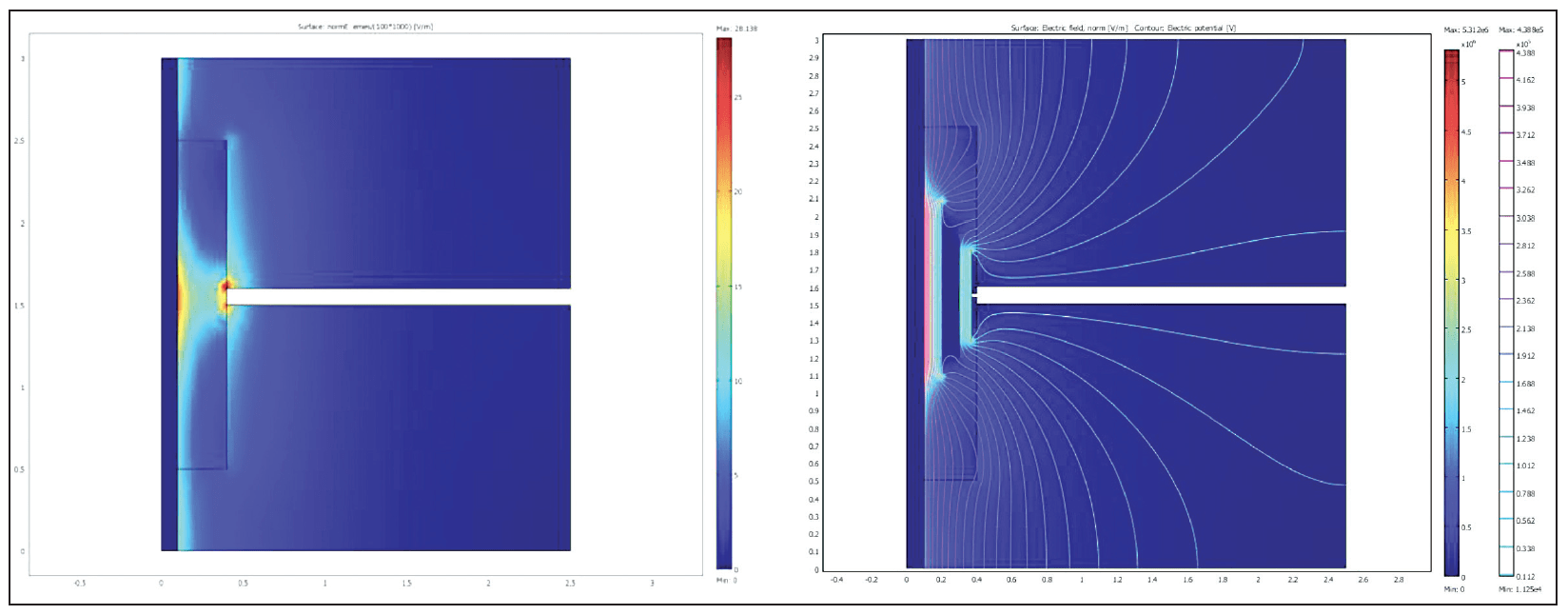

Fig. 1: Comparative electric field distribution in bushing without (left) and with field controlling capacitive screens.
CLICK TO ENLARGE

Inserting metallic screens during manufacture of a bushing used to be a demanding and labor-intensive process, but modern core winding equipment has made this task highly automated. In the case of paper insulated bushings, metallic foils are inserted between the different paper layers. Choosing the appropriate radius and length of these screens allows for the desired series capacitance. Optimal resistive control of electric field distribution in the case of DC bushings usually involves covering the critical region near the electrode with semi-conducting layers. The aim here is to increase resistance with increasing distance from the earthed electrode.

Alternative Bushing Technologies

In the case of bushings for higher system voltages, there have traditionally been three main types of insulation system used: oil-impregnated paper (OIP), resin bonded paper (RBP) and resin-impregnated paper (RIP). New resin-impregnated synthetic (RIS) types, without oil, have also been developed and are finding growing application.
OIP Bushings
Since the main insulation of substation transformers has been based on oil-impregnated paper, this same insulation philosophy has carried over and become the most commonly used technology for constructing bushings. In fact, it is estimated that between 65 and 75 percent of all installations of a bushing on a power transformer involve an OIP design. In certain large markets such as China and the United States this proportion is higher still. The strong market preference for OIP style bushings has been maintained over the years due to a variety of refinements made by some of the leading manufacturers. These improvements have allowed the technology to remain attractive both to intermediate bushing customers (i.e. transformer OEMs) and also to final users, in spite of their changing needs and demands. For example, bushing suppliers have worked to offer standardized high creepage porcelains on all OIP bushings they sell. The goal was to allow the same bushing design to be used across a variety of service environments and thereby reduce the need for end users to stock many different styles of replacement units. It has allowed bushing manufacturers to streamline their own ordering and inventorying of porcelain to reduce unit cost as well as production lead times.
Similarly, over the years OIP bushing suppliers have made design changes aimed at reducing the diameters of porcelain housings to make them slimmer and lighter. This has suited the interests of transformer manufacturers who prefer bushings that are easier to handle in transport and during installation.

Advertisement
bushings Bushing Technology Review CSL Advertisement e1477326535980
bushings Bushing Technology Review Dry RIS type bushings installed in China at 66 kV and 110 kV
CLICK TO ENLARGE
bushings Bushing Technology Review Dry RIS type bushings installed in China at 66 kV and 110 kV
Dry RIS type bushings installed in China at 66 kV and 110 kV.
CLICK TO ENLARGE

Slimmer profiles have offered benefits apart from reduced weight: firstly, the porcelains themselves carry lower cost since decreased diameter significantly reduces purchase price; secondly, due to slimmer designs, the volume of oil within bushings could be correspondingly reduced. With this has come progressively less concern about perceived risk of leaks and fires.
Apart from these types of design changes on an industry- wide basis, various individual OIP bushing suppliers have made additional improvements: better methods of sealing against leaks; designs to facilitate both horizontal and vertical mounting; increased ease of visually monitoring oil levels; easier interchangeability between transformer and switchgear applications; and better mechanical contacts between top terminal and conductor to avoid the potential for heating should the conventional threaded contact weaken. Other refinements have also been developed that allow OIP bushings to be changed out quickly in the field with minimal impact on operation of the affected apparatus. Due to competitive forces, these innovations have been matched by others in the industry with the result that most suppliers offer improved versions of OIP technology.

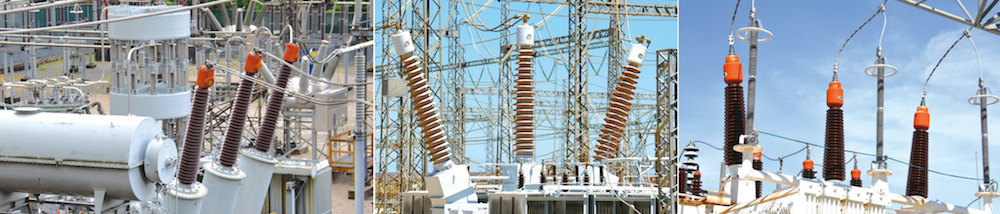

bushings Bushing Technology Review Manufacturing RBP bushings
CLICK TO ENLARGE

One of the areas within this technology where there could be growing interest for further development is better condition monitoring. Given that there are hundreds of thousands if not millions of OIP units operating worldwide, one question to be answered is how intelligent such a design should be, especially in regard to internal monitoring of oil level and other service parameters. Still, given the many refinements made to these designs over the years, one can wonder if much more can be done to further enhance performance and functionality or reduce cost. Indeed, perhaps this style of bushing has reached a state of design maturity with little to no room for additional optimization.

bushings Bushing Technology Review OIP types account for majority of all bushing

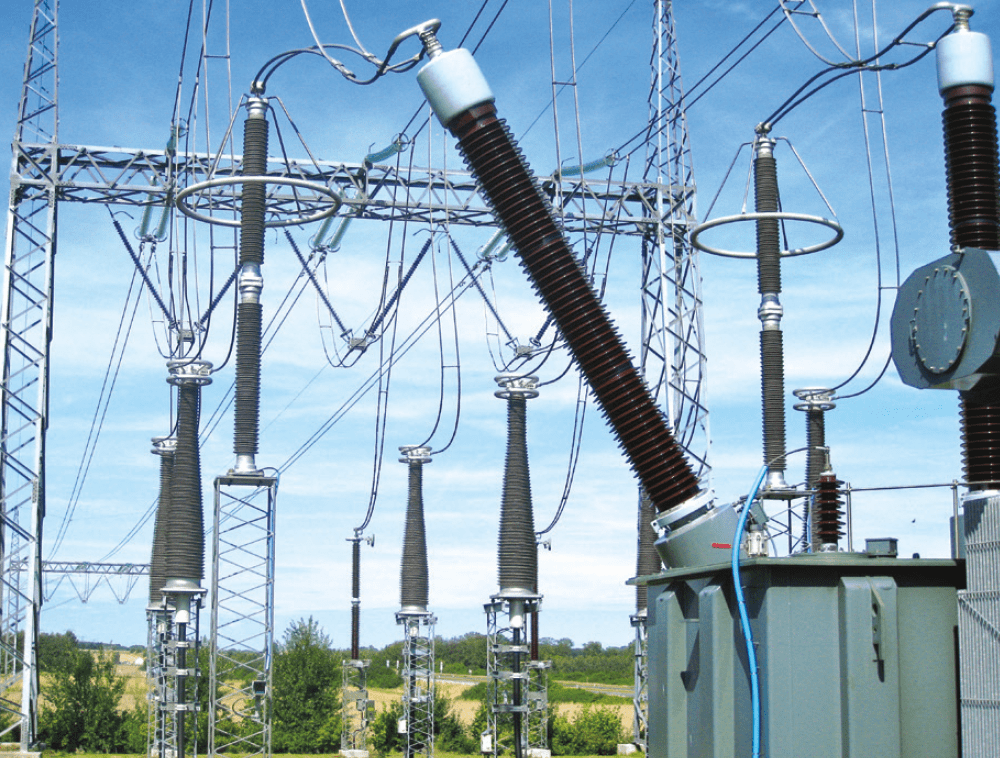

OIP types account for majority of all bushing installations on power transformers.
CLICK TO ENLARGE
bushings Bushing Technology Review Optimizing OIP design

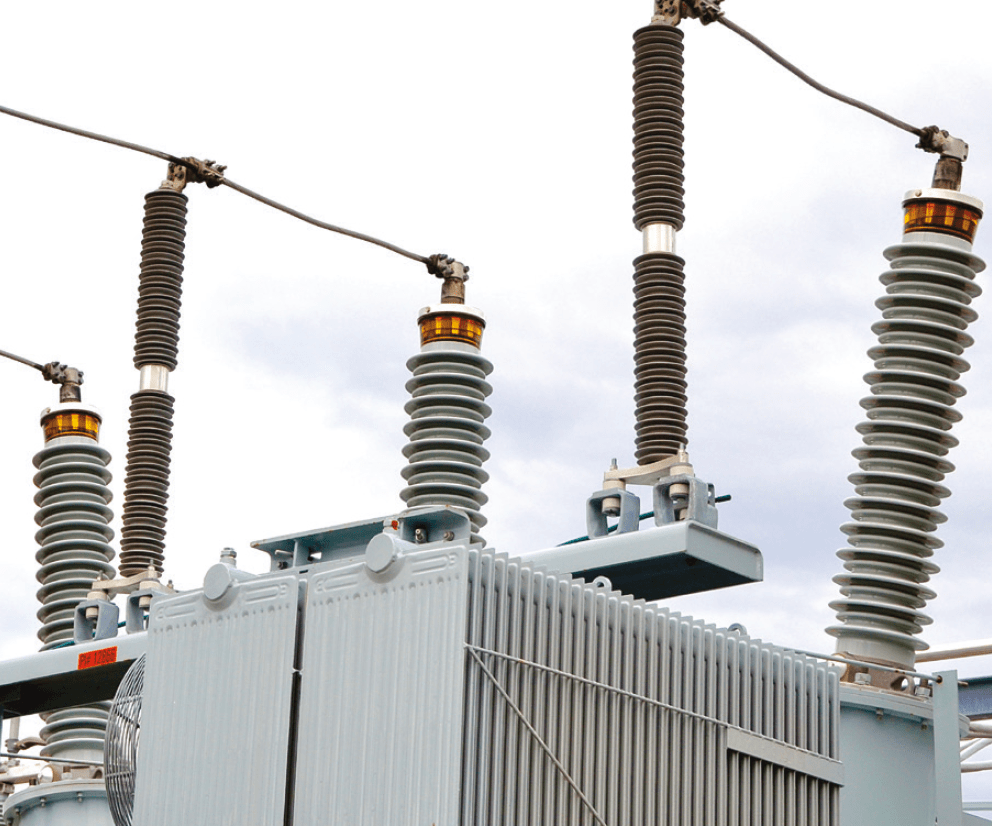

Optimizing OIP design has allowed reduced diameters of external porcelain housings. Note difference in bushings top and bottom photos.
CLICK TO ENLARGE

Resin Bonded Paper (RBP) Bushings
Manufacturing RBP bushings has been based on winding layers of resin-coated paper around the conductor under heat and pressure to laminate the layers together. This process is inherently difficult to control and therefore such designs have suffered relatively large numbers of failures over the years due to voids and other defects. In spite of this drawback, however, the RBP bushing style has found a market because of price. Presently, use is limited mainly to lower voltage levels since risk of thermal instability and even runaway due to dielectric losses in the paper is comparatively high. For this same reason, operating radial stress in such designs is usually maintained at around 2 kV/mm, lower than for other bushing types.
Resin-Impregnated Paper Bushings
Compared with RBP bushings, significant improvements have been achieved by introducing a technology whereby the paper insulation is impregnated with epoxy resin and then cured. The resulting insulation system, containing field grading elements, is dry and void free. This technology involves higher material as well as product costs but offers benefits such as being non-combustible, providing an impregnable seal for the transformer tank, being easily machined to required dimensions and remaining unaffected by ambient humidity. Moreover, when equipped with a composite housing, there is total safety against risk of explosive shattering. Great care, however, has to be taken during the curing cycle to avoid internal stresses and formation of cracks – especially as volumes of material increase for high voltages. Typical radial operating stress in RIP bushings is around 3 kV/mm.

Advertisement
BPG International Advertisement bushings Bushing Technology Review BPG logo
bushings Bushing Technology Review Among subtle improvements in OIP bushings has been improved sight glass design for visual monitoring oil level

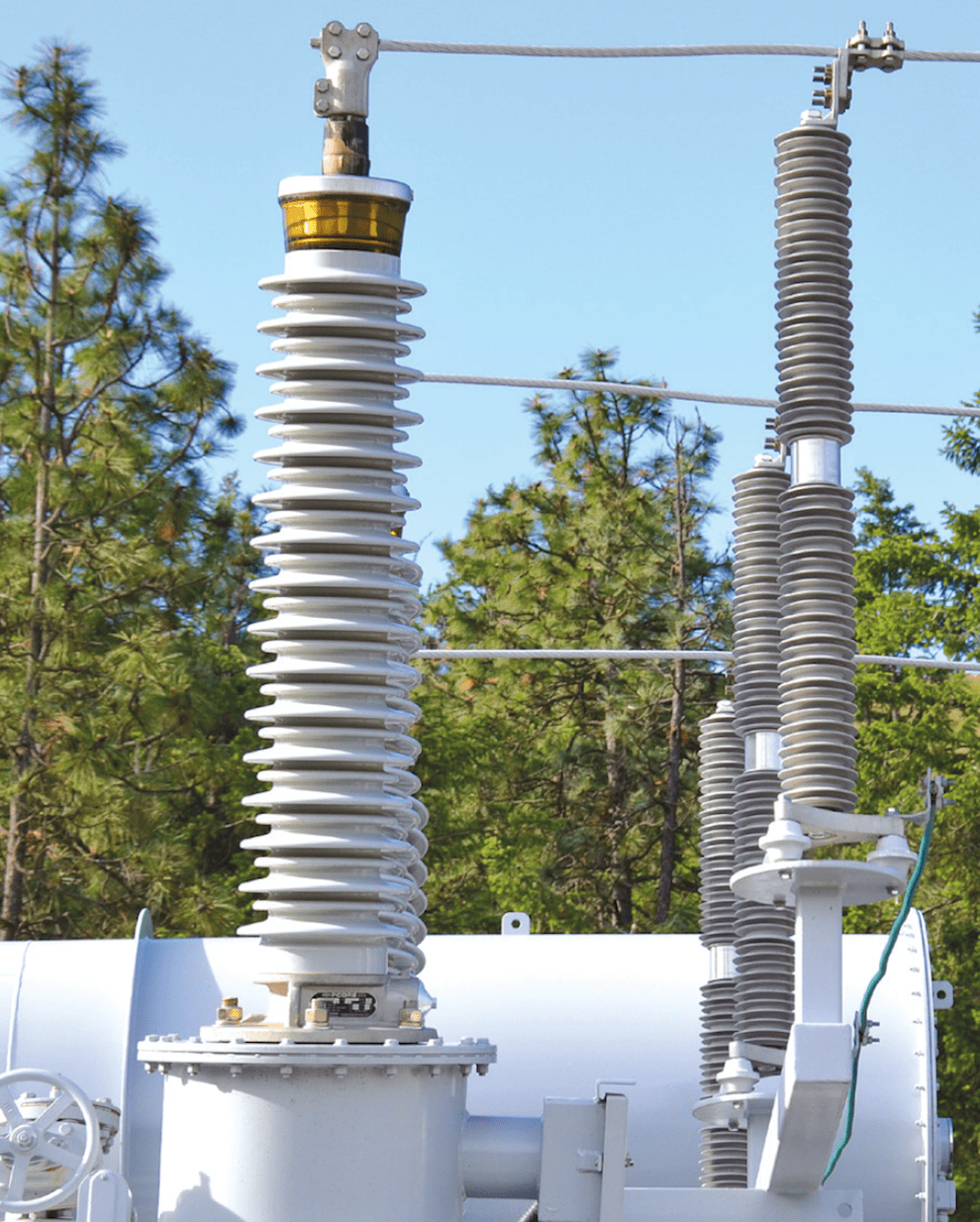

Among subtle improvements in OIP bushings has been improved sight glass design for visual monitoring oil level.
CLICK TO ENLARGE

RIP bushings have no dynamic processes occurring within their cores and therefore offer long service lives. Other advantages include eliminating any potential for leaks and all risks associated with explosive failure of an oil-filled component. Over the years there have been numerous incidents of exploding OIP bushings. Some, for example, were found to have resulted from excessive operating temperatures when cooling systems failed on transformers operating at 100 percent load. Even if not leading to an explosion, situations such as this can still shorten the effective service life of an OIP bushing to as little as 10 years. While a normal OIP bushing can operate well up to 105°C, a RIP style can deal with temperatures greater than 120°C. Indeed, testing by suppliers has confirmed that thermal ratings for RIP bushings are considerably higher than for OIP equivalents. This superior thermal behaviour is a clear advantage in today’s utility markets where transformers are being run at high load.
Apart from thermal advantages, RIP bushing technology is viewed as the way forward simply because it offers a dry solution. In spite of successive refinements made to OIP designs, the most important drawback remains because it is intrinsic to the technology itself and revolves around the presence of oil. Typical problems have included leaks due to worn out seals, excessive filling of reservoirs in horizontal mount applications or unusually high operating temperatures. These types of bushings also suffer from greater vulnerability to lightning strike or other factors that can trigger explosive failure. Similarly, moisture ingress into the unit presents a constant and potentially severe problem. Finally, in the case of connection to SF6, the presence of oil is highly undesirable due to the serious consequences of any leaks. All these drawbacks favour a totally dry bushing technology, such as RIP.
In spite of several ‘false starts’, where interest in this design would rise one year only to fall off again the next, there seems an accumulating trend toward RIP that is reflected in a steady rise in its share of the total graded bushings business. Further increases are expected due to application-specific advantages of RIP technology. For example, the OIP design for oil-to-gas connections is cumbersome and difficult to maintain while the RIP alternative is a comparatively easy technical solution. RIP technology also offers important advantages in the area of oil-to-gas and oil-to-oil applications.
As has been the case with OIP technology, suppliers of RIP bushings have also sought to incorporate product refinements to justify the higher price normally associated with this technology. Among the most important developments in this regard has been application of silicone housings in place of the porcelain that still dominates the vast majority of OIP bushing installations. Indeed, this is a technical solution that some view as the ultimate evolution in bushing design and performance. There is no doubt that market acceptance of silicone housings on a bushing has been far greater for RIP than for OIP designs to the extent that probably more than 90 percent of all graded bushings that are silicone-housed have RIP cores. This is because the real advantages of silicone material are most evident to customers when applied to this technology and in some respects even help RIP better compete against OIP styles. Germany, Switzerland and Austria are examples of markets where dry bushing technology incorporating silicone housings is widely accepted due to safety and environmental concerns.

Advertisement
bushings Bushing Technology Review INTEGRATED Engineering Software Mar 11
Uneven pollution distribution on porcelain-housed wall bushing makes it more vulnerable to flashover under wetting bushings Bushing Technology Review Uneven pollution distribution on porcelain housed wall bushing makes it more vulnerable to flashover under wetting

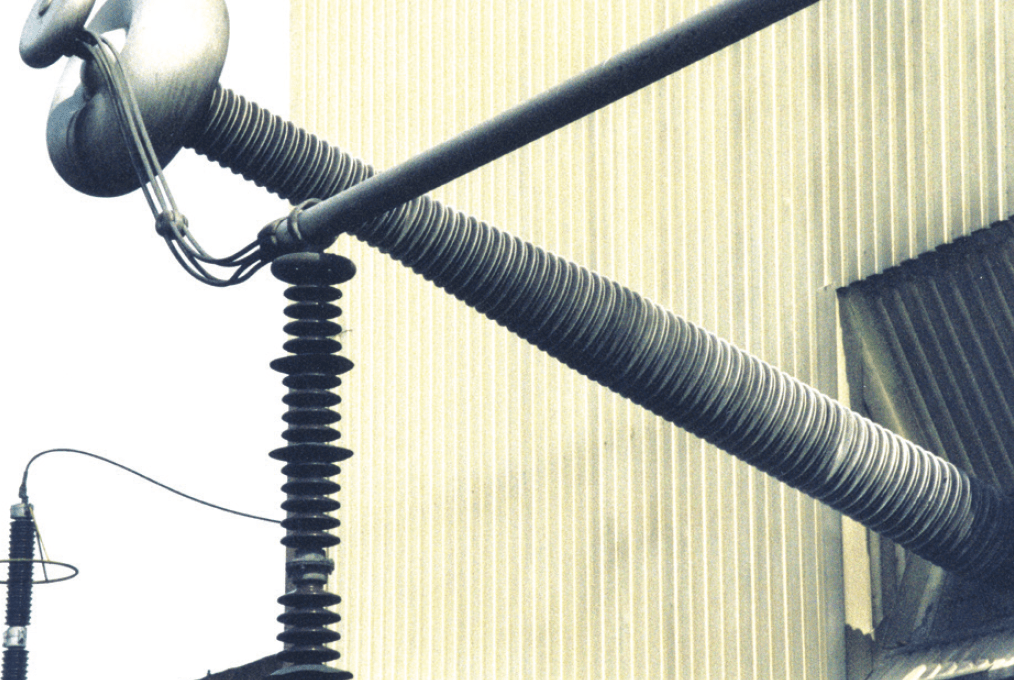

Uneven pollution distribution on porcelain-housed wall bushing makes it more vulnerable to flashover under wetting.
CLICK TO ENLARGE
bushings Bushing Technology Review Many RIP bushings for UHV applications as here at research facility in southern China equipped with porcelain housings

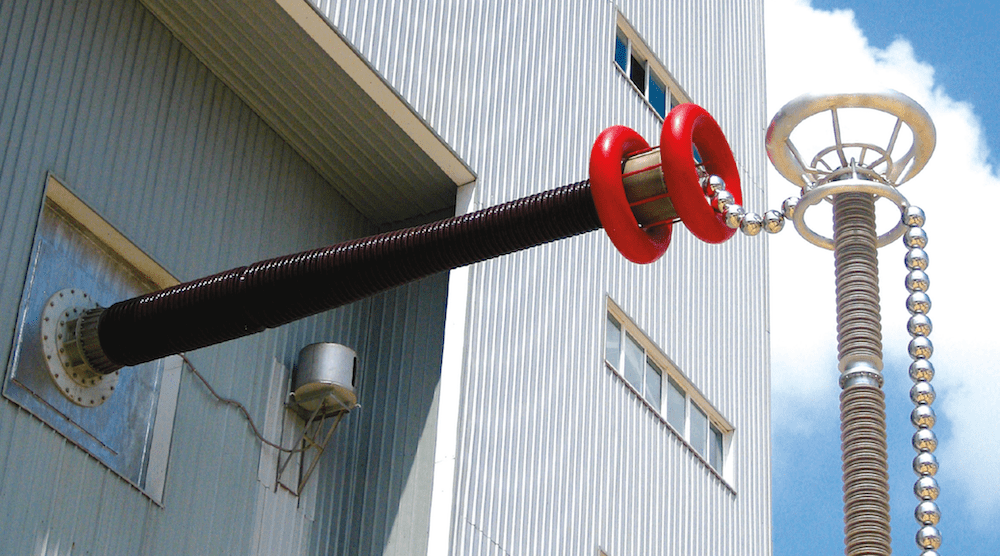

Many RIP bushings for UHV applications (as here at research facility in southern China) equipped with porcelain housings.
CLICK TO ENLARGE

The motivation behind transition to silicone in place of porcelain as a housing for bushings has involved factors such as reduced risk to people and apparatus, better pollution performance, easier handling and faster production lead times. Bushings can be especially sensitive to pollution since they are often inclined or located under roofs – both situations that can lead to uneven deposition of contaminants. A bushing then becomes more vulnerable to flashover and in such cases silicone is preferred over porcelain. Other application conditions can also make a bushing more vulnerable to pollution and favour a silicone housing over one made of porcelain. However, one of the challenges in replacing porcelain with silicone on an RIP bushing has been cost, especially at voltages below 245 kV where much of the volume is focused. Slimmer diameters of RIP units compared to most OIP designs have also meant that the porcelain shells being replaced are less costly, only accentuating the price difference. An early problem when it came to changeover of external insulation away from porcelain was that the new silicone insulators were often specified as a one-for-one replacement for porcelain. This meant that the larger flanges required for porcelain were also specified for the composite alternative, even though not strictly necessary. This has become less an issue since bushing suppliers and users have both grown to understand the need to optimize entire design. Moreover, the growing level of standardization in this industry has resulted in sizes and diameters of fittings becoming more uniform.

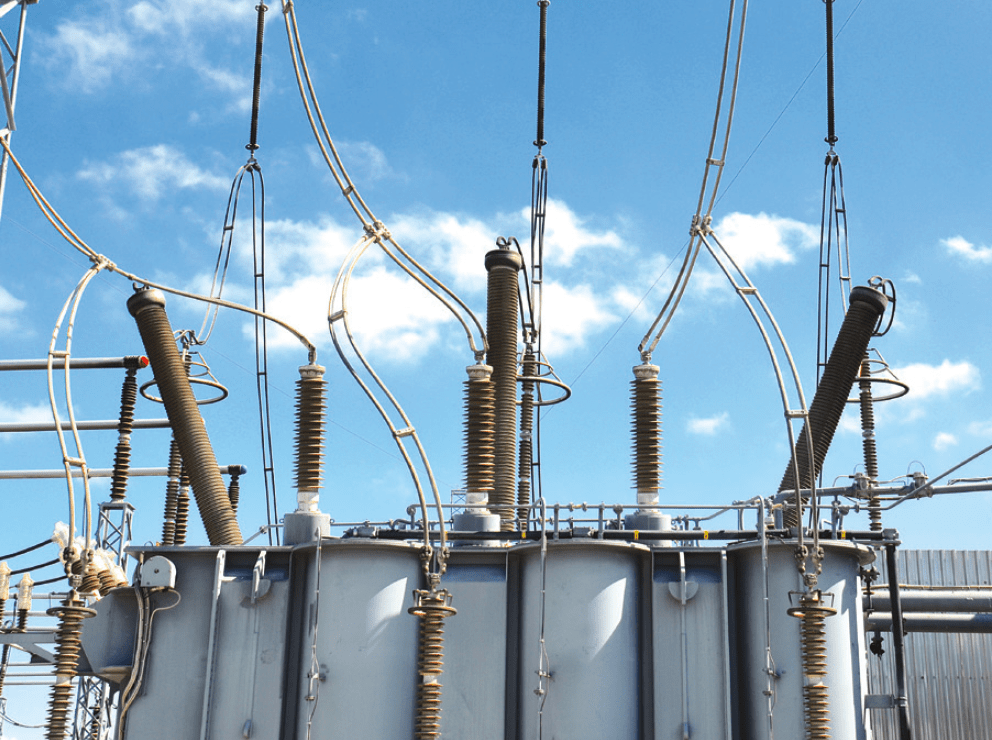

bushings Bushing Technology Review Uneven pollution layer on silicone housed RIP bushing at 400 kV substation
CLICK TO ENLARGE
bushings Bushing Technology Review Uneven pollution layer on silicone housed RIP bushing at 400 kV substation in South Africa

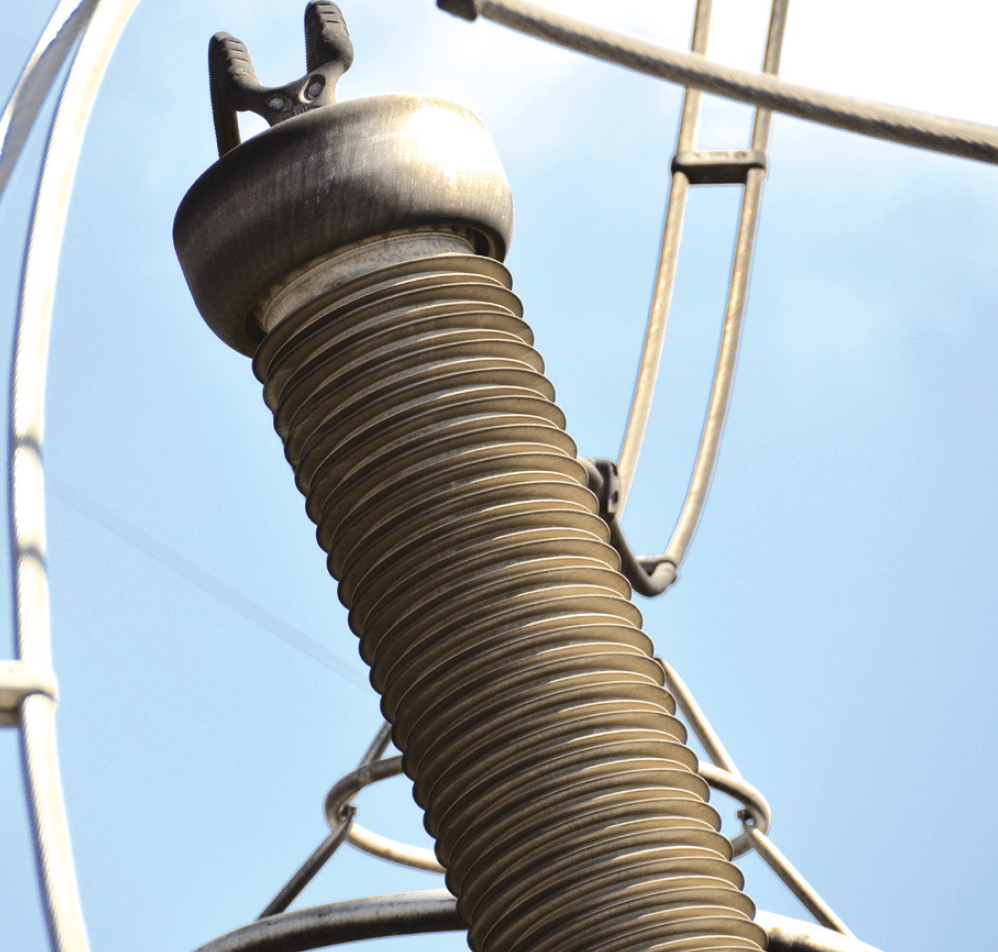

Uneven pollution layer on silicone-housed RIP bushing at 400 kV substation in South Africa.
CLICK TO ENLARGE

Among the notable developments when it comes to application of silicone housings to dry bushings – both RIP & RIS styles – has been a process that sees sheds molded directly onto the cured epoxy core. This technology has been available for 20 years but is regarded as best suited up to a maximum voltage. The principal advantage is cost reduction – a considerable inducement in a market as price-sensitive as bushings. This is because direct molding eliminates need for the FRP tube as well as the dielectric material that fills the space between core and tube. Notwithstanding cost advantages, application of direct molding onto RIP cores has not achieved the widespread use once expected. Apart from the investment needed by the bushing manufacturer to be able to implement this process in-house, there are technical issues, especially at higher voltages. For example, there must be an extremely good chemical bond between core and silicone to avoid any possibility of interface problems. There is also the issue of ‘cold switch-on behavior’. When silicone rubber has been molded directly onto the RIP core, experts point out that vapor will likely have migrated through the material before energization and could be absorbed by the resin body. This could mean that, at least initially, the bushing will have a higher dissipation factor. Another potential drawback of direct molding relates to mechanical function. If the mechanical requirements of the bushing exceed those of its RIP core and conductor, the added mechanical strength of a tube will be necessary to help carry the load. A tube also offers the benefit of providing a barrier against moisture. In this regard, it may not be appropriate to draw a parallel between mold-on silicone bushings and experience with polymeric arresters that have experienced growing use of direct mold technology. Arresters are not intended to last 30 to 50 years and, if they fail, it is often not a serious problem. If a bushing fails, the whole transformer is in trouble.

Advertisement
Yizumi Ad bushings Bushing Technology Review INMR YIZUMI July edition
bushings Bushing Technology Review Examples of direct mold polymeric bushings

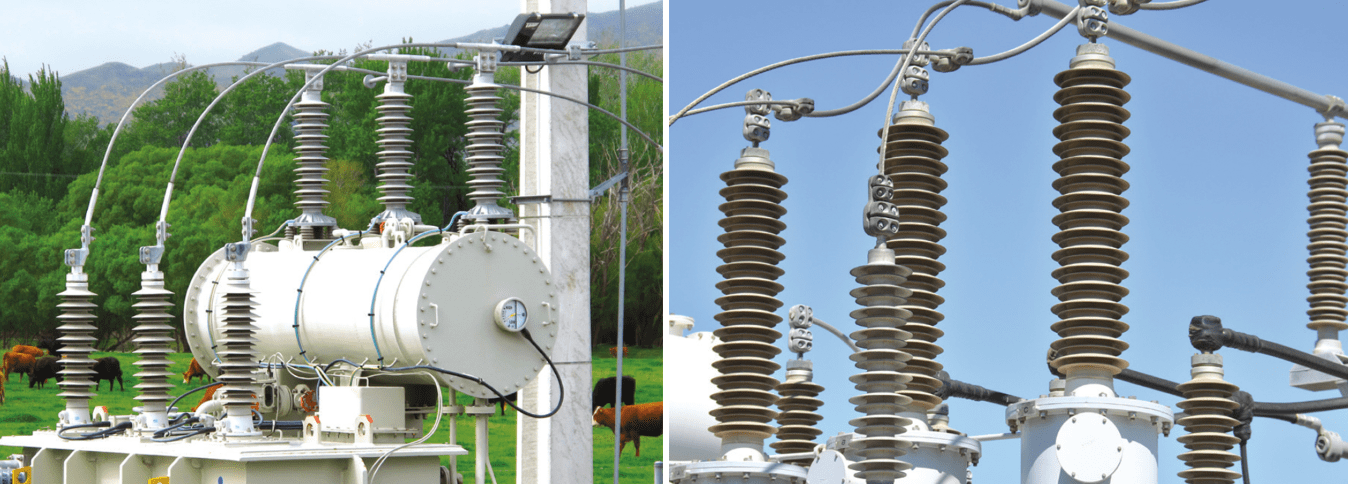

Examples of direct mold polymeric bushings in New Zealand and South Africa.
CLICK TO ENLARGE

Apart from external insulation, there do not appear any major developments in the way RIP cores are produced that might significantly reduce cost. Drying and curing cycles are critical steps and cannot easily be shortened. Nor has the resin that forms the body of the RIP bushing changed significantly. Indeed, rather than looking at changes in the resin body itself, suppliers have typically looked for optimized production logistics. The entire process for manufacturing these bushings is technically demanding, particularly as voltage levels climb, and this has limited the number of qualified suppliers. Whatever practical refinements are still to be made to RIP bushing technology will likely be in such areas as better grading of the condenser layers to make them progressively smaller and more efficient. There may also be improved process control to improve robustness of manufacturing, making it a more repeatable process that results in a consistent product every time. A void the size of a pin hole can result in an entire RIP core being relegated to the scrap heap. There is no possibility to recycle the material since it is a thermo-set resin that cannot subsequently be melted down.

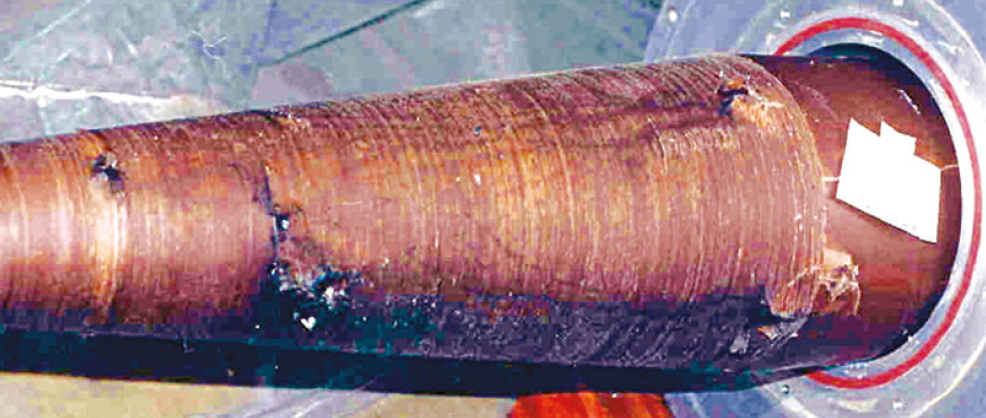

bushings Bushing Technology Review Damage to bushing core from fast transients
Damage to bushing core from fast transients.
CLICK TO ENLARGE

In the end, a purely technical comparison between OIP and RIP bushing technologies may not be the decisive factor in customer preference. Given the role of commercial considerations in purchase decisions, success will go to bushing suppliers who offer the most features for the price, irrespective of technology. These include creepage distance, seismic capability, cantilever strength and total interchangeability for application on transformers or breakers, among others. Similarly, not everyone in the industry is convinced that RIP is always the better choice. This technology comes with disadvantages that must also be considered – from higher price to greater uncertainty about how the core is ageing. This is because, unlike the case for OIP styles, reliable ageing analysis on an RIP bushing cannot be performed in the field. Rather, the unit has to be removed from service and returned to a laboratory for testing. Given the power utility environment, there will always be concern about how bushings are ageing. For this reason, some predict that the tendency for new bushing types may be more oriented toward gas-filled or gas-impregnated units in place of those relying on organic dielectrics.

Advertisement
Desma Advertisement bushings Bushing Technology Review Desma banner Apr 26
bushings Bushing Technology Review Gas insulated bushings with composite housings in Belgium Czech Republic Israel and Korea

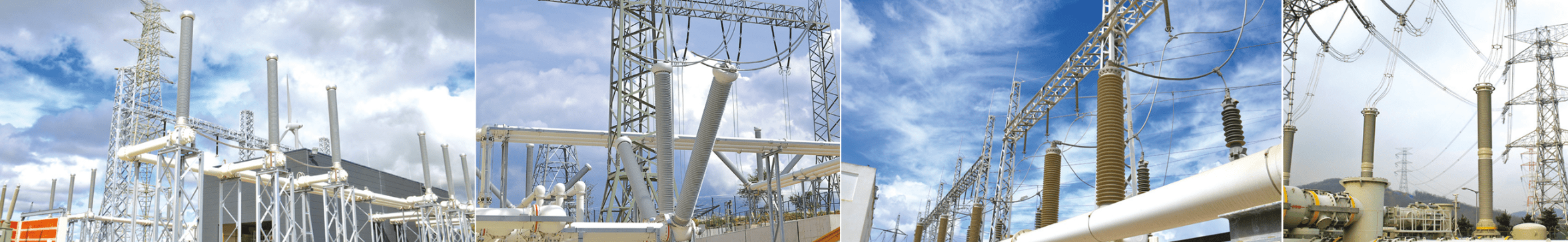

Gas-insulated bushings with composite housings in Belgium, Czech Republic, Israel and Korea.
CLICK TO ENLARGE

In contrast to longstanding OIP, RBP and RIP bushing technologies, more and more designs today make use of pressurized gas, predominantly SF6, as the internal insulation. Metallic screens are used for controlling electric field stress inside the bushing body. As discussed, selection of the external housing of the main insulation in a bushing is one of the key factors affecting service performance and cost. For indoor applications with low contamination and normal humidity, resin-based RIP solutions do not require an additional housing over the epoxy core. This is not the case, however, for either OIP or gas-filled bushings, both of which require porcelain shells or composite insulators. For safety considerations, application of the composite solution is often preferred when considering a gas-insulated unit under high internal pressure.

bushings Bushing Technology Review Dry RIP wall bushings with composite housings increasingly preferred at HVDC converter stations

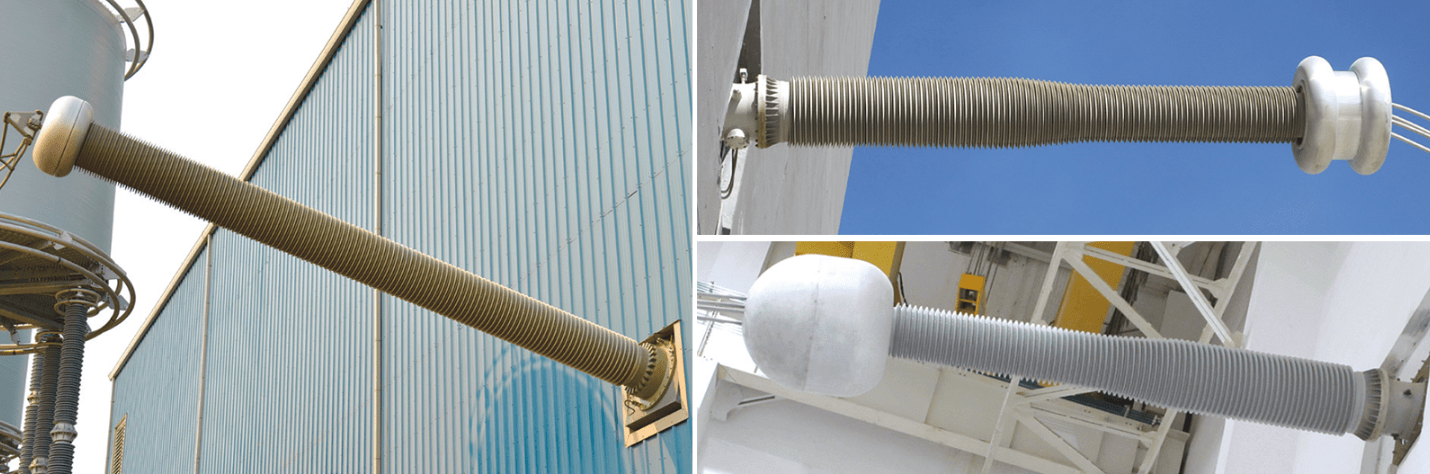

Dry RIP wall bushings with composite housings increasingly preferred at HVDC converter stations.
CLICK TO ENLARGE

Another way to categorize bushing technologies available today relates not to commonalities in design and construction but rather to main areas of application or applicable voltage levels. Probably the most common application of bushings is on power transformers, where the outer parts operate in air, other gas or oil. OIP bushings are currently available up to 1200 kV while capacitance-graded bushings with epoxy resin impregnated insulation have been developed up to 1000 kV. Apart from UHV, another specialty application includes high current bushings (i.e. with operating currents up to 40 kA) used on the low voltage side of transformers and also in generators. One of the key design requirements here is capability to effectively dissipate heat. Another broad group of bushing applications involves connections to gas-insulated switchgear (GIS), most typically as entrance bushings. RIP based condenser cores embedded inside a porcelain housing or composite tubes with silicone sheds both function well in this regard. For the gas part, a discharge resistant surface varnish is necessary to fulfill the requirement of resisting corrosive by-products from decomposition of SF6. In addition, requirements for direct connection between transformer and GIS are becoming increasingly common and special designs of oil-to-gas bushings have been developed for this purpose.

bushings Bushing Technology Review RIP bushings in Canadabottom left China top left and Belgium

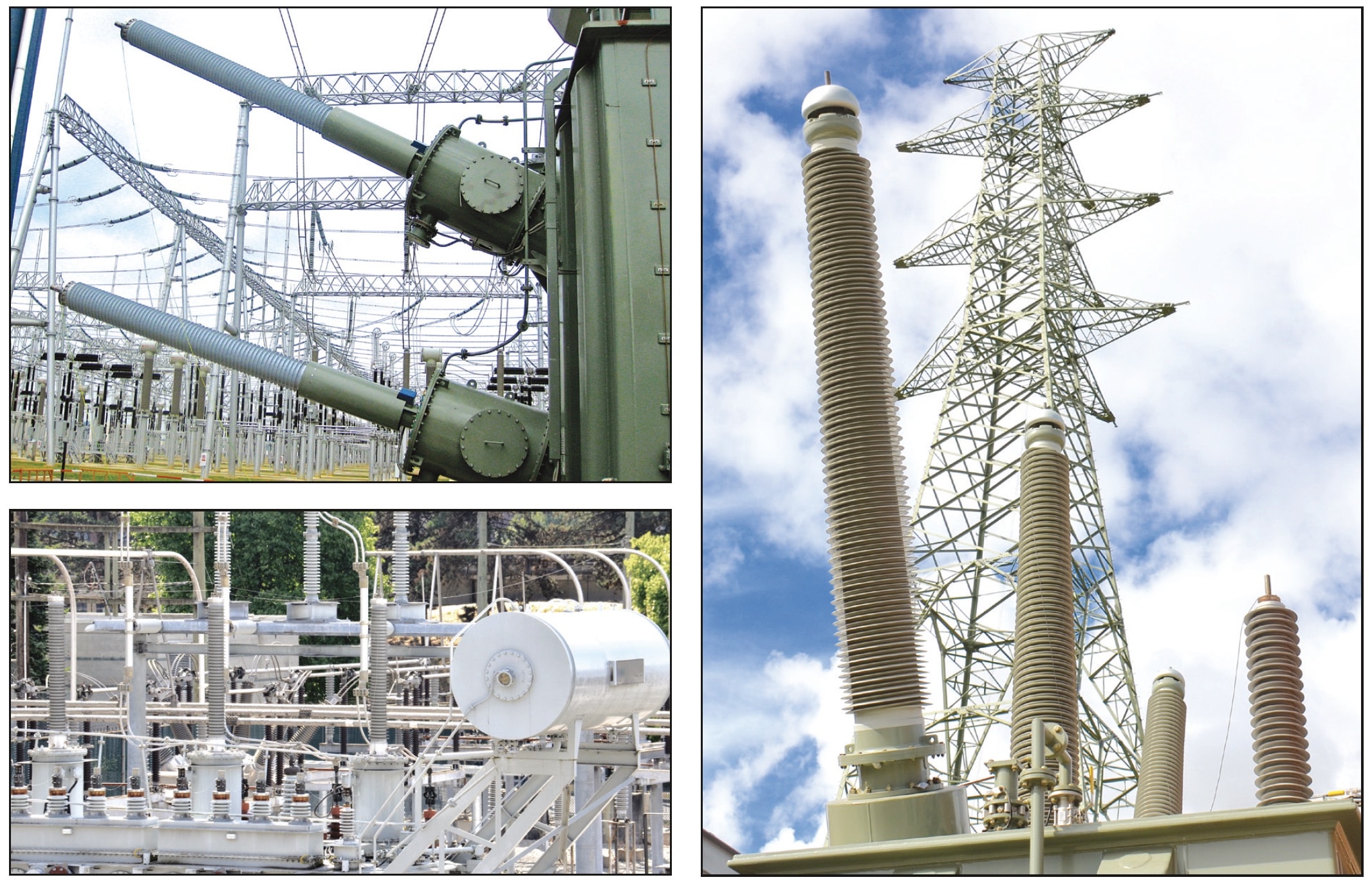

RIP bushings in Canada(bottom left), China (top left) and Belgium.
CLICK TO ENLARGE

Yet another growing application – especially in countries such as China, India, Brazil, South Africa, Norway and Canada, among others – relates to HVDC converter stations. Nowadays, manufacturers offer special bushings for connecting to HVDC transformers, reactors or air-insulated system components up to ± 800 kV DC and higher. These can operate in a transformer oil environment, indoors or for any outdoor connections. As discussed, in contrast to high voltage AC applications, the performance of an HVDC bushing is influenced by the resistive properties of its materials and therefore stress control must be appropriately adjusted. For example, it is of vital importance to control the field in the oil part of an OIP HVDC bushing since the ratio between resistivity of paper and that of oil can be as high as 104. Use of composite insulators in the design of bushing shells for the highest voltage levels provides not only superior flashover performance but also high mechanical withstand. Another issue relates to the dynamics of charging under DC. This remains an important factor to take into account – not only during testing but also in terms of impact on flashover performance, especially during voltage reversals. Yet another factor to consider in UHV bushing applications relates to better understanding ageing of polymeric materials in such an environment.
The tendency towards increased transmission voltage levels and the resulting growth in dimensions of bushings has also made it necessary to better control parameters such as seismic behavior. Historically, several methods have been used to verify seismic capabilities of bushings. These involve static calculations to estimate the forces generated during a seismic event with a given ground acceleration and then comparing this against design capabilities of the equipment. Although IEEE and IEC standards involving shake tables have been used to qualify equipment for seismic areas, past earthquakes indicate that transformers and bushings that passed these tests have still sustained significant damage. To overcome this deficiency, numerical simulations have been introduced and, depending on experience, may need further refinement.

Conclusions

Development in bushing technologies has been impressive if not always obvious. Bushings today might look much like those of the past but there have been subtle refinements and improvements in scale, functionality, performance and cost. Among the driving forces behind this progress have been ongoing efforts by the industry to reduce costs as well as production lead times and standardize bushings to reduce need for users to stock many different types of spares. Moreover, internal competition between OIP and RIP styles has also pushed suppliers to seek optimization in both designs.

bushings Bushing Technology Review Transformer bushings at UHV HVDC substations 1

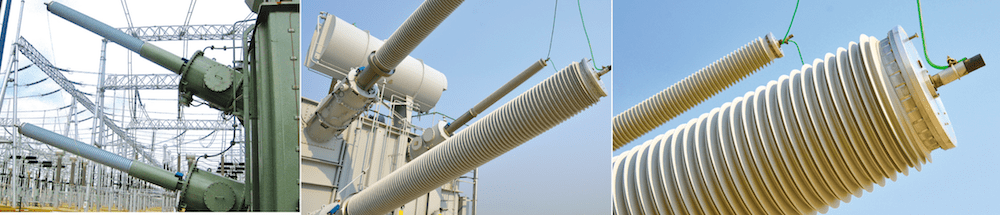

Transformer bushings at UHV & HVDC substations.
CLICK TO ENLARGE

Another driver in development of bushing technology, especially in recent years, has included growing use of HVDC based transmission as well as increases in UHV AC voltage levels. At the same time, environmental demands for developing oil-free as well as low or SF6-free high voltage substations are creating new design challenges for the industry. Today, manufacturers have developed and already oer bushings for voltage levels exceeding 1000 kV and for high rated currents. On the HVDC side, work on developing ± 1000 kV bushings has progressed. RIP bushing technology seems well understood and this allows production of partial discharge-free condenser bodies, even for extremely large units. Increased use of new gas compositions (e.g. N2/SF6) in GIL will require elaborating new design criteria. Finally, growing application of silicone housings in bushing designs has created the need to further study their long-term behavior – especially under combined DC voltage, thermal and mechanical stresses.
