Advances in Monitoring Technology for Surge Arresters

Advertisement
PPC Insulators advances in monitoring technology for surge arresters, inmr, high voltage, data transmission by smartphone, tridelta, electrical networks Advances in Monitoring Technology for Surge Arresters banner530x150 modified

Surge arresters have been installed in electrical networks for decades to protect equipment against overvoltages caused by lightning or switching. While they typically show high reliability, their operating condition must still be monitored to indicate possible malfunction. The market offers devices that can analyze leakage currents and discharge processes and provide information about an arrester’s condition so that any defective unit can be replaced before key assets are placed at risk. At the same time, because technology in electronic devices is moving rapidly, further advances in surge arrester monitoring are now also possible. These include evaluation techniques that could result in a whole new generation of devices that are more accurate, more reliable and more power efficient while also being multifunctional and intelligent.

Though there are different methods to assess the condition of a metal oxide surge arrester, all usually involve evaluation of recorded leakage and impulse currents inside the unit. However, because this does not indicate every possible source of measurement error, it can result in a faulty assessment. Challenges are also posed when implementing a self-sufficient power supply as well as transmitting data gathered to the user. This edited article, based on an INMR WORLD CONGRESS paper by Philipp Raschke of Tridelta Meidensha in Germany, outlines new research on methods to better estimate, transfer and present leakage and impulse current data from metal oxide surge arresters.


Test Measurement Principles

Arrester Leakage Current

The most frequently used technique to assess the condition of an arrester is to evaluate its leakage current. This consists of a dominant capacitive component and a small but essential resistive component. Any change in the current and voltage characteristic of an MO arrester results in negligible change in capacitive amount but significant change in the resistive amount of leakage current. Since electrical ageing of the MO resistors does not lead to distinct change in peak or r.m.s values, the resistive component of leakage current can be used to evaluate an arrester’s condition. For this purpose, the approximate linear relationship between resistive leakage current and third harmonic component of the leakage current spectrum must be applied – a technique standardized as method B2 in IEC 60099-5 (Annex D).

The following steps should be considered to filter the third harmonic of the leakage current. The leakage current is converted to a linear voltage signal by applying a suitable method. The wave of the voltage signal is recorded by means of analog-digital-conversion by a microcontroller and transformed into its harmonic components. This occurs with the help of an FFT algorithm that converts the recorded signal time-efficient into a discrete Fourier spectrum. In order to avoid measurement errors, multiple full periods of signals must be recorded so that the Fourier transformation can be implemented. Here, a software-based zero-crossing detection has proven itself useful. The resulting spectrum contains two elementary values for continuous utilization:

• I1t –  first harmonic component of total leakage current
• I3t –  third harmonic component of total leakage current

To verify this measurement method, an experimental arrangement with a regulated high voltage transformer and a surge arrester was built. A prototype of the electronic measuring equipment and a calibrated power analyzer were integrated in the ground connection of the arrester. As seen in Fig. 1, the characteristic curve shows small errors in peak current and third harmonic content in terms of accurate values.

harmonic content error advances in monitoring technology for surge arresters, inmr, high voltage, data transmission by smartphone, tridelta, electrical networks Advances in Monitoring Technology for Surge Arresters Untitled
Fig. 1: Verification of leakage current measuring technique

Measurement method B2 requires additional compensation of the harmonic components in leakage current caused by the harmonic content in network voltage. Without compensation, this can result in serious errors. Thus, the harmonic content of the network must also be estimated. In this case, a field probe records the electric field of the transmission network and converts this into a voltage signal. Using the microcontroller, the voltage signal wave is sampled through AD conversion and then transformed into its spectrum by means of FFT. Two continuous elementary values can be obtained using this process:

Advertisement
advances in monitoring technology for surge arresters, inmr, high voltage, data transmission by smartphone, tridelta, electrical networks Advances in Monitoring Technology for Surge Arresters CSL Advertisement e1477326535980

• V1p –  first harmonic component of the field probe voltage
• V3p –  third harmonic component of the field probe voltage

Correction values for the compensation of the third harmonic component of the network voltage are calculated with the ratio of the third harmonic component of field probe voltage and the first harmonic component of the leakage current. A factor k corrects the influence of the phases of the surrounding transmission lines. The correct third harmonic component of the leakage current I3r can be determined with Formula 1:

harmonic components advances in monitoring technology for surge arresters, inmr, high voltage, data transmission by smartphone, tridelta, electrical networks Advances in Monitoring Technology for Surge Arresters Screen Shot 2016 03 04 at 11



Two factors that cannot be neglected are (a) the influence of temperature fluctuation (see Fig. 2) and (b) the influence of network voltage fluctuation (see Fig. 3). Both can cause measurement uncertainties when calculating leakage current data. A correction of network voltage fluctuation is only possible if network voltage is known. This cannot be measured by the monitoring device and therefore a periodic and automatic operative measurement is not available. Additionally, information about current network voltage should be noted in terms of a single measurement by the operator.

Advances in Monitoring Technology for Surge Arresters advances in monitoring technology for surge arresters, inmr, high voltage, data transmission by smartphone, tridelta, electrical networks Advances in Monitoring Technology for Surge Arresters Untitled1

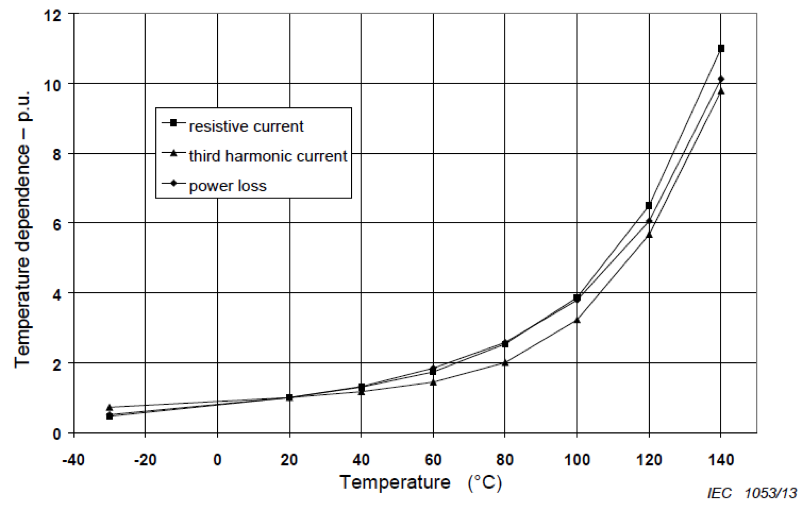

Fig. 2: Influence of temperature fluctuation on leakage current.
Advances in Monitoring Technology for Surge Arresters advances in monitoring technology for surge arresters, inmr, high voltage, data transmission by smartphone, tridelta, electrical networks Advances in Monitoring Technology for Surge Arresters Untitled33
Fig. 3: Influence of voltage fluctuation on leakage current.



Advertisement
BPG International Advertisement advances in monitoring technology for surge arresters, inmr, high voltage, data transmission by smartphone, tridelta, electrical networks Advances in Monitoring Technology for Surge Arresters BPG logo





















The ambient temperature of the arrester is calculated automatically for every leakage dataset. Measurement errors that occur through the fluctuation of the ambient temperature can be corrected. Correction values are specified for each arrester and are provided by the supplier for automatic correction, simply by choosing the actual arrester being used.

Recording Impulse Currents

Generally speaking, in order to evaluate the condition of an arrester, the number of discharge incidents and amplitude measurements of the discharge current have to be taken into account. Occurring currents, voltage amplitudes and electric fields make high demand on electronic measuring devices. For this reason, the impulse current must be converted into a measurable voltage range by means of a specified method.

For the impulse measurement, a current transformer should be applied to convert the current impulse into voltage impulse. An additional filter makes it possible for the signal to be fitted into a suitable voltage signal, which can be measured by the microcontroller. Due to the fact that the appearance of a discharge process is a stochastic occurrence and the electronic device is expected to be power-efficient, the occurring voltage impulse is used to retrieve the microcontroller from its power saving mode into running mode. Current amplitude can be estimated within microseconds by means of AD-conversion in the microcontroller. A ‘surge counter function’ can be realized by adding the numbers of measured impulse currents.

Site-Independent Power Supply

In many cases, a suitable power supply for monitoring devices is not available at the installation site. Thus, a self-sufficient power supply is required for the monitoring device. Usually monitoring devices are equipped with solar cells that supply power throughout the day. In areas where the sun does not provide sufficient light, however, for example in extreme latitudes, stored solar energy is not sufficient for supplying devices continuously. Solar cells can also become contaminated, which leads to system failure. Batteries can be used to bridge gaps in power supply but have the disadvantage of needing to be replaced by the operator, usually at unknown intervals.

In order to overcome these problems, Tridelta Meidensha carried out research on a power supply system that uses leakage current of the surge arrester as the sole energy source. Extracting power from such a small number of microampere turned out to be problematic, but was finally achieved by using a micro-power harvester. A harvester is an electronic circuit that gathers very small energy quantities and converts them to a useful charge. In this case, a harvester capable of converting the leakage currents down to 250 µA was utilized so that the converted energy could be gradually loaded onto a capacitor. Harvesting power from leakage current requires a rectifier circuit.

The capacitor is fully charged after a few hours. The charging voltage is regulated by the power harvester and maintained at a level viable for the use of a microcontroller. Repeated full charging is not necessary due to the fact that the device has ultra-low current consumption despite its high performance level. This system continues to power the device even after network voltage has been disconnected. System function can therefore be maintained over many days with no battery change necessary. This is true even at extreme latitudes and for indoor applications as well.

Advertisement
advances in monitoring technology for surge arresters, inmr, high voltage, data transmission by smartphone, tridelta, electrical networks Advances in Monitoring Technology for Surge Arresters INTEGRATED Engineering Software Mar 11
Advances in Monitoring Technology for Surge Arresters advances in monitoring technology for surge arresters, inmr, high voltage, data transmission by smartphone, tridelta, electrical networks Advances in Monitoring Technology for Surge Arresters Untitled11

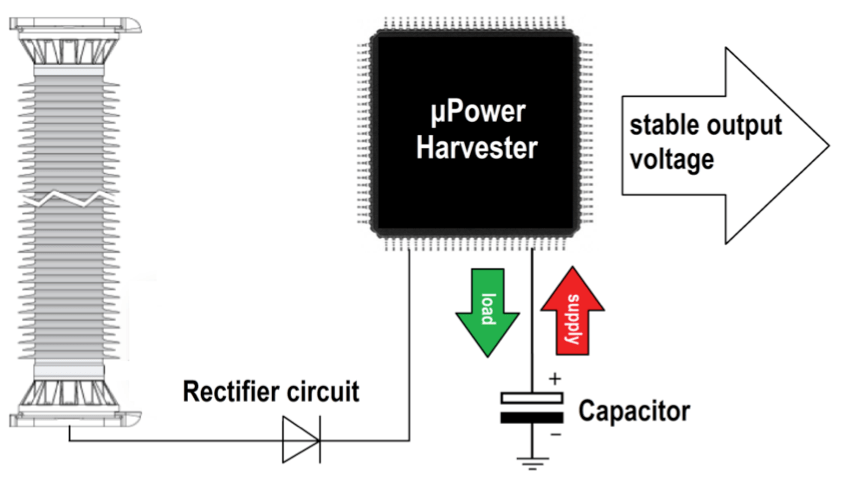

Fig. 4: Power supply schematic.
Advances in Monitoring Technology for Surge Arresters advances in monitoring technology for surge arresters, inmr, high voltage, data transmission by smartphone, tridelta, electrical networks Advances in Monitoring Technology for Surge Arresters Untitled111

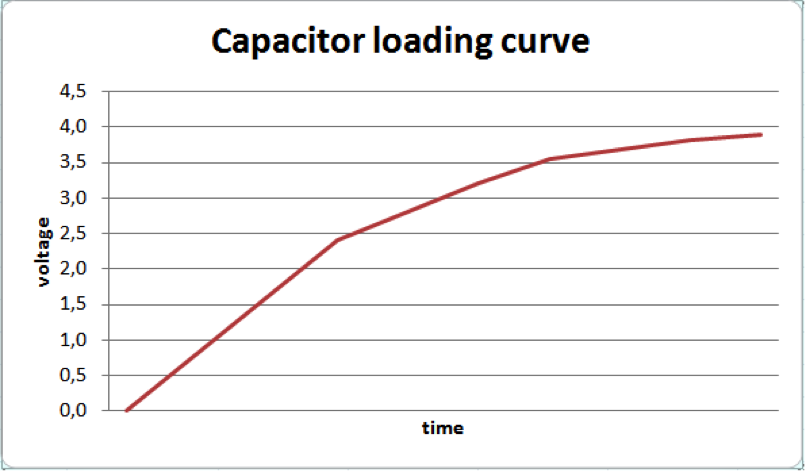

Fig. 5: Loading cycle of capacitor through harvester.





















In order to test the function of power supply, a special arrangement was built according to Fig. 4. The power harvester circuitry was switched to it with an output load similar to the consumption of the microcontroller. The charging process was tested with a capacitor with the capacity of 1F and with an arrester leakage current of 350 µA r.m.s. supplying the harvester. Fig. 5 illustrates the charging of the capacitor by means of the harvester over a period of several hours. The loading process was completed after 6 hours at 350 µA r.m.s. and with a load of 10 µA.

Wireless Data Transmission by Smartphone

Monitoring devices for surge arresters have to be capable of recording leakage current data and impulse current data over a particular period of time (e.g. over a year). Because of this, measurement of leakage current is carried out at pre-determined intervals. The device transmits the data together with impulse current records. For later analysis of data, the monitoring device is able to provide an interface through which the stored data can be conveniently and freely transferred without endangering the user. To this end, suppliers of surge arrester monitoring systems offer transmission systems that are able to transfer data to operators or control rooms by wire. Clearly, a well-developed data structure is required. Other systems work with radio transmission, which enables wireless data reception. However, such a method is highly sensitive to the energy reserves of the monitoring device. Furthermore, many countries require radio authorization.

Advertisement
Yizumi Ad advances in monitoring technology for surge arresters, inmr, high voltage, data transmission by smartphone, tridelta, electrical networks Advances in Monitoring Technology for Surge Arresters INMR YIZUMI July edition

The aim of this research project was therefore to develop a data transmission system that enables convenient and reliable transfer of data without depleting the energy reserve and that allows for safe contact distance. The following concept has been developed with the state-of-the-art technology, depicted in Fig. 6:

Advances in Monitoring Technology for Surge Arresters advances in monitoring technology for surge arresters, inmr, high voltage, data transmission by smartphone, tridelta, electrical networks Advances in Monitoring Technology for Surge Arresters Untitled332

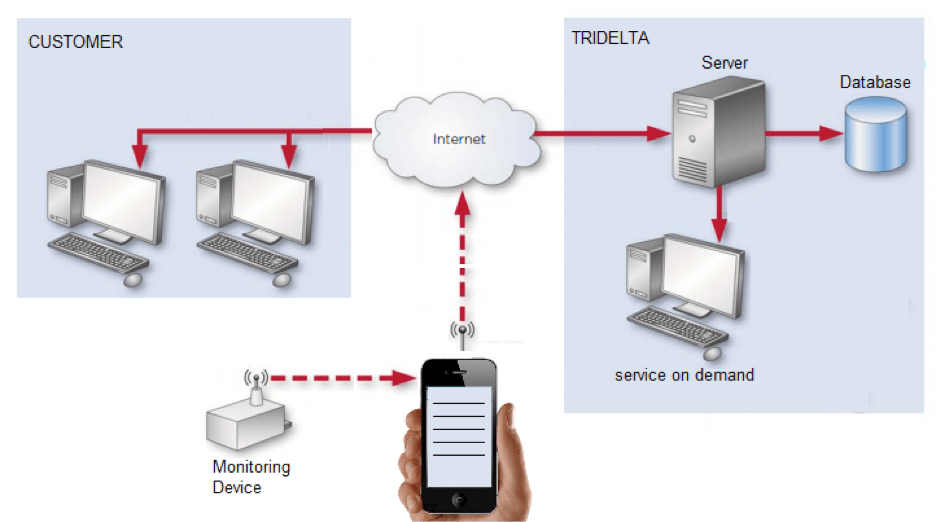

Fig. 6: Data transmission concept.

When recording impulse and leakage currents over a long period of time, the monitoring device has to be installed on the arrester-earth. A standard smartphone with NFC-function is used as the main device for data transmission. NFC (Near Field Communication) is a radio standard that is energy efficient and can transmit data over a few centimeters. The monitoring device does not require its own power for this transmission. Communication with the monitoring device takes place by means of a smartphone app. The creation of a data connection between the monitoring device and smartphone is established by placing the smartphone on or near the transponder pad, which is connected to the monitoring device with a data cable of variable length. This makes it possible to transfer data with sufficient safety distance.

The arrester monitoring device is in running order once the following arrester have been entered into the smartphone app:

• serial number of the surge arrester
• optional desired measuring intervals for leakage current measurement (preset daily)
• optional type designation
• optional arrester location
• additional parameters of arresters from other manufacturers.

The monitoring device is adjusted after placing the smartphone on the transponder with the chosen measuring interval as well as the current time. The serial number and position data are automatically sent from the app to the server. A new entry for the arrester is created in the data bank. After set-up, the monitoring device initiates periodic leakage current measurements, depending on the pre-set measurement intervals (e.g. once a day at 11:00). Whenever the estimated data is downloaded, the total of recorded leakage current entries as well as the estimated impulse currents since the previous reading are transferred to the smartphone.

Advertisement
Desma Advertisement advances in monitoring technology for surge arresters, inmr, high voltage, data transmission by smartphone, tridelta, electrical networks Advances in Monitoring Technology for Surge Arresters Desma banner Apr 26

Each record is marked with the date and time it was measured. Each record of leakage current contains a measured value of ambient temperature for compensation of temperature influence. An additional function allows input of current network voltage and makes it possible to compensate influences of network voltage fluctuation on measured leakage current value. The data that is transferred to the smartphone is automatically uploaded to the server and stored in an entry blank previously created for the arrester in the database. From this point on, uploaded data can be viewed, pending the user’s successful login.

There are several advantages to this method:

• trouble-free application of new monitoring devices
• fast wireless reading of measurement data
• zero transmission disruptions
• no radio approval necessary
• easy data transmission through internet to a server.

Presenting Arrester Data on the Web

Data that is transferred from the monitoring device to the server should be presented to the operator in a clear and readable manner. This can be achieved using a website that has access to the database and displays the information graphically (see concept shown in Fig. 7).

Advances in Monitoring Technology for Surge Arresters advances in monitoring technology for surge arresters, inmr, high voltage, data transmission by smartphone, tridelta, electrical networks Advances in Monitoring Technology for Surge Arresters 111
Fig. 7: Concept for data presentation.

Users gain access to the website by entering login data that is matched with a prior user registration. In this way, multiple users can simultaneously download data from the monitoring device with their own smartphones and upload them to the server. The data is kept under this user account. Multiple users can also simultaneously access information in the database and on the website. Each arrester is identified by a unique ID that has been provided for every arrester in the database. The designation type is automatically available, pending the existence of the supplier’s serial number previously assigned when the monitoring device was set up. Correction factors for voltage and temperature fluctuation are also available. Using these, leakage current data can be automatically corrected.

Advances in Monitoring Technology for Surge Arresters advances in monitoring technology for surge arresters, inmr, high voltage, data transmission by smartphone, tridelta, electrical networks Advances in Monitoring Technology for Surge Arresters Untitled111111

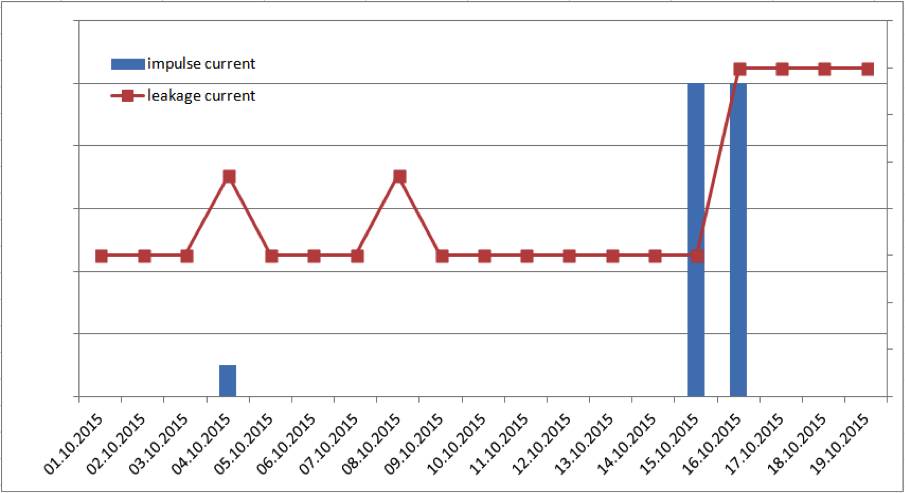

Fig. 8: Presentation of impulse and leakage current data.

Data can be displayed in calendar form; this is possible because impulse and leakage current data are related to date values. In this way, it is possible to show a leakage current time curve and to project trends: a continuous rising of the curve of the leakage current may indicate degradation of varistors or penetration of moisture into the arrester. The parallel consideration of leakage current and impulse current results are especially well suited for diagnosing degradation appearances on the arrester caused by the impulse current. Fig. 8 shows an example of how two direct impacts, each with 100 kA, cause damage to the surge arrester and result in continuously high leakage current values.



There are several advantages to this method:

• individual organization of device data
• automatic correction of voltage and temperature fluctuation
• visibility of arrester data to all members with corresponding access level
• no installation of PC software operating system necessary
• ‘service on demand by the supplier’ – i.e. the immediate resolution of problems raised by any abnormal data.

Conclusions

Today’s technology makes it possible to develop advanced monitoring devices for surge arresters. The potential for application and improvement in this area is considerable. In the case of Tridelta Meidensha, the device powers itself with arrester leakage current and does not rely on any other energy sources. Initial operation and data exchange can take place on a smartphone. Arrester data can be gathered speedily and simply by establishing contact between a smartphone and a transponder. Simply entering an arrester’s serial number makes it possible to automatically store all future measurements made on the unit. Such data are immediately available online. Finally, a website gives every registered user access to the stored information, at any time or place.
